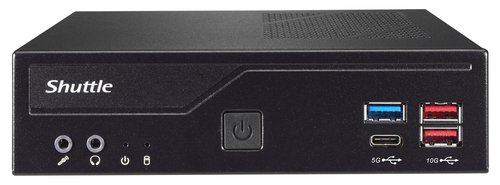

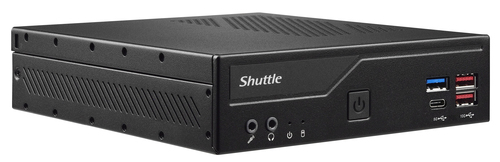

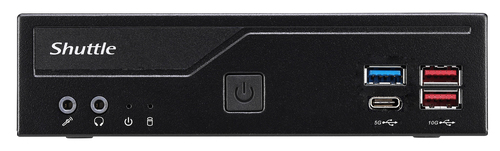

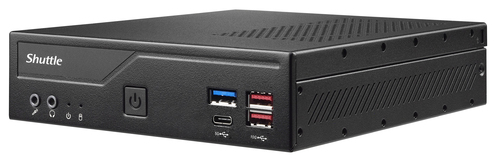

Shuttle Slim PC DH670V2 , S1700, 2x HDMI, 2x DP
Shuttle

Slim PC DH670V2 , S1700, 2x HDMI, 2x DP

2x 2.5G LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA

Model DH670V2EAN 887993005942

74 specifications
  • TypeMini PC barebone
  • OSNo
  • Weight1.3 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
Mini PC barebone
OS
No
Weight
1.3 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
DH670V2
Part number
DH670V2
EAN / UPC
887993005942
Also known as
Shuttle Slim PC DH670V2 , S1700, 2x HDMI, 2x DP , 2x 2.5G LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA

Specifications

74 specifications in 17 groups

Processor

Built-in processorNo
Processor manufacturerIntel

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2133,2400,2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
NVMeYes
Number of storage drives supported2

Graphics

On-board graphics cardYes
Graphics card familyIntel

Performance

Motherboard chipsetIntel H670
Processor socketLGA 1700
Number of processors supported1
BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity2
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity2
DC-in jackYes

Design

Chassis type1.35L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Housing materialMetal
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 75 mm
Product typeMini PC barebone
SafetyETL, CB, BSMI

Sustainability

Sustainability certificatesENERGY STAR, ErP
Sustainability complianceYes

Technical details

Compliance certificatesBSMI, CB, CE, ETL, Federal Communications Commission (FCC), RoHS

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84733080

Power

Power supply typeExternal AC adapter
AC adapter output current6.32 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply120 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width190 mm
Depth165 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
