Shuttle Slim PC DH670 , S1700, 2x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB
Shuttle

Slim PC DH670 , S1700, 2x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB

1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA

Model DH670Part no. PIB-DH670001EAN 887993004983

72 specifications
  • TypeMini PC barebone
  • OSNo
  • Weight1.3 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
Mini PC barebone
OS
No
Weight
1.3 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
DH670
Part number
PIB-DH670001
EAN / UPC
887993004983
Also known as
Shuttle Slim PC DH670 , S1700, 2x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA

Specifications

72 specifications in 16 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2133,2400,2666,2933,3200 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfaceM.2, Serial ATA III
Number of storage drives supported2
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Graphics card familyIntel

Performance

Motherboard chipsetIntel H670
Processor socketLGA 1700
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels2.0 channels

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo

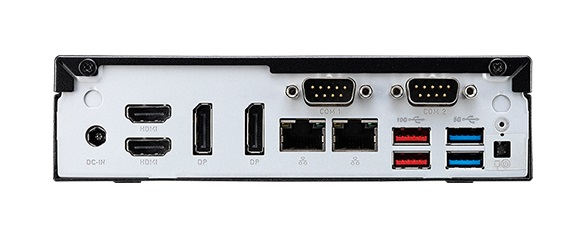

Ports & interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity2
HDMI version2.0b
DisplayPorts quantity2
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity2
DC-in jackYes

Design

Chassis type1.3L sized PC
Product colourBlack

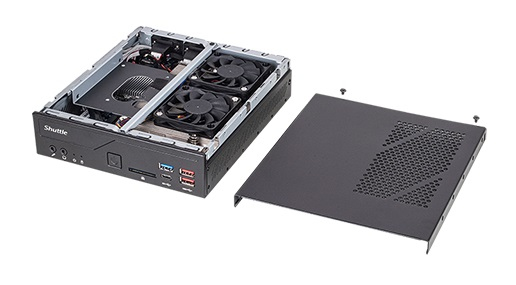

Cooling typeActive
LED indicatorsHDD, Power
Housing materialMetal
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone

Sustainability

Sustainability certificatesENERGY STAR, ErP

Technical details

Compliance certificatesRoHS

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Power

Power supply typeExternal AC adapter
AC adapter output current6.32 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply120 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width190 mm
Depth165 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
