Shuttle Slim PC DH470C , S1200, 1x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB
Shuttle

Slim PC DH470C , S1200, 1x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB

1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA

Model DH470CPart no. PIB-DH470011EAN 887993003689

72 specifications
  • TypeMini PC barebone
  • OSNo
  • Weight1.3 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
Mini PC barebone
OS
No
Weight
1.3 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
DH470C
Part number
PIB-DH470011
EAN / UPC
887993003689, 887993004938, 887993005140
Also known as
Shuttle Slim PC DH470C , S1200, 1x HDMI, 2x DP , 2x LAN, 2x COM, 8x USB, 1x 2.5", 2x M.2, 24/7 permanent operation, incl. VESA

Specifications

72 specifications in 15 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2666,2933 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
SSD form factor2.5"
Storage drive interfaceM.2, Serial ATA III
Number of storage drives supported2
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes

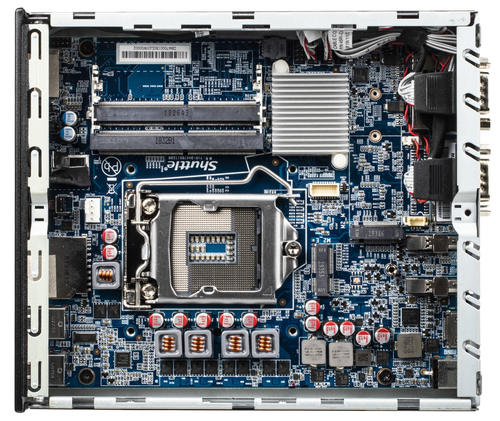

Performance

Motherboard chipsetIntel H470
Processor socketLGA 1200 (Socket H5)
Number of processors supported1
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels5.1 channels
Audio chipRealtek ALC662

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I210-AT

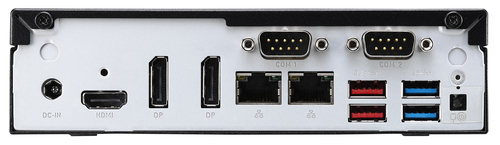

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0a
VGA (D-Sub) ports quantity0
DisplayPorts quantity2
DisplayPort version1.2
Microphone inYes
Ethernet LAN (RJ-45) ports2
Serial ports quantity2
DC-in jackYes

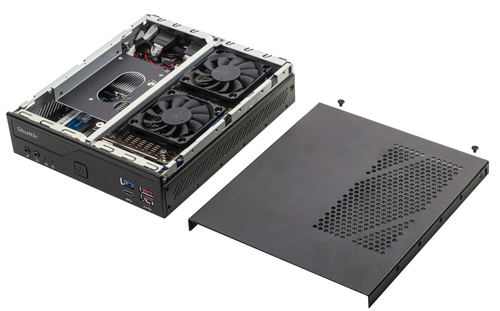

Design

Chassis type1.35L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 75 mm
Product typeMini PC barebone

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84713000

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width165 mm
Depth190 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
