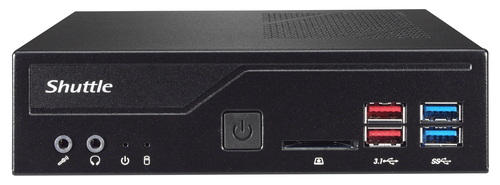

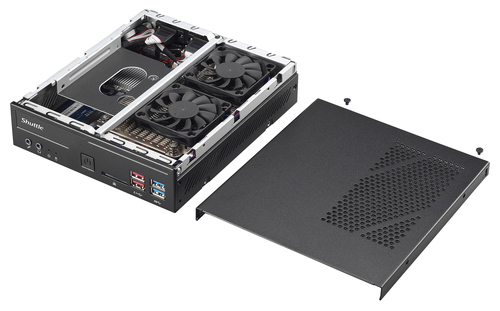

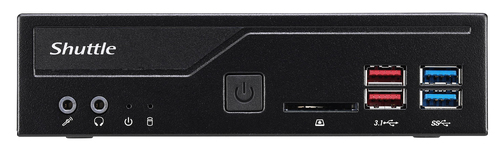

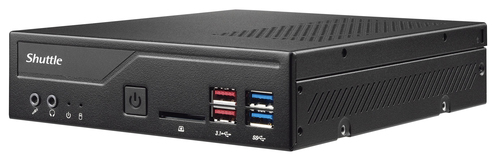

Shuttle XPС slim DH370

Shuttle XPС slim DH370

1.3L sized PC Black Intel® H370 LGA 1151 (Socket H4)

Model DH370Part no. PIB-DH370001EAN 887993001609

63 specifications
  • TypeMini PC barebone
  • OSNo
  • Weight1.3 kg
  • ColourBlack
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
See all specifications

Overview

Type
Mini PC barebone
OS
No
Weight
1.3 kg
Colour
Black
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Brand
Shuttle
Model
DH370
Part number
PIB-DH370001
EAN / UPC
887993001609
Also known as
Shuttle XPС slim DH370 1.3L sized PC Black Intel® H370 LGA 1151 (Socket H4)

Specifications

63 specifications in 15 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory32 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400,2666 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
Storage drive interfaceSerial ATA III
Number of storage drives supported1
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardNo

Performance

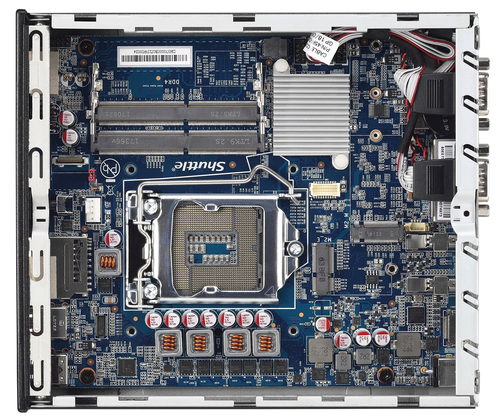

Motherboard chipsetIntel® H370
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
BIOS typeUEFI AMI
Audio output channels5.1 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I211

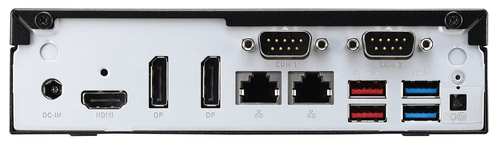

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity1
VGA (D-Sub) ports quantity0
DisplayPorts quantity2
Microphone inYes
Headphone outputs1
Serial ports quantity2
DC-in jackYes

Design

Chassis type1.3L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Product typeMini PC barebone

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84713000

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width190 mm
Depth165 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes

Other features

Country of originChina
