Shuttle XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation
Shuttle

XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation

Model DH32U5EAN 887993003337

88 specifications
  • ProcessorIntel® Core™ i5
  • TypeMini PC barebone
  • OSNo
  • Weight1.3 kg
  • ColourBlack
  • Built-in processorYes
See all specifications

Overview

Processor
Intel® Core™ i5
Type
Mini PC barebone
OS
No
Weight
1.3 kg
Colour
Black
Built-in processor
Yes
Brand
Shuttle
Model
DH32U5
Part number
DH32U5
EAN / UPC
887993003337, 887993004464
Also known as
Shuttle XPC slim Barebone DH32U5, Intel i5-1135G7, 4x HDMI 2.0b 2x LAN, 2x COM, incl. VESA 24/7 permanent operation

Specifications

88 specifications in 18 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation11th gen Intel® Core™ i5
Processor modeli5-1135G7
Processor cores4
Processor threads8
Processor boost frequency4.2 GHz
Processor lithography10 nm
Processor cache8 MB
CPU configuration (max)1

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds3200 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Storage drive interfacePCI Express, Serial ATA III
Number of storage drives supported2
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics
Maximum resolution4096 x 2304 pixels

Performance

Motherboard chipsetIntel SoC
Number of processors supported1
BIOS typeUEFI AMI
Trusted Platform Module (TPM) version2.0
Audio output channels5.1 channels

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel® I211

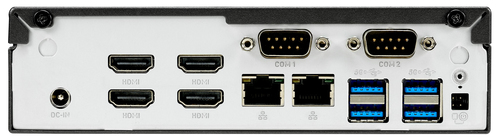

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity4
HDMI version2.0b
VGA (D-Sub) ports quantity0
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity2
DC-in jackYes

Expansion slots

PCI Express slots version4.0
Number of M.2 (M) slots1

Design

Chassis type1.35L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Housing materialMetal
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Product typeMini PC barebone

Processor special features

Embedded options availableNo
Idle StatesYes
Intel Stable Image Platform Program (SIPP)No
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84713000

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width190 mm
Depth165 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Drivers includedYes

Other features

Country of originChina
