Shuttle XPС slim DH310S
Shuttle

XPС slim DH310S

1.3L sized PC Black Intel® H310 LGA 1151 (Socket H4)

Model DH310SPart no. PIB-DH310S001EAN 818214552136

72 specifications
  • Weight1.3 kg
  • ColourBlack
  • Built-in processorNo
  • Memory slots typeSO-DIMM
  • Supported storage drive typesHDD & SSD
  • Motherboard chipsetIntel® H310
See all specifications

Overview

Weight
1.3 kg
Colour
Black
Built-in processor
No
Memory slots type
SO-DIMM
Supported storage drive types
HDD & SSD
Motherboard chipset
Intel® H310
Brand
Shuttle
Model
DH310S
Part number
PIB-DH310S001
EAN / UPC
818214552136, 887993001708
Also known as
Shuttle XPС slim DH310S 1.3L sized PC Black Intel® H310 LGA 1151 (Socket H4)

Specifications

72 specifications in 18 groups

Processor

Built-in processorNo

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory32 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400,2666 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
SSD form factor2.5"
Storage drive interfaceSerial ATA
Number of storage drives supported2
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardNo

Performance

Motherboard chipsetIntel® H310
Processor socketLGA 1151 (Socket H4)
Number of processors supported1
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®
BIOS typeUEFI AMI
Audio output channels5.1 channels
Audio chipRealtek ALC662

Network

Ethernet LANYes
Wi-FiNo
LAN controllerRealtek RTL8111H

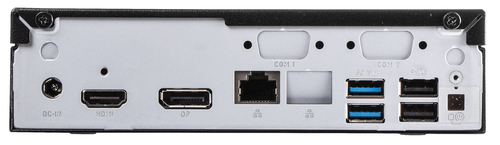

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version1.4b
DisplayPorts quantity1
DisplayPort version1.2
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1

Expansion slots

Number of M.2 (M) slots1

Design

Chassis type1.3L sized PC
Product colourBlack
Cooling typeActive
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
SafetyETL, CB, BSMI

Sustainability

Sustainability certificatesENERGY STAR

Software

Windows operating systems supportedWindows 10
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84733080

Certificates

CertificationFCC, CE, BSMI, RCM, VCCI, RoHS, ErP

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 50 °C

Weight & dimensions

Width190 mm
Depth165 mm
Height43 mm
Weight1.3 kg
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
Display includedNo
Mouse includedNo
Keyboard includedNo

Other features

Country of originChina
