Shuttle XPС slim DH02U3 PC/workstation barebone

1.3L sized PC Black i3-7100U Intel SoC BGA 1356 2.4 GHz

Model DH02U3EAN 887993001449

108 specifications

ProcessorIntel® Core™ i3
GraphicsNVIDIA® GeForce® GTX 1050
TypeMini PC barebone
OSNo
Weight1.03 kg
ColourBlack

See all specifications

Overview

Processor: Intel® Core™ i3
Graphics: NVIDIA® GeForce® GTX 1050
Type: Mini PC barebone
OS: No
Weight: 1.03 kg
Colour: Black

Brand: Shuttle
Category: PC/Workstation Barebones
Model: DH02U3
Part number: DH02U3
EAN / UPC: 887993001449
Also known as: Shuttle XPС slim DH02U3 PC/workstation barebone 1.3L sized PC Black i3-7100U Intel SoC BGA 1356 2.4 GHz

Specifications

108 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	7th gen Intel® Core™ i3
Processor model	i3-7100U
Processor cores	2
Processor threads	4
Processor frequency	2.4 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	15 W
CPU configuration (max)	1
Processor codename	Kaby Lake

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	32 GB
Memory channels	Dual-channel
Memory voltage	1.2 V
Supported memory clock speeds	2133 MHz
Supported memory types	DDR4-SDRAM
Non-ECC	Yes

Storage

Specification	Value
Supported storage drive types	HDD & SSD
Storage drive sizes supported	2.5"
Number of storage drives supported	1

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	NVIDIA
Discrete graphics card model	NVIDIA® GeForce® GTX 1050
Graphics card memory type	GDDR5
Maximum graphics card memory	4096 MB
Number of displays supported	4

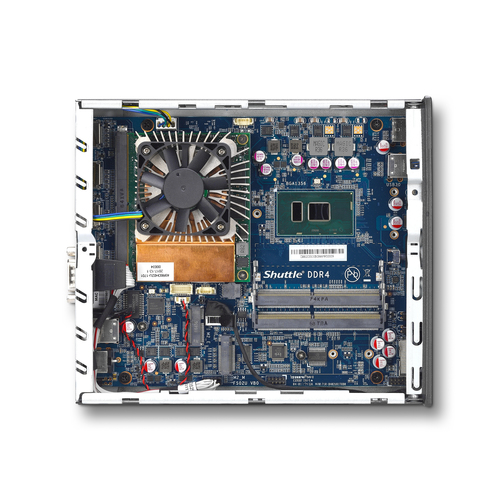

Performance

Specification	Value
Motherboard chipset	Intel SoC
Processor socket	BGA 1356
Number of processors supported	1
BIOS type	AMI
Audio chip	Realtek ALC662

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
LAN controller	Intel® I211

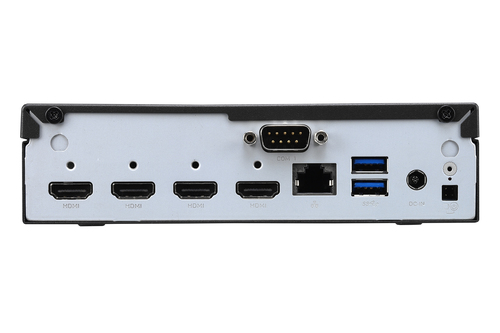

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	4
HDMI version	2.0b
VGA (D-Sub) ports quantity	1
Microphone in	Yes
Headphone outputs	1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	3.0
Number of M.2 (M) slots	1
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1

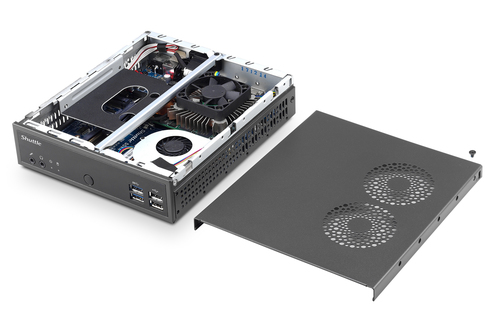

Design

Specification	Value
Chassis type	1.3L sized PC
Product colour	Black
Cooling type	Active
On/off switch	Yes
LED indicators	HDD, Power
Cable lock slot	Yes
Cable lock slot type	Kensington
VESA mounting	Yes
Product type	Mini PC barebone

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Windows operating systems supported	Windows 10
Linux operating systems supported	Yes
Operating system installed	No

Power

Specification	Value
Power supply type	External AC adapter
AC adapter output current	6.32 A
AC adapter output voltage	19 V
AC input frequency	50 - 60 Hz
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	120 W

Operational conditions

Specification	Value
Operating relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	0 - 50 °C

Weight & dimensions

Specification	Value
Width	165 mm
Depth	190 mm
Height	43 mm
Weight	1.03 kg
Package weight	2.2 kg

Packaging content

Specification	Value
Power cord included	Yes
AC adapter included	Yes
Quick start guide	Yes
Drivers included	Yes

Other features

Specification	Value
Processor ARK ID	95442
