Shuttle XPC slim Barebone DH02U, Intel Celeron 3865U, 4x HDMI 2.0b 1x LAN, 1x COM, incl. VESA 24/7 permanent operation
Model DH02UEAN 887993001432
110 specifications
- ProcessorIntel® Celeron®
- GraphicsNVIDIA® GeForce® GTX 1050
- TypeMini PC barebone
- Weight1.03 kg
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Celeron®
- Graphics
- NVIDIA® GeForce® GTX 1050
- Type
- Mini PC barebone
- Weight
- 1.03 kg
- Colour
- Black
- Built-in processor
- Yes
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DH02U
- Part number
- DH02U
- EAN / UPC
- 887993001432
- Also known as
- Shuttle XPC slim Barebone DH02U, Intel Celeron 3865U, 4x HDMI 2.0b 1x LAN, 1x COM, incl. VESA 24/7 permanent operation
Specifications
110 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | 3865U |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 14 nm |
| L2 cache | 0.5 MB |
| L3 cache | 2 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.2 V |
| Supported memory clock speeds | 2133 MHz |
| Supported memory types | DDR4-SDRAM |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA, Serial ATA III |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1050 |
| Graphics card memory type | GDDR5 |
| Maximum graphics card memory | 4000 MB |
| Maximum resolution | 4096 x 2160 pixels |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1356 |
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| Watch Dog function | Yes |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio system | Realtek ALC 662 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel® I211 |

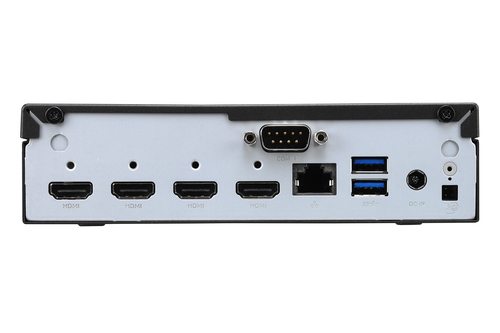

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 4 |
| HDMI version | 2.0b |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| Number of M.2 (M) slots | 2 |
| PCI Express configurations | 1x2+2x1, 1x4, 2x2, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | HDD, Power |
| Housing material | Metal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 75 mm |
| Product type | Mini PC barebone |
| Safety | CB, BSMI, ETL |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
| Linux operating systems supported | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, BSMI, VCCI, RCM, RoHS, ErP |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 6.32 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 1.03 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
