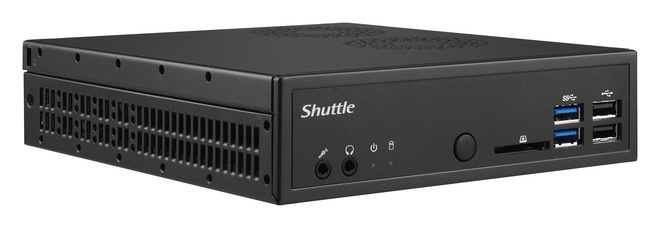

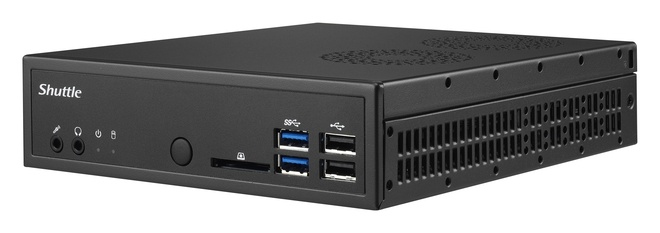

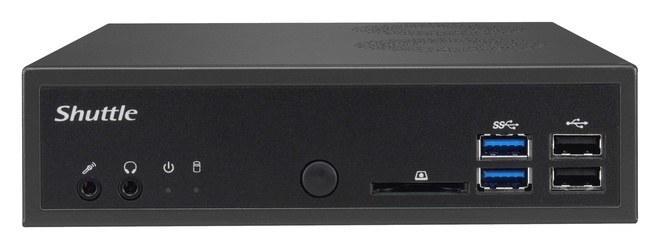

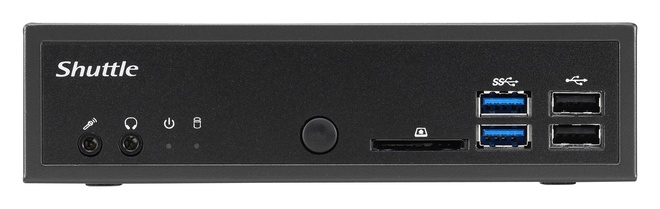

DH 110
Model DH 110Part no. DH1100-Q28017
96 specifications
- ProcessorIntel® Core™ i3
- Weight1.3 kg
- ColourBlack
- Built-in processorYes
- Supported storage drive typesHDD & SSD
- Motherboard chipsetIntel® H110
Overview
- Processor
- Intel® Core™ i3
- Weight
- 1.3 kg
- Colour
- Black
- Built-in processor
- Yes
- Supported storage drive types
- HDD & SSD
- Motherboard chipset
- Intel® H110
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- DH 110
- Part number
- DH1100-Q28017
- Also known as
- Shuttle XPС slim DH 110 1.3L sized PC Black i3-7100 Intel® H110 LGA 1151 (Socket H4) 3.9 GHz
Specifications
96 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 7th gen Intel® Core™ i3 |
| Processor model | i3-7100 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 3.9 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 51 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | PCI Express, Serial ATA III |
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H110 |
| Processor socket | LGA 1151 (Socket H4) |
| Number of processors supported | 1 |
| BIOS type | AMI |
| BIOS memory size | 64 Mbit |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel I219LM |

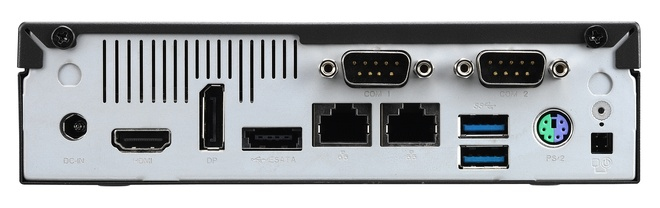

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 1 |
| Serial ports quantity | 2 |
| eSATA ports quantity | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
Design
| Specification | Value |
|---|---|
| Chassis type | 1.3L sized PC |
| Product colour | Black |
| Cooling type | Active |
| LED indicators | HDD, Power |
| Housing material | Metal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Safety | CB, ETL |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
| Linux operating systems supported | Yes |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 4.47 A |
| AC adapter output voltage | 19 V |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Number of power supply units | 1 |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 190 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
