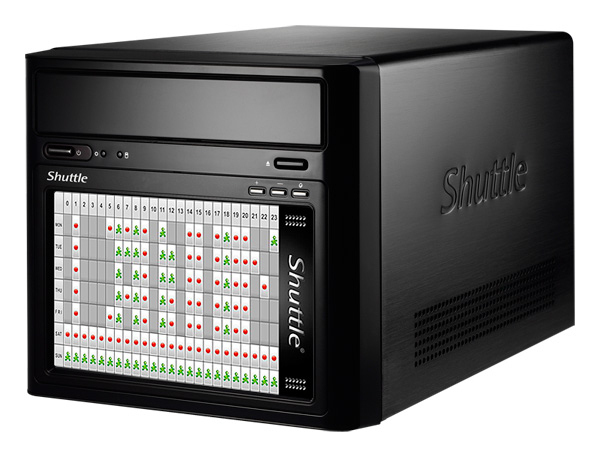

D 1416S Surveillance System
Model D 1416S Surveillance SystemPart no. PC-D1416001
24 specifications
- Display17.8 cm (7")
- Memory1 GB
- ColourBlack
- Number of storage drives supported2
- On-board graphics cardYes
- Motherboard chipsetIntel® G31 Express
Overview
- Display
- 17.8 cm (7")
- Memory
- 1 GB
- Colour
- Black
- Number of storage drives supported
- 2
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® G31 Express
- Brand
- Shuttle
- Category
- PC/Workstation Barebones
- Model
- D 1416S Surveillance System
- Part number
- PC-D1416001
- Also known as
- Shuttle D 1416S Surveillance System Mini-Tower Black Intel® G31 Express LGA 775 (Socket T)
Specifications
24 specifications in 12 groups
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3100 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G31 Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 6.1 channels |
| Audio system | Realtek ALC662 |

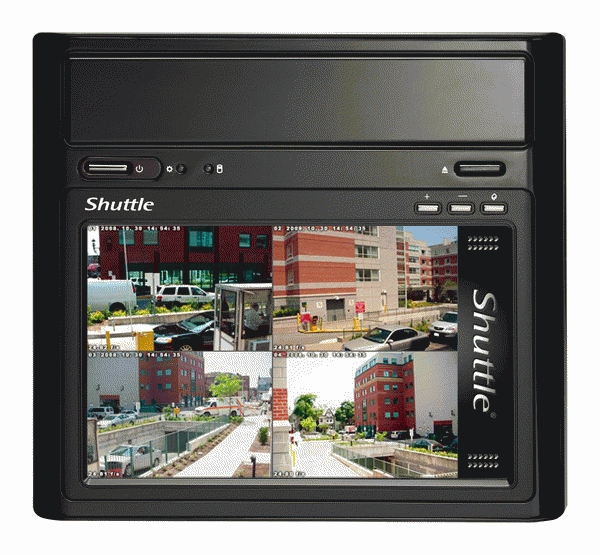

Display
| Specification | Value |
|---|---|
| Display diagonal | 17.8 cm (7") |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell 88E8056 (Gigabit Ethernet) |

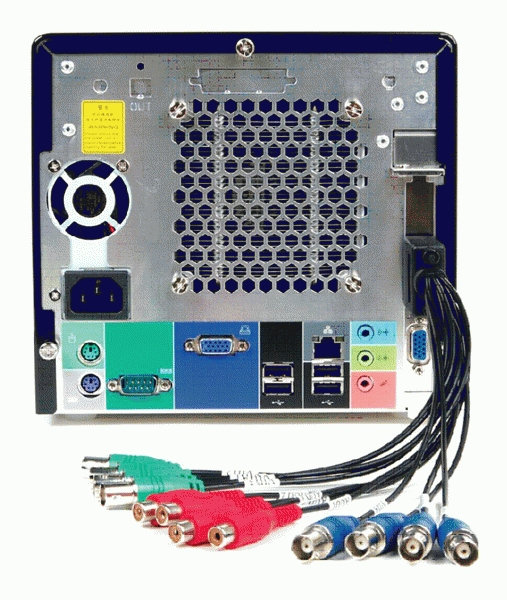

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini-Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Vista Home Basic |
Certificates
| Specification | Value |
|---|---|
| Certification | EMI: FCC, CE, BSMI, C-tick Safety: UL, TÜV, CB, BSMI |
Power
| Specification | Value |
|---|---|
| Power supply | 100 W |
Other features
| Specification | Value |
|---|---|
| Expansion slots | PV416 Surveillance card for PCIe x1 |
