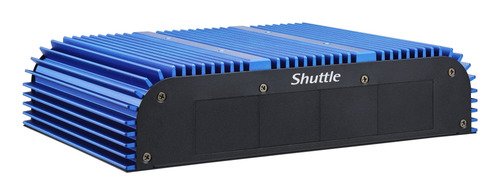

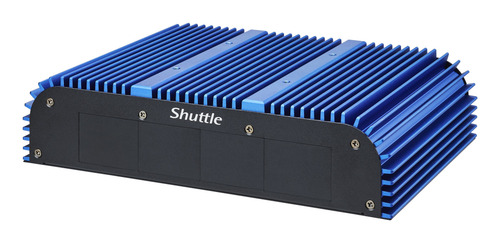

BPCRL02-i3 industrial Box-PC,i3-1315U , 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fanless, 24/7 permanent operation
Shuttle

BPCRL02-i3 industrial Box-PC,i3-1315U , 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fanless, 24/7 permanent operation

Model BPCRL02-i3Part no. BPCRL02-I3EAN 887993008332

70 specifications
  • ProcessorIntel® Core™ i3
  • TypeMini PC barebone
  • Weight2.85 kg
  • ColourBlack, Blue
  • Built-in processorYes
  • Internal memory installedNo
See all specifications

Overview

Processor
Intel® Core™ i3
Type
Mini PC barebone
Weight
2.85 kg
Colour
Black, Blue
Built-in processor
Yes
Internal memory installed
No
Brand
Shuttle
Model
BPCRL02-i3
Part number
BPCRL02-I3
EAN / UPC
887993008332
Also known as
Shuttle BPCRL02-i3 industrial Box-PC,i3-1315U , 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fanless, 24/7 permanent operation

Specifications

70 specifications in 13 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generationIntel Core i3-13xxx
Processor modeli3-1315U
Processor cores6
Processor threads8
Processor boost frequency4.5 GHz
Performance cores2
Efficient cores4
Performance-core Max Turbo Frequency4.5 GHz
Efficient-core Max Turbo Frequency3.3 GHz
Processor cache10 MB

Memory

Internal memory installedNo
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory96 GB
Supported memory clock speeds6400 MHz

Storage

Storage drives installedNo
Supported storage drive typesSSD
Storage drive sizes supportedM.2
M.2 SSD size2280 (22 x 80 mm)
SSD form factorM.2
Storage drive interfacePCI Express, Serial ATA
NVMeYes

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics

Performance

Motherboard chipsetIntel SoC
Processor socketBGA 1744
Number of processors supported1
BIOS typeUEFI AMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealtek ALC888S

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiNo
LAN controllerIntel I226-V

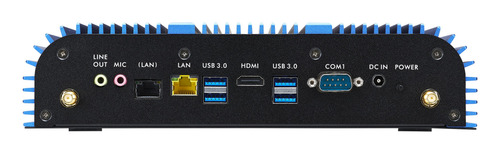

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity0
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Serial ports quantity1
DC-in jackYes

Design

Chassis type2.6L sized PC
Product colourBlack, Blue
Cooling typePassive
LED indicatorsYes
Housing materialAluminium, Metal
Product typeMini PC barebone

Logistics data

Harmonized System (HS) code84733080

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)20 - 80%
Operating temperature (T-T)-20 - 60 °C

Weight & dimensions

Width169 mm
Depth245 mm
Height57 mm
Weight2.85 kg
