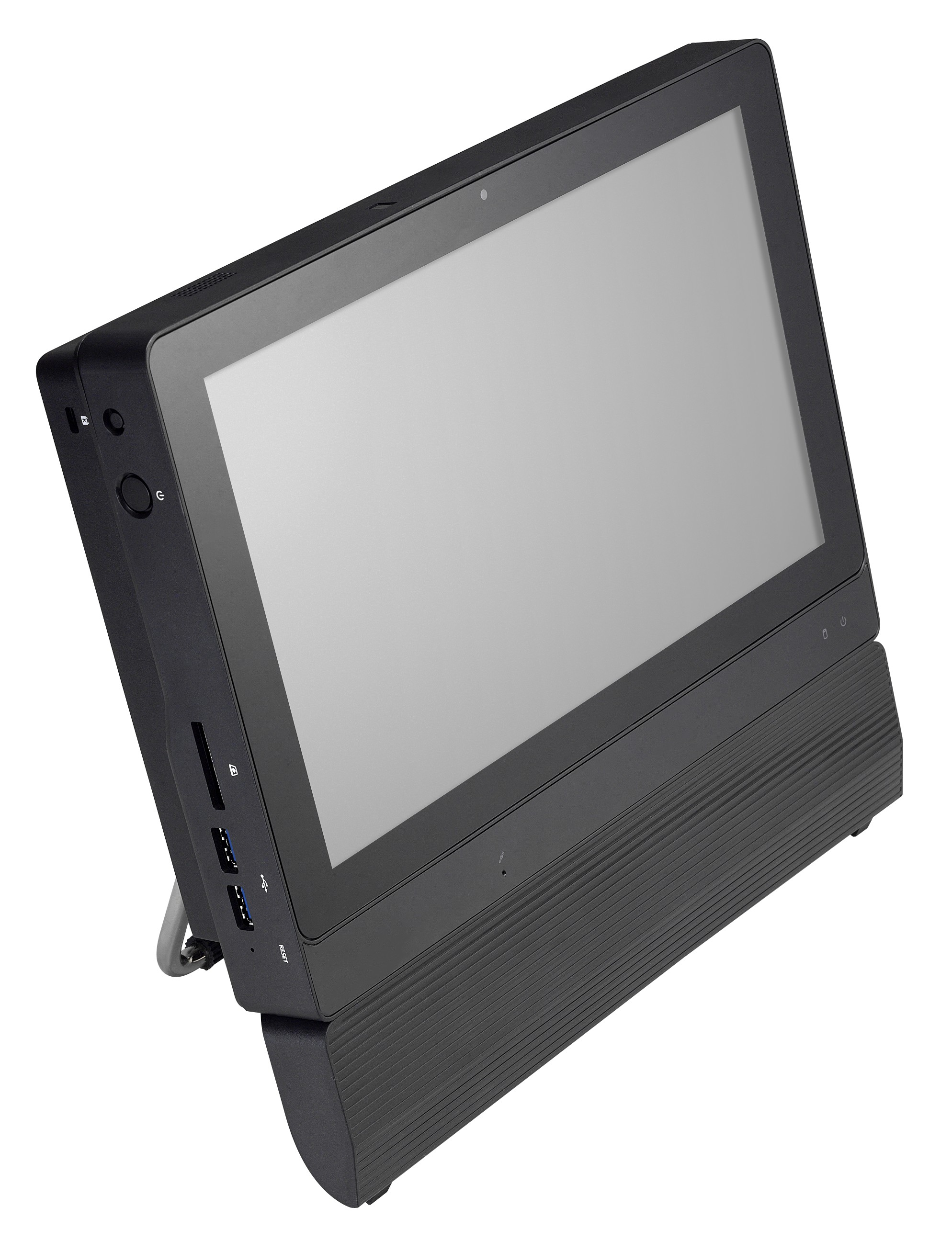

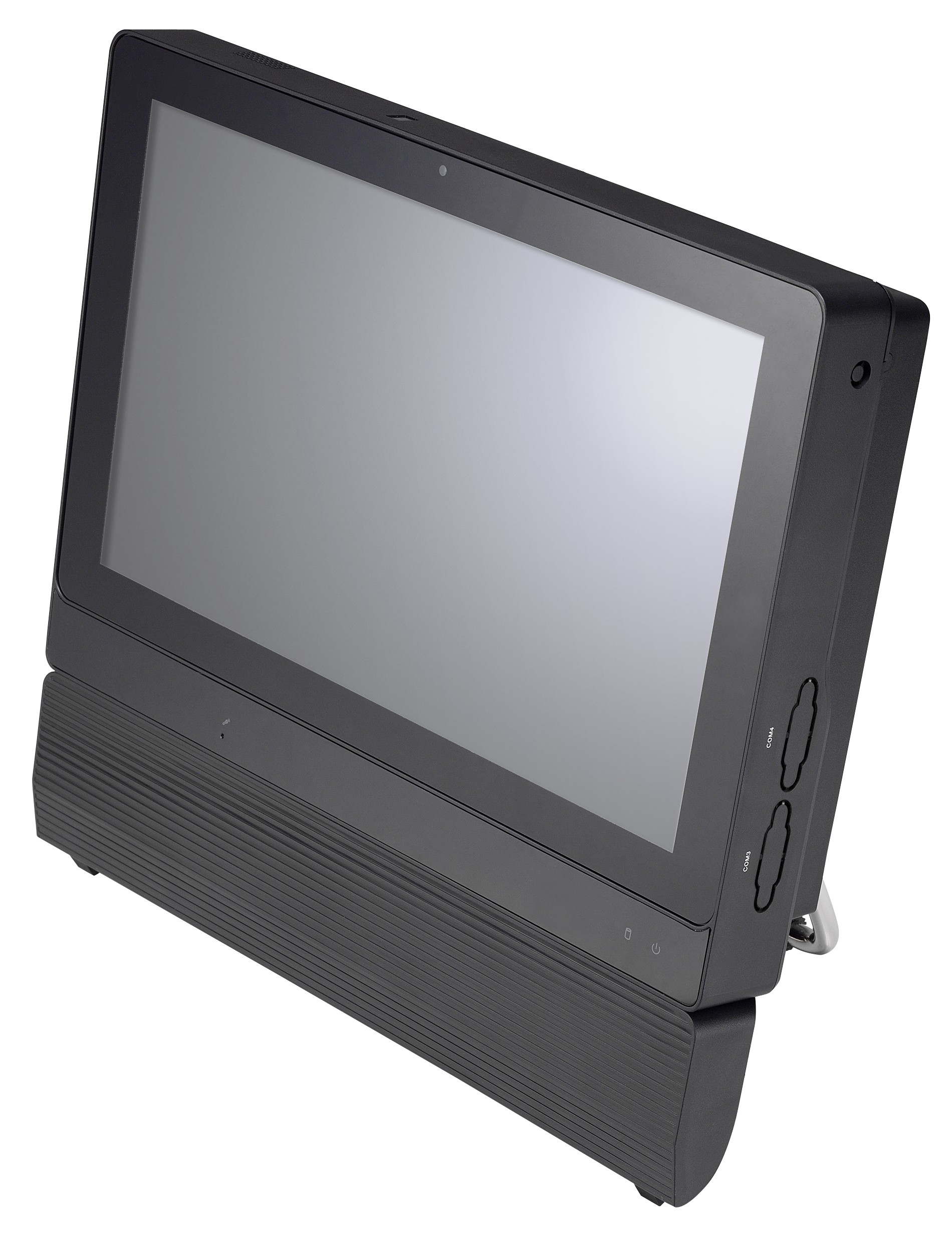

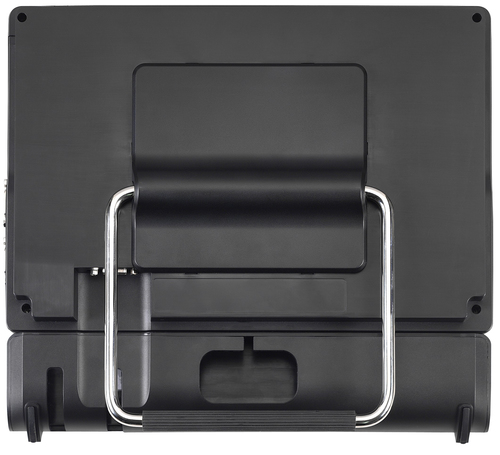

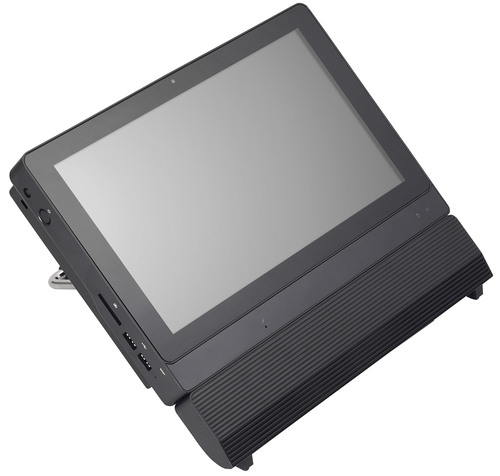

Shuttle All In One PC P22U
Shuttle

All In One PC P22U

Model All In One PC P22UPart no. PAB-P22U001EAN 887993004648

96 specifications
  • Display39.6 cm (15.6")
  • Resolution1366 x 768 pixels
  • ProcessorIntel® Celeron®
  • TypeAll-in-One PC barebone
  • OSNo
  • Weight2.47 kg
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1366 x 768 pixels
Processor
Intel® Celeron®
Type
All-in-One PC barebone
OS
No
Weight
2.47 kg
Brand
Shuttle
Model
All In One PC P22U
Part number
PAB-P22U001
EAN / UPC
887993004648
Also known as
Shuttle All-In-One Barebone P22U, 11.6" Multi-Touch-Screen, Celeron 5205U, IP54, fanless, 24/7 permanent operation

Specifications

96 specifications in 17 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Celeron®
Processor model5205U
Processor cores2
Processor threads2
Processor frequency1.9 GHz
Processor lithography14 nm
Processor cache2 MB
Thermal Design Power (TDP)15 W
CPU configuration (max)1

Memory

Memory slots typeSO-DIMM
Maximum internal memory64 GB
Memory channelsDual-channel
Memory voltage1.2 V
Supported memory clock speeds2400 MHz
Supported memory typesDDR4-SDRAM
Non-ECCYes

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
SSD form factor2.5"
Storage drive interfaceSerial ATA III
Number of storage drives supported1
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Maximum resolution3840 x 2160 pixels

Performance

BIOS typeAMI
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0

Display

Display diagonal39.6 cm (15.6")
Display resolution1366 x 768 pixels
TouchscreenYes
HD typeHD
Aspect ratio16:9
Display brightness220 cd/m²
Panel typeLCD

Audio

Built-in speaker(s)Yes
RMS rated power2 W

Network

Ethernet LANYes

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version1.4
VGA (D-Sub) ports quantity1
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
Serial ports quantity2
DC-in jackYes

Design

Chassis typeAll-in-One
Product colourBlack
Cooling typePassive
On/off switchYes
LED indicatorsHDD, Power
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeAll-in-One PC barebone

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Flex Memory AccessYes
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes

Software

Windows operating systems supportedWindows 10, Windows 11
Linux operating systems supportedYes
Operating system installedNo

Logistics data

Harmonized System (HS) code84713000

Power

Power supply typeExternal AC adapter
AC adapter output current3.42 A
AC adapter output voltage19 V
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply65 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width290 mm
Depth50 mm
Height203 mm
Weight2.47 kg
Package weight3.39 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
