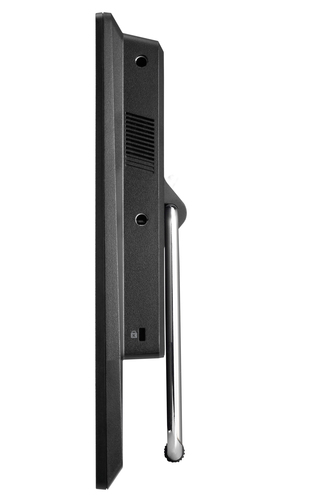

Shuttle All In One Barebone P55U3
Shuttle

All In One Barebone P55U3

Model All In One Barebone P55U3Part no. P55U3EAN 887993007120

100 specifications
  • Display39.6 cm (15.6")
  • Resolution1920 x 1080 pixels
  • ProcessorIntel® Core™ i3
  • SpeedWi-Fi 5 (802.11ac)
  • TypeAll-in-One PC barebone
  • Weight3.25 kg
See all specifications

Overview

Display
39.6 cm (15.6")
Resolution
1920 x 1080 pixels
Processor
Intel® Core™ i3
Speed
Wi-Fi 5 (802.11ac)
Type
All-in-One PC barebone
Weight
3.25 kg
Brand
Shuttle
Model
All In One Barebone P55U3
Part number
P55U3
EAN / UPC
887993007120
Also known as
Shuttle All-In-One Barebone P55U3, 15.6" Multi-Touch-Screen, Intel Core i3-1315U, Wifi, IP54, fanless, 24/7 permanent operation

Specifications

100 specifications in 19 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor modeli3-1315U
Processor cores6
Processor threads8
Processor boost frequency4.5 GHz
Performance cores2
Efficient cores4
Performance-core Max Turbo Frequency4.5 GHz
Efficient-core Max Turbo Frequency3.3 GHz
Processor cache10 MB

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory96 GB
Memory channelsDual-channel
Memory voltage1.1 V
Supported memory clock speeds4800 MHz
Supported memory typesDDR5-SDRAM
ECCNo
Non-ECCYes

Storage

Supported storage drive typesSSD
Storage drive sizes supportedM.2
SSD form factorM.2
Storage drive interfacePCI Express
NVMeYes

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Number of displays supported3

Performance

Motherboard chipsetIntel SoC
Processor socketLGA 1700
Number of processors supported1
BIOS typeAMI EEPROM
Built-in cameraYes
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio chipRealtek ALC888S

Display

Display diagonal39.6 cm (15.6")
Display resolution1920 x 1080 pixels
TouchscreenYes
HD typeFull HD
Aspect ratio16:9
Display brightness250 cd/m²
Panel typeIPS

Audio

Built-in speaker(s)Yes
Number of speakers2
RMS rated power2 W

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN controller modelRealtek RTL8821CE
BluetoothYes
Bluetooth version4.2
LAN controllerIntel I219V

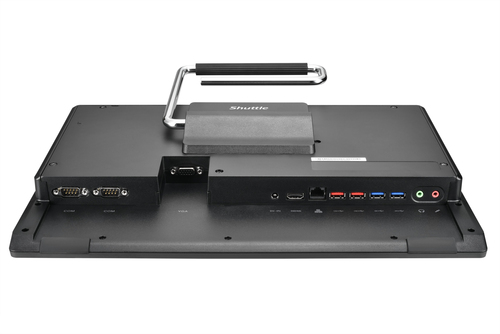

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
HDMI ports quantity1
HDMI version2.0b
VGA (D-Sub) ports quantity1
Microphone inYes
Headphone outputs1
COM ports quantity2
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Expansion slots

Number of M.2 (M) slots2

Design

Chassis typeAll-in-One
Product colourBlack
Cooling typePassive
LED indicatorsPower, SSD
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeAll-in-One PC barebone

Sustainability

Sustainability certificatesENERGY STAR

Technical details

Compliance certificatesBSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, UKCA, VCCI, cTUVus

Software

Windows operating systems supportedWindows 10 x64, Windows 11 x64
Linux operating systems supportedYes

Logistics data

Harmonized System (HS) code84714100

Power

Power supply typeExternal AC adapter
AC adapter output current4.74 A
AC adapter output voltage19 V
AC input frequency50/60 Hz
AC input voltage100 - 240 V
Number of power supply units1
Power supply90 W

Operational conditions

Operating relative humidity (H-H)10 - 90%
Operating temperature (T-T)0 - 40 °C

Weight & dimensions

Width393.6 mm
Depth39.8 mm
Height272.5 mm
Weight3.25 kg
Package weight4.5 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
