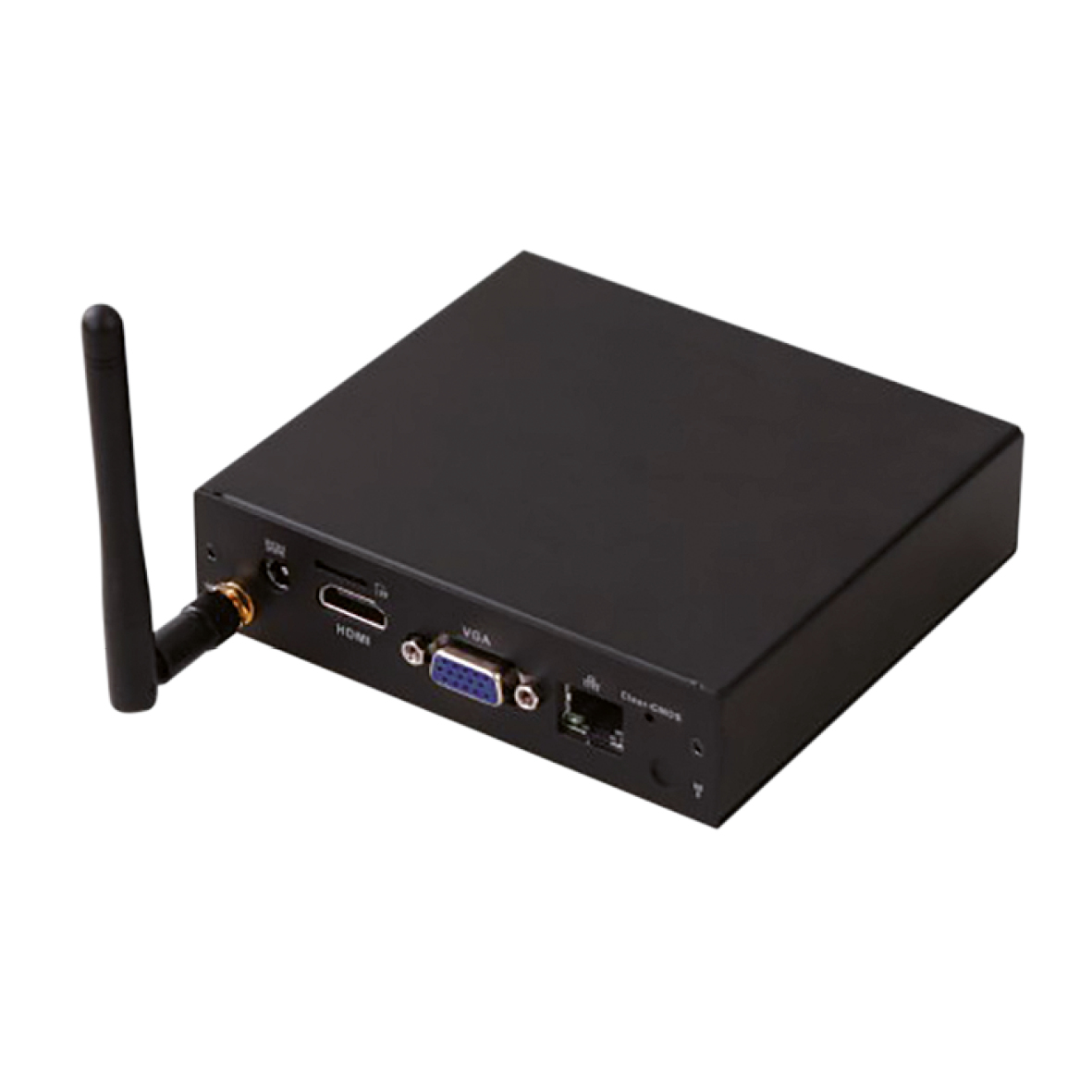

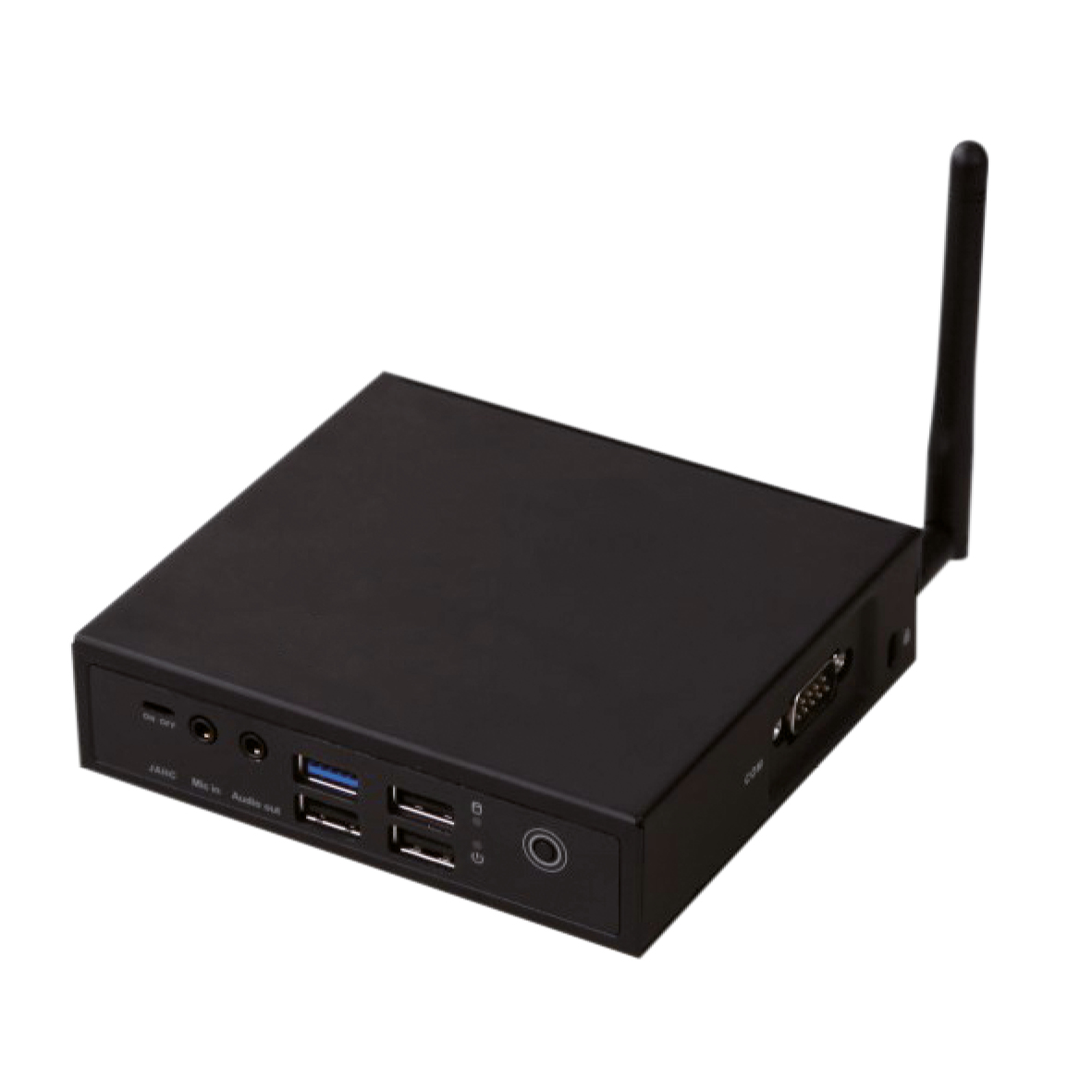

ProDVX IBPC-848 Intel Box PC Intel Atom Quad Core
1,84 Hz 32GB eMMC Flash Windows 8, 10 Linux
Model IBPC-848Part no. 99300207.150
49 specifications
- ProcessorIntel Atom®
- TypeMini PC barebone
- Weight1.1 kg
- ColourBlack
- Built-in processorYes
- Maximum internal memory2 GB
Overview
- Processor
- Intel Atom®
- Type
- Mini PC barebone
- Weight
- 1.1 kg
- Colour
- Black
- Built-in processor
- Yes
- Maximum internal memory
- 2 GB
- Brand
- ProDVX
- Category
- PC/Workstation Barebones
- Model
- IBPC-848
- Part number
- 99300207.150
- Also known as
- ProDVX IBPC-848 Intel Box PC Intel Atom Quad Core 1,84 Hz 32GB eMMC Flash Windows 8, 10 Linux
Specifications
49 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | x5-Z8300 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 1.84 GHz |
| Processor frequency | 1.44 GHz |
| Processor lithography | 14 nm |
| Processor codename | Cherry Trail |
| Processor series | Intel Atom x5 Series |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
| Supported memory types | DDR3-SDRAM |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 592 |
| Number of processors supported | 1 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| Housing material | Metal |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Wireless Display (Intel® WiDi) | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7/8/10, Linux |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116.6 mm |
| Depth | 107.2 mm |
| Height | 30 mm |
| Weight | 1.1 kg |
