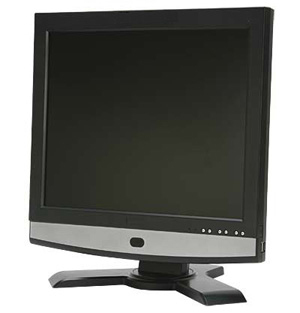

Quartz G31-T
Model Quartz G31-TPart no. QUARTZ G31-TEAN 816909043037
28 specifications
- Display48.3 cm (19")
- Memory slots typeSO-DIMM
- On-board graphics cardYes
- Motherboard chipsetIntel® G31 Express
- USB 2.0 ports quantity5
- Chassis typeNo
Overview
- Display
- 48.3 cm (19")
- Memory slots type
- SO-DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® G31 Express
- USB 2.0 ports quantity
- 5
- Chassis type
- No
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- Quartz G31-T
- Part number
- QUARTZ G31-T
- EAN / UPC
- 816909043037
- Also known as
- MSI Quartz G31-T Intel® G31 Express LGA 775 (Socket T)
Specifications
28 specifications in 10 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3100 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® G31 Express |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Core™2 Quad |
| Supported processor frequency (max) | 1.333 GHz |
| Audio output channels | 2.0 channels |
| Audio system | Realtek AL888 |
Display
| Specification | Value |
|---|---|
| Display diagonal | 48.3 cm (19") |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Fast Ethernet (Realtek RTL8111B) |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Chassis type | No |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | 1 x Slim ODD 1 x DC/IN |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 410 x 250 x 430 mm |
| Drive bays | 1 x 2.5", 1 x 3.5" |
| Expansion slots | 1 x PCIe Mini |
| I/O ports | 1 x Slim ODD 1 x DC/IN |
