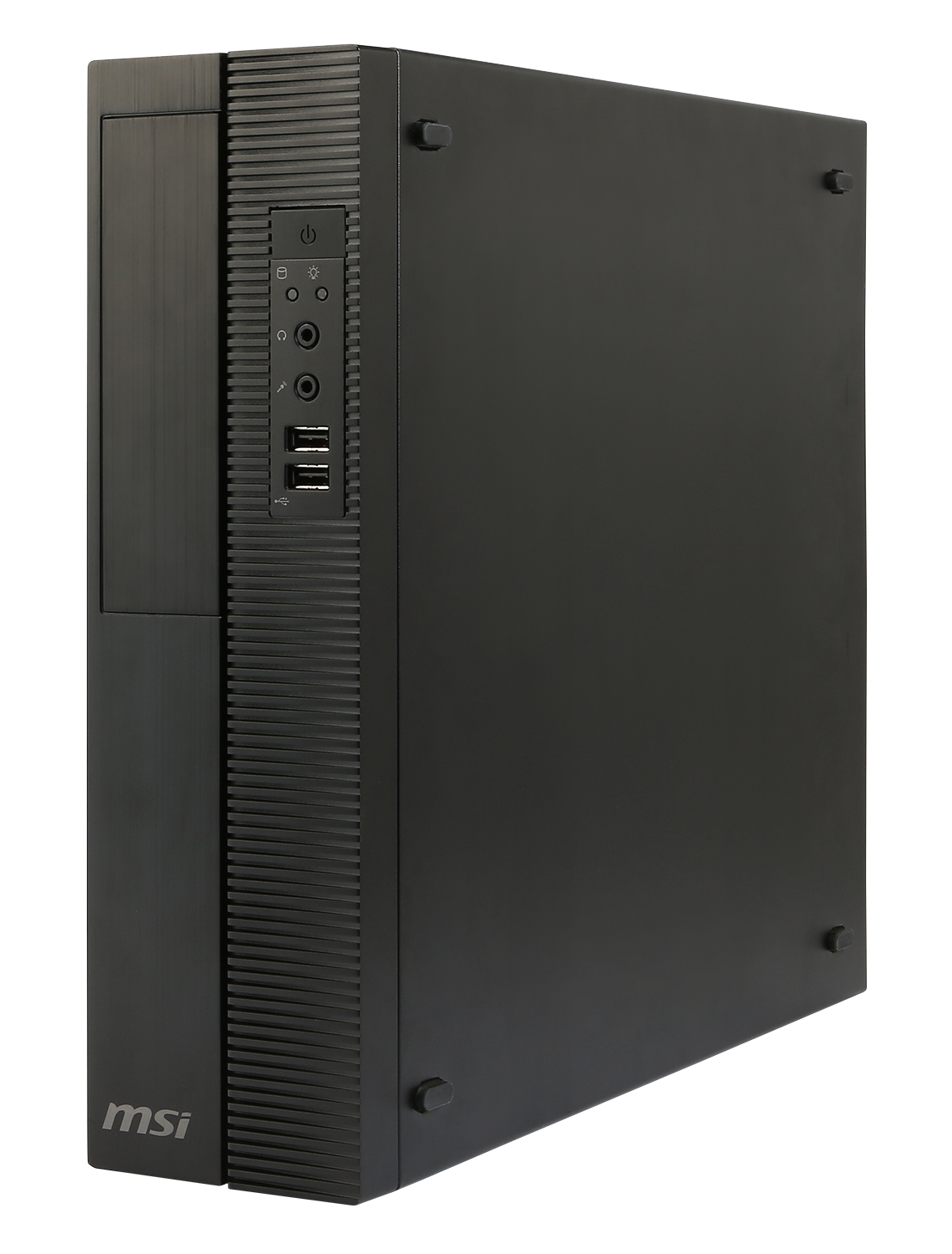

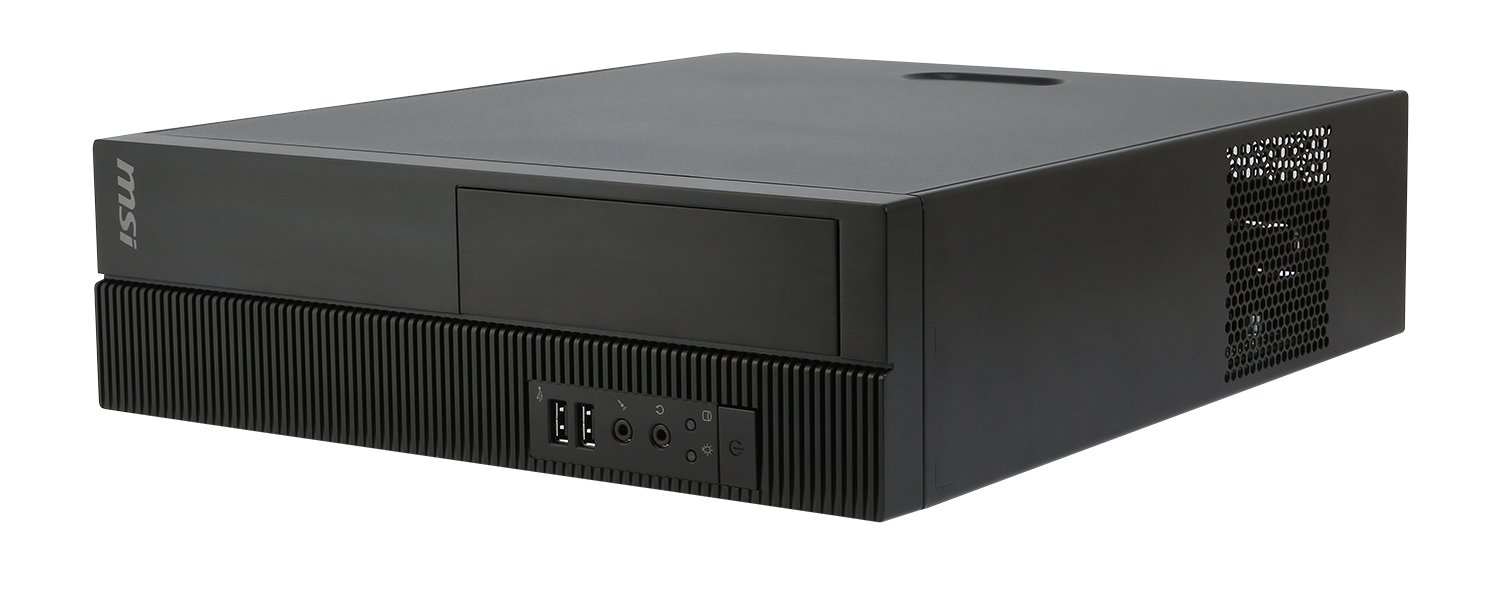

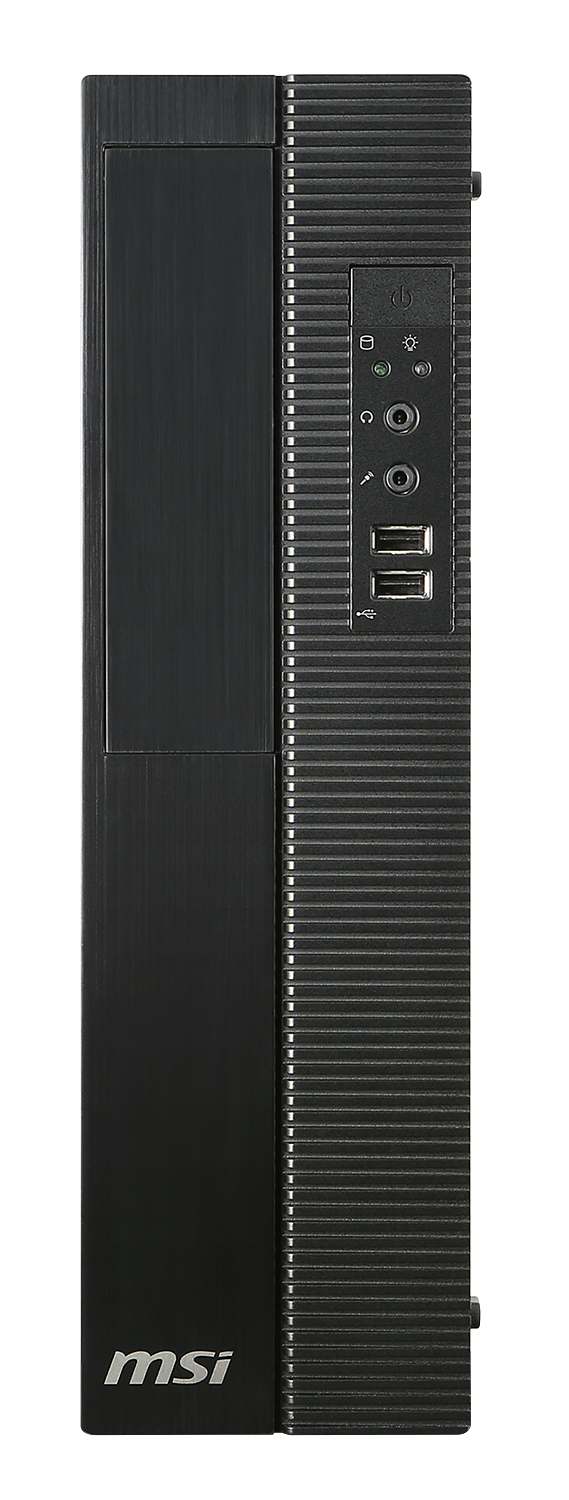

MSI ProBox130-001BEU Black Intel® H81 LGA 1150 (Socket H3)
Model ProBox130-001BEUPart no. PROBOX130-001BEUEAN 4719072349479
38 specifications
- ProcessorIntel
- TypePC barebone
- OSNo
- Weight3.8 kg
- ColourBlack
- Memory slots typeDIMM
Overview
- Processor
- Intel
- Type
- PC barebone
- OS
- No
- Weight
- 3.8 kg
- Colour
- Black
- Memory slots type
- DIMM
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- ProBox130-001BEU
- Part number
- PROBOX130-001BEU
- EAN / UPC
- 4719072349479
- Also known as
- MSI ProBox130-001BEU Black Intel® H81 LGA 1150 (Socket H3)
Specifications
38 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 3.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H81 |
| Processor socket | LGA 1150 (Socket H3) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Audio system | Realtek ALC887 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Networking features | 10/100 /1000 |

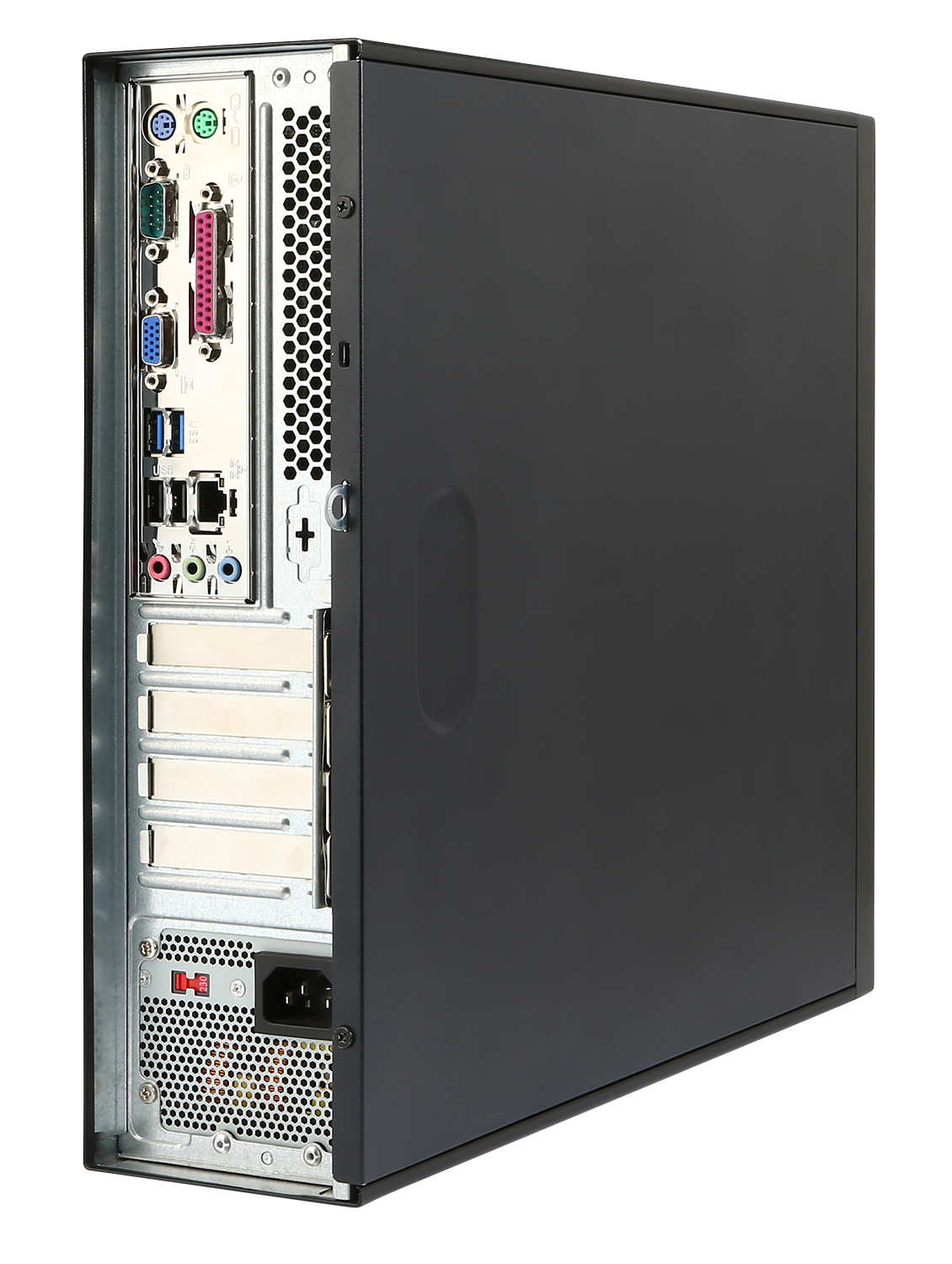

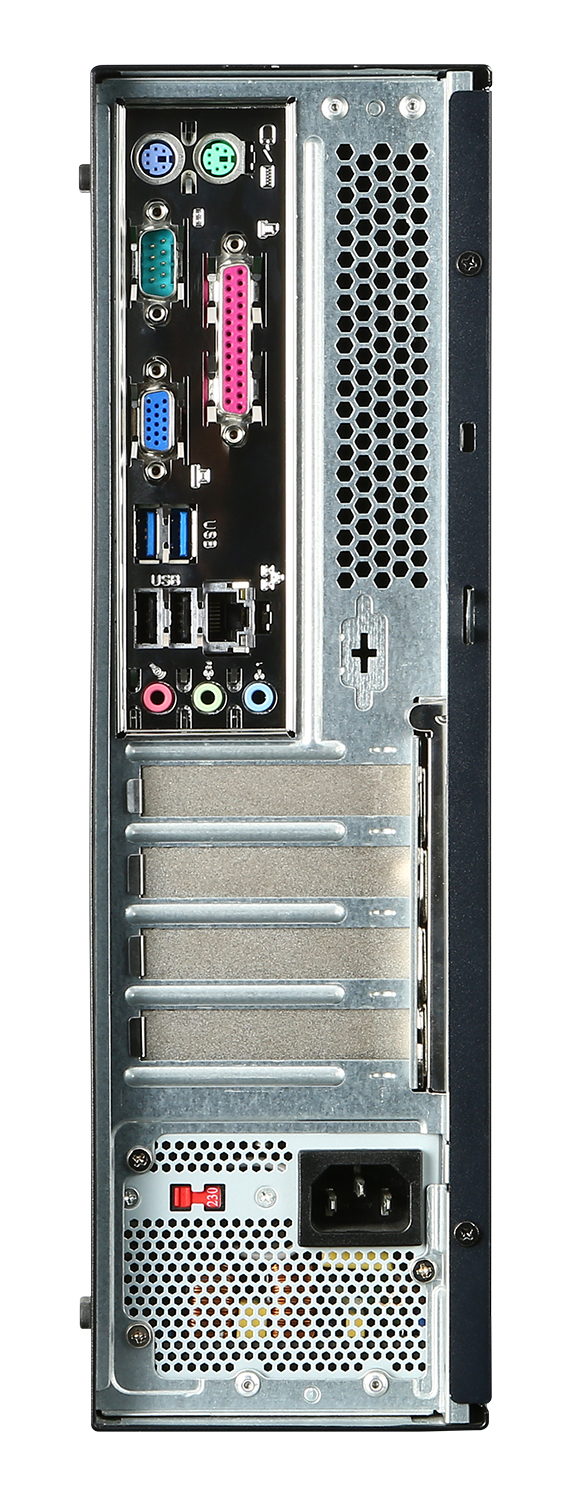

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 0 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |

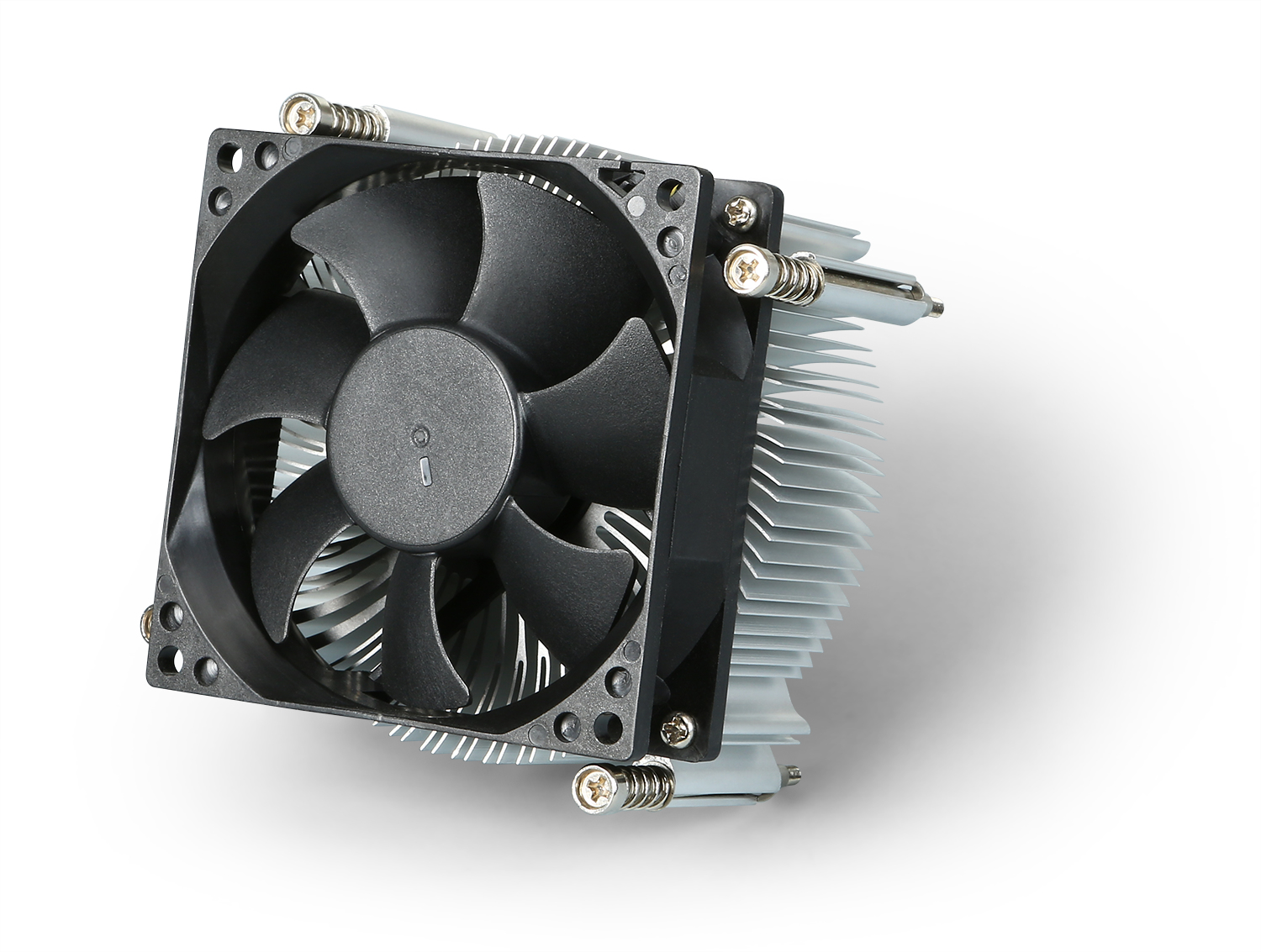

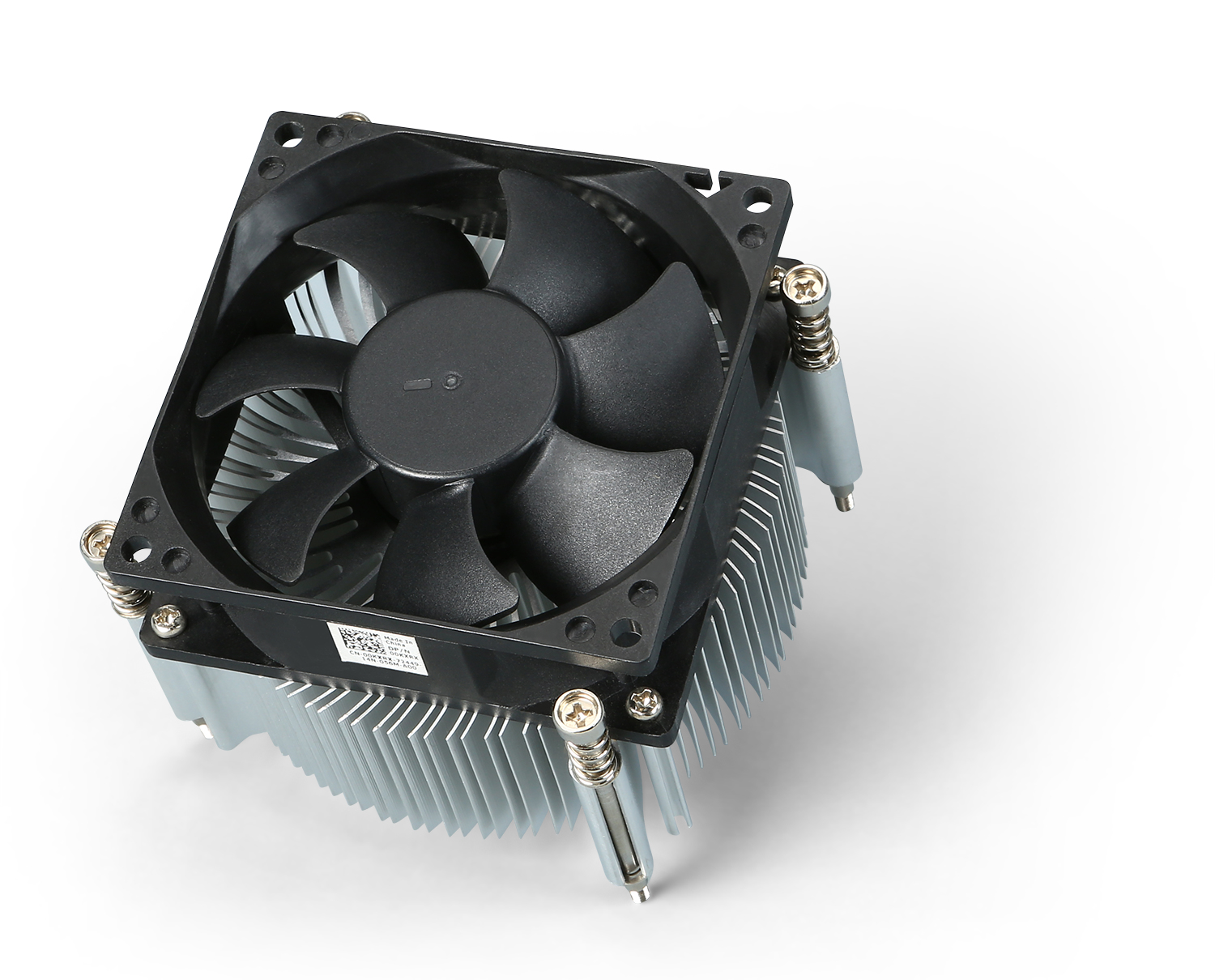

| Cooling type | Active |
| Product type | PC barebone |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Support Windows 7/Windows 8.1 |
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 101.7 mm |
| Depth | 392.4 mm |
| Height | 339.7 mm |
| Weight | 3.8 kg |
