MSI PRO DP21 13M-i5 13400 BB
MSI

PRO DP21 13M-i5 13400 BB

Model PRO DP21 13M-i5 13400 BBPart no. PRO DP21 13M I5 13400 BBEAN 4711377071079

91 specifications
  • ProcessorIntel® Core™ i5
  • SpeedWi-Fi 6E (802.11ax)
  • TypeMini PC barebone
  • OSNo
  • Weight1.27 kg
  • ColourBlack
See all specifications

Overview

Processor
Intel® Core™ i5
Speed
Wi-Fi 6E (802.11ax)
Type
Mini PC barebone
OS
No
Weight
1.27 kg
Colour
Black
Brand
MSI
Model
PRO DP21 13M-i5 13400 BB
Part number
PRO DP21 13M I5 13400 BB
EAN / UPC
4711377071079
Also known as
MSI PRO DP21 13M Intel Core i5 13400 Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), UHD Graphics/Type C/HDMI/DisplayPort/COM Port/TPM 2.0

Specifications

91 specifications in 14 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation13th gen Intel® Core™ i5
Processor modeli5-13400
Processor cores10
Processor threads16
Processor boost frequency4.6 GHz
Processor frequency4.6 GHz
Performance cores6
Efficient cores4
Processor lithography10 nm
Performance-core boost frequency4.6 GHz
Efficient-core boost frequency3.3 GHz
Processor cache20 MB
L2 cache9.5 MB

Memory

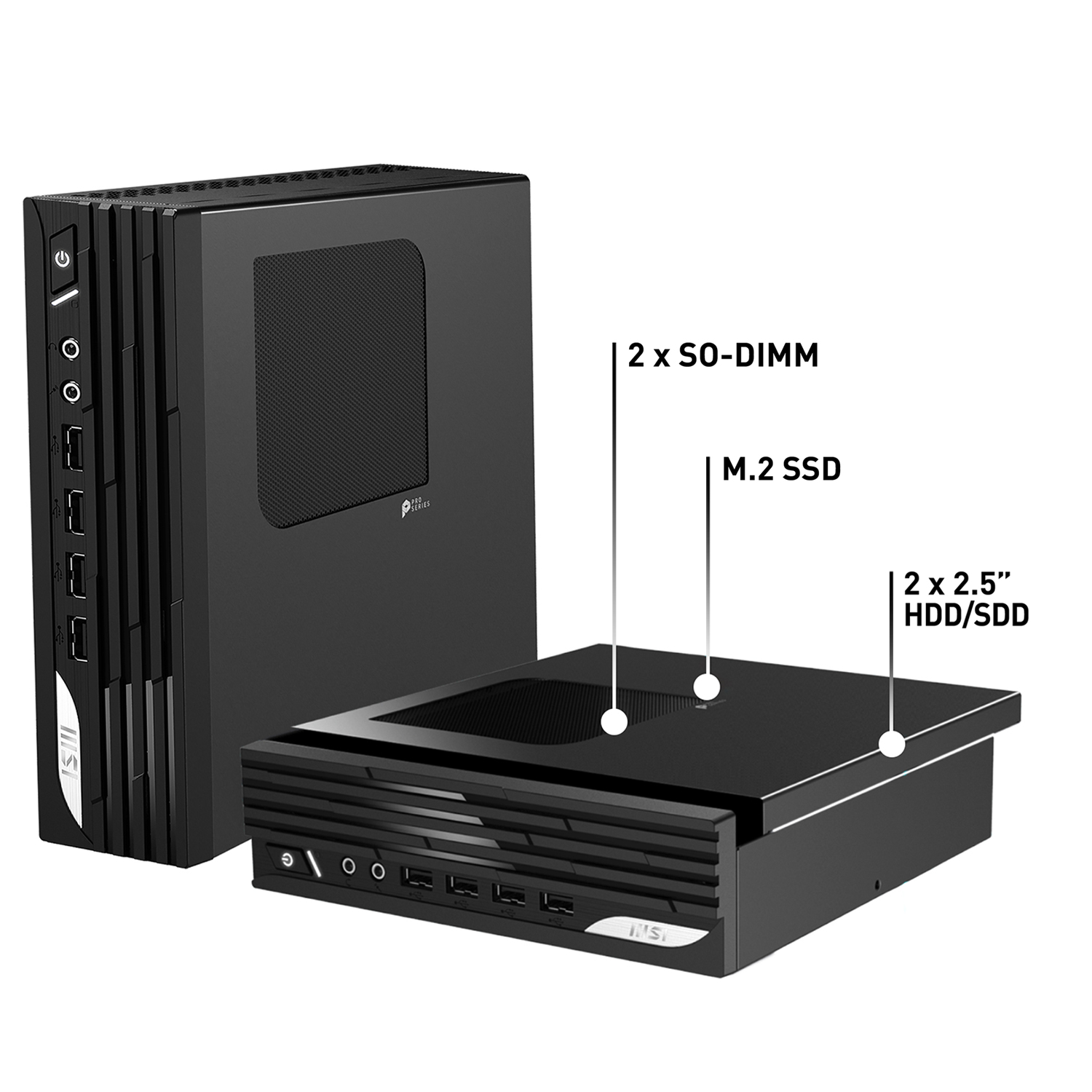

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Supported memory clock speeds2666,3200 MHz

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
SSD form factorM.2
Storage drive interfaceM.2, Serial ATA III
NVMeYes
Number of storage drives supported3

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Number of displays supported3

Performance

Motherboard form factormini ITX
Motherboard chipsetIntel H610
Number of processors supported1
Compatible processor seriesIntel Core i5 13th Gen
Trusted Platform Module (TPM)Yes

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3
LAN controllerRealtek RTL8111H

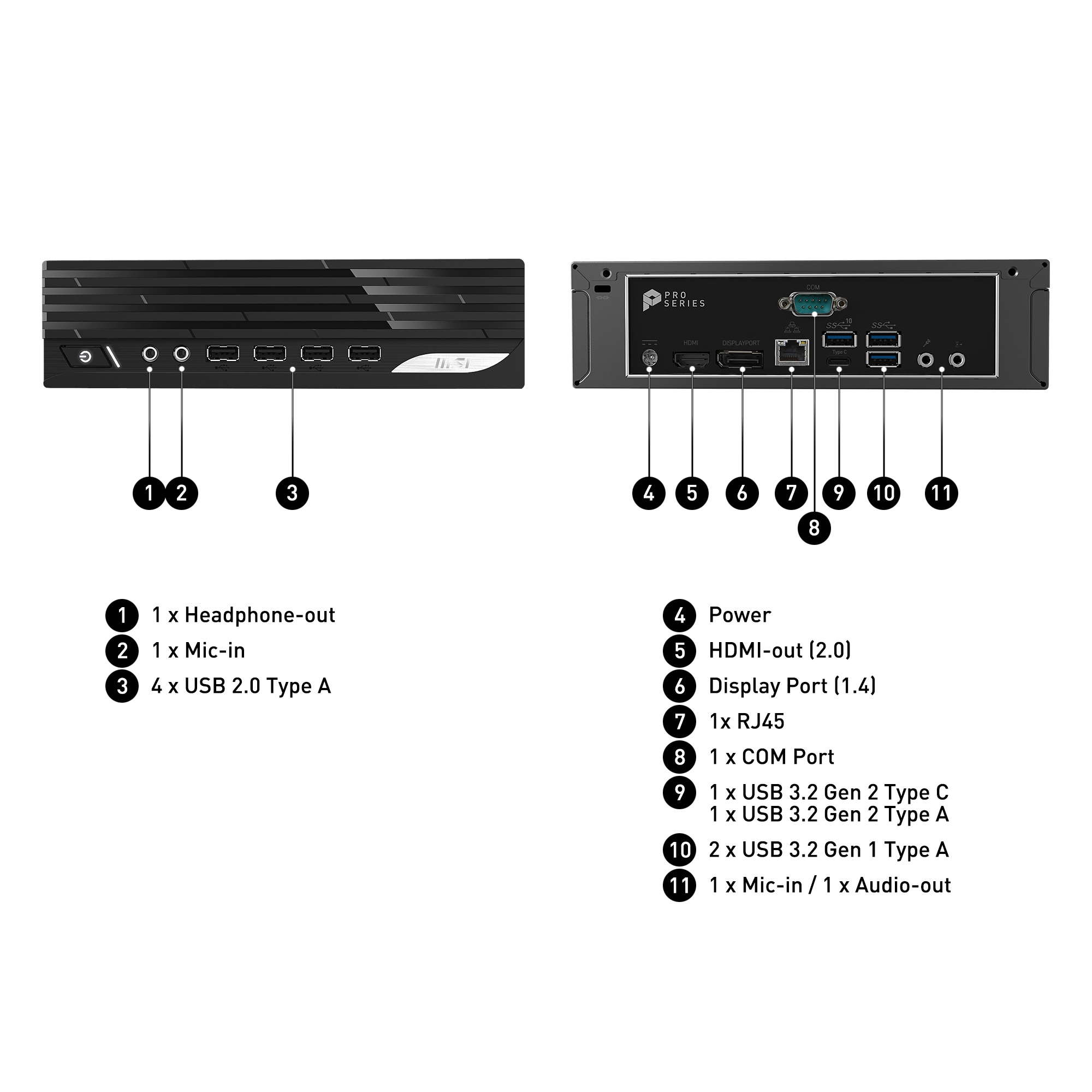

Ports & interfaces

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
HDMI version2.0
VGA (D-Sub) ports quantity0
DVI portNo
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Mini DisplayPorts quantity0
Microphone inYes
Headphone outputs1
COM ports quantity1
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Design

Chassis type2.3L sized PC
Product colourBlack
Cooling typeActive
On/off switchYes

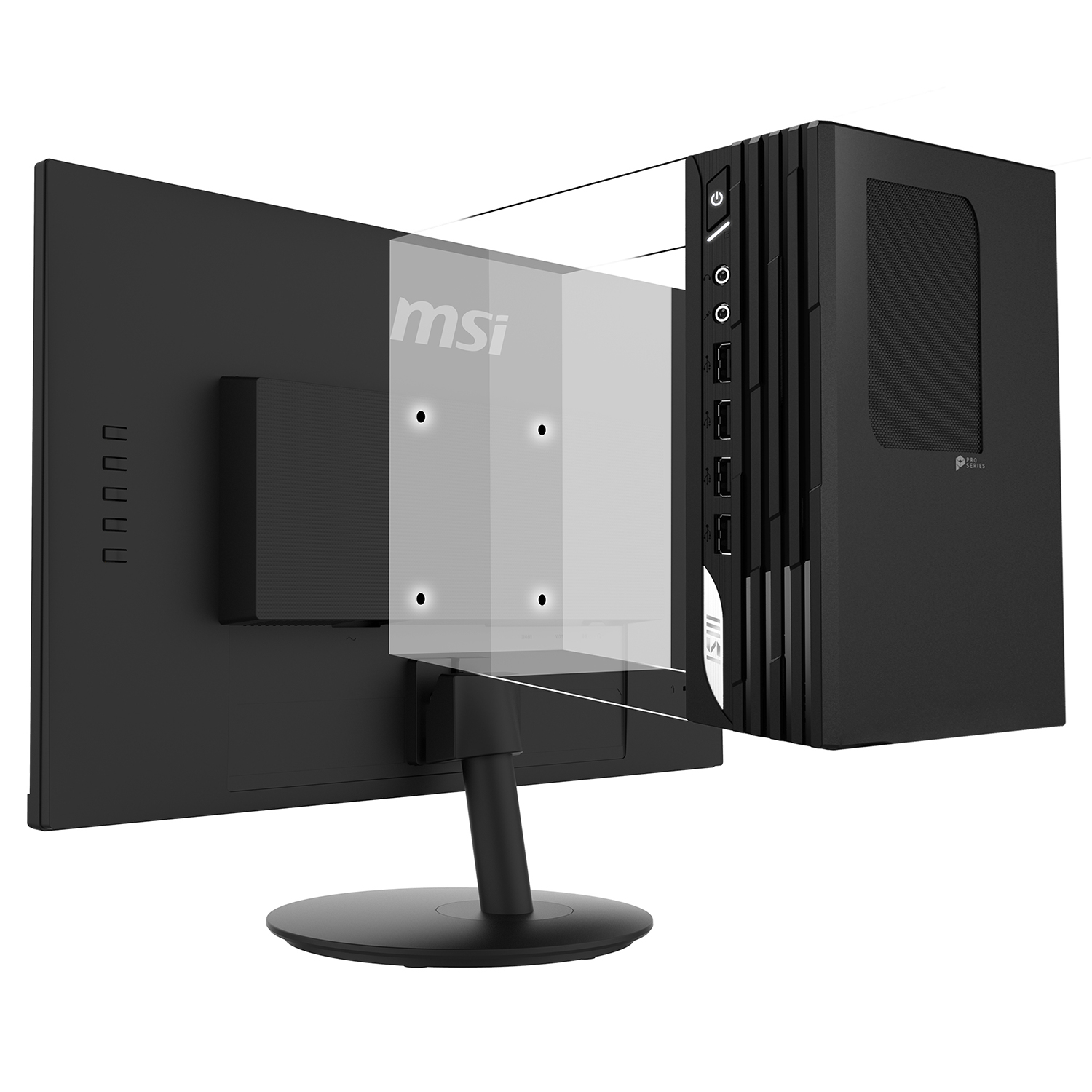

VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeMini PC barebone

Software

Operating system installedNo

Power

Power supply typeExternal AC adapter
Number of power supply units1
Power supply120 W

Weight & dimensions

Width204 mm
Depth208 mm
Height54.8 mm
Weight1.27 kg
Package width275 mm
Package depth382 mm
Package height125 mm
Package weight2.75 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
Display includedNo
Mouse includedNo
Keyboard includedNo

Other features

Country of originChina
Warranty period2 year(s)
