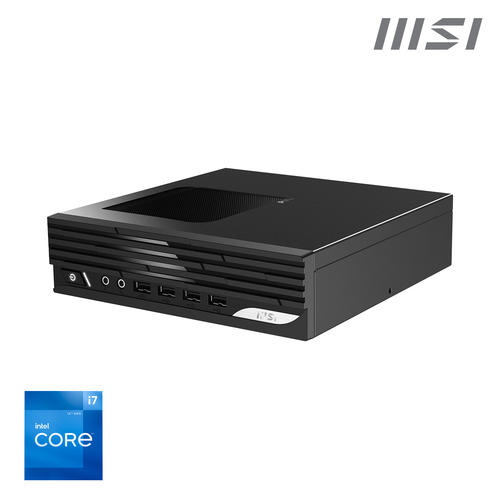

PRO DP21 12M I7 12700 BB
Model PRO DP21 12M I7 12700 BBEAN 4711377016735
100 specifications
- ProcessorIntel® Core™ i7
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- OSNo
- Weight1.27 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i7
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- OS
- No
- Weight
- 1.27 kg
- Colour
- Black
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- PRO DP21 12M I7 12700 BB
- Part number
- PRO DP21 12M I7 12700 BB
- EAN / UPC
- 4711377016735
- Also known as
- MSI PRO DP21 12M Intel Core i7 12700 Barebone, Mini PC, SFF, 2.3L, Type C, USB 3.2 Gen2, HDMI, DisplayPort, LAN, WiFi, BT, VESA, Supports Max 64GB DDR4 SO-DIMM
Specifications
100 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i7-12700 |
| Processor cores | 12 |
| Processor threads | 20 |
| Processor boost frequency | 4.8 GHz |
| Processor frequency | 2.1 GHz |
| Performance cores | 8 |
| Efficient cores | 4 |
| Processor lithography | 10 nm |
| Performance-core boost frequency | 4.9 GHz |
| Efficient-core boost frequency | 3.6 GHz |
| Processor cache | 25 MB |
| L2 cache | 12 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666,3200 MHz |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, Serial ATA, Serial ATA II |
| NVMe | Yes |
| Number of storage drives supported | 3 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 2 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel H610 |
| Processor socket | LGA 1700 |
| Number of processors supported | 1 |
| Trusted Platform Module (TPM) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Realtek RTL8111H |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Internal USB 2.0 ports quantity | 0 |
| Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 0 |
| USB4 Gen 2x2 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Mini HDMI ports quantity | 0 |
| HDMI version | 2.0 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Mini DisplayPorts quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| COM ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Thunderbolt 4 ports quantity | 0 |
| Thunderbolt ports quantity | 0 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | 2.3L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | System |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 204 mm |
| Depth | 208 mm |
| Height | 54.8 mm |
| Weight | 1.27 kg |
| Package width | 275 mm |
| Package depth | 382 mm |
| Package height | 125 mm |
| Package weight | 2.75 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
