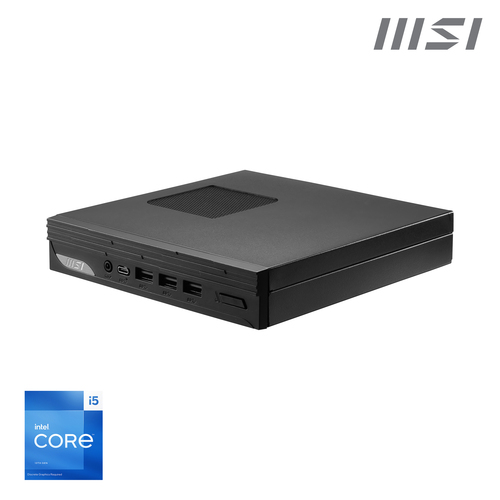

MSI PRO DP10 13M-i5 1340P BB
MSI

PRO DP10 13M-i5 1340P BB

Model PRO DP10 13M-i5 1340P BBPart no. PRO DP10 13M I5 1340P BBEAN 4711377070027

94 specifications
  • ProcessorIntel® Core™ i5
  • SpeedWi-Fi 6E (802.11ax)
  • TypeMini PC barebone
  • Weight1.1 kg
  • ColourBlack
  • Built-in processorYes
See all specifications

Overview

Processor
Intel® Core™ i5
Speed
Wi-Fi 6E (802.11ax)
Type
Mini PC barebone
Weight
1.1 kg
Colour
Black
Built-in processor
Yes
Brand
MSI
Model
PRO DP10 13M-i5 1340P BB
Part number
PRO DP10 13M I5 1340P BB
EAN / UPC
4711377070027
Also known as
MSI PRO DP10 13M Intel Core i5 1340P Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), IRIS XE Graphics/ThunderBolt 4/Type C/HDMI/DisplayPor

Specifications

94 specifications in 14 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation13th gen Intel® Core™ i5
Processor modeli5-1340P
Processor cores12
Processor threads16
Processor boost frequency4.6 GHz
Processor frequency4.6 GHz
Performance cores4
Efficient cores8
Processor lithography10 nm
Performance-core boost frequency4.6 GHz
Efficient-core boost frequency3.4 GHz
Processor cache18 MB

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Supported memory clock speeds2666,3200 MHz
ECCNo

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
SSD form factor2.5"
Storage drive interfaceM.2, Serial ATA III
NVMeYes
Number of storage drives supported3

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® Iris™ Graphics

Performance

Motherboard form factorNUC
Motherboard chipsetIntel SoC
Number of processors supported1
Compatible processor seriesIntel Core i5 13th Gen

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3
LAN controllerRealtek RTL8125-BG, Realtek RTL8125-CG

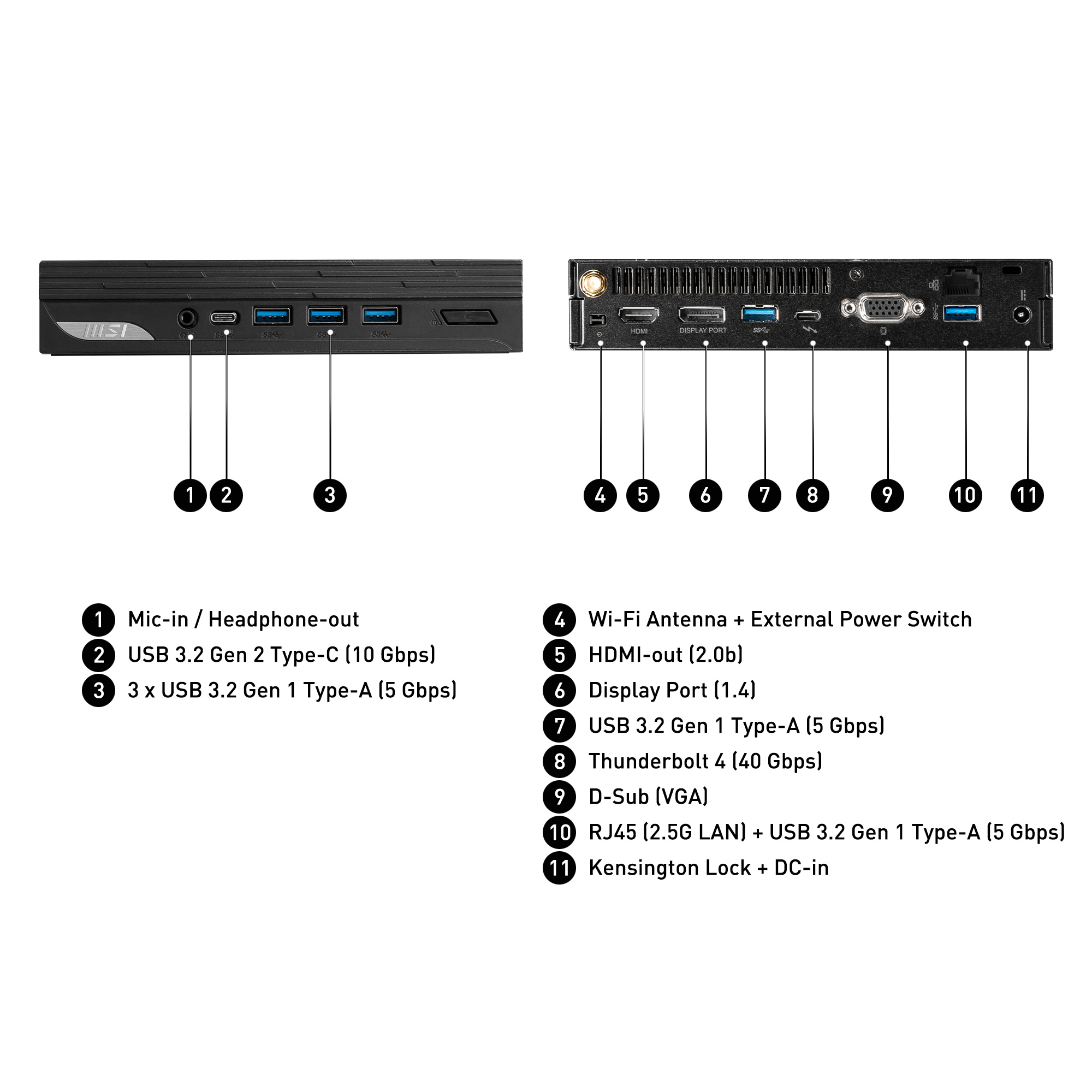

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity5
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Internal USB 2.0 ports quantity0
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
USB4 Gen 2x2 ports quantity0
HDMI ports quantity1
Mini HDMI ports quantity0
HDMI version2.0b
VGA (D-Sub) ports quantity1
DVI portNo
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Mini DisplayPorts quantity0
Microphone inNo
Headphone outputs0
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports1
Thunderbolt 4 ports quantity1
DC-in jackYes

Design

Chassis type1.1L sized PC
Product colourBlack
Cooling typeActive
On/off switchYes
VESA mountingYes
Panel mounting interface75 x 75 mm
Product typeMini PC barebone

Power

Power supply typeExternal AC adapter
Number of power supply units1
Power supply120 W

Operational conditions

Storage relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width178.8 mm
Depth34.5 mm
Height179 mm
Weight1.1 kg
Package width249 mm
Package depth102 mm
Package height301 mm
Package weight2.1 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
Display includedNo
Mouse includedNo
Keyboard includedNo

Other features

Country of originChina
Warranty period2 year(s)
