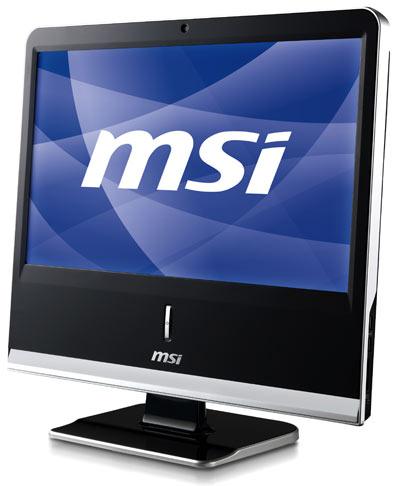

MSI NetOn AP1900
Model NetOn AP1900Part no. 936-6633-01S
47 specifications
- Display47 cm (18.5")
- Resolution1366 x 768 pixels
- ProcessorN270
- Weight4.76 kg
- Processor manufacturerIntel
- Maximum internal memory2 GB
Overview
- Display
- 47 cm (18.5")
- Resolution
- 1366 x 768 pixels
- Processor
- N270
- Weight
- 4.76 kg
- Processor manufacturer
- Intel
- Maximum internal memory
- 2 GB
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- NetOn AP1900
- Part number
- 936-6633-01S
- Also known as
- MSI NetOn AP1900 N270 Intel® 945GSE Express Socket F (1207) 1.6 GHz
Specifications
47 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor model | N270 |
| Processor cores | 1 |
| Processor threads | 2 |
| Processor frequency | 1.6 GHz |
| Processor lithography | 45 nm |
| Thermal Design Power (TDP) | 2.5 W |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Number of storage drives supported | 1 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GSE Express |
| Processor socket | Socket F (1207) |
| Built-in camera | Yes |
| Megapixel (approx.) | 1.3 MP |
| Audio output channels | 2.0 channels |
| Audio system | Realtek ALC888 |
Display
| Specification | Value |
|---|---|
| Display diagonal | 47 cm (18.5") |
| Display resolution | 1366 x 768 pixels |
| Touchscreen | No |
| Aspect ratio | 16:9 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| On/off switch | Yes |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | No |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XP |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.76 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 453 x 35 x 420 mm |
| HDD size | 2.5" |
| Number of SATA connectors | 1 |
| Processor system buses supported | 533 MHz |
