MSI N 8GL-002BEU
Model N 8GL-002BEUPart no. CUBI N 8GL-002BEUEAN 4719072559649
74 specifications
- ProcessorIntel® Pentium® Silver
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Processor
- Intel® Pentium® Silver
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- N 8GL-002BEU
- Part number
- CUBI N 8GL-002BEU
- EAN / UPC
- 4719072559649
- Also known as
- MSI Cubi N 8GL-002BEU 0.45L sized PC Black N5000 BGA 1090 1.1 GHz
Specifications
74 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Silver |
| Processor model | N5000 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 2.7 GHz |
| Processor frequency | 1.1 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| Processor codename | Gemini Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 8 GB |
| Memory channels | Single-channel |
| Supported memory clock speeds | 2400 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics 605 |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1090 |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| LAN controller | Realtek RTL8111H |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| PCI Express configurations | 1x4+1x2, 2x1+1x2+1x2, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.45L sized PC |
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 40 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 116 mm |
| Depth | 112 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
What people say
Reviews & ratings
MSI N 8GL-002BEU
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI N 8GL-002BEU
All pc/workstation barebones comparisons- MSI N 8GL-002BEU vsMSI N 8GL-001BEUCompare specs
- MSI N 8GL-002BEU vsMSI 3 Silent S-026BEUCompare specs
- MSI N 8GL-002BEU vsMSI Cubi N 8GL-005Compare specs
- MSI N 8GL-002BEU vsMSI Cubi 2 Plus-006BAUCompare specs

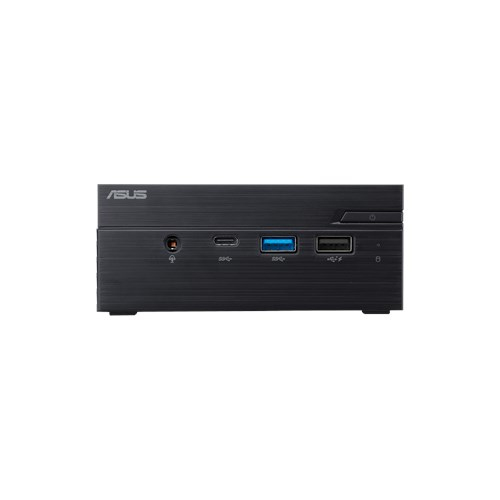

- MSI N 8GL-002BEU vsASUS PN40-BB021M PC/workstation barebone Mini PC Black N4000 BGA 1090Compare specs
