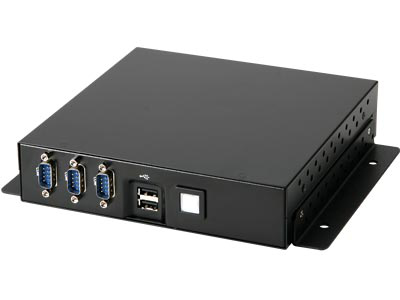

MSI MS-9A08 Black Intel GM45
Model MS-9A08Part no. 009A08-010R
36 specifications
- ProcessorIntel
- TypeMini PC barebone
- Weight1.07 kg
- ColourBlack
- Memory slots typeSO-DIMM
- Storage drive interfaceSerial ATA II
Overview
- Processor
- Intel
- Type
- Mini PC barebone
- Weight
- 1.07 kg
- Colour
- Black
- Memory slots type
- SO-DIMM
- Storage drive interface
- Serial ATA II
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- MS-9A08
- Part numbers
- 009A08-010R, MS9A08
- Also known as
- MSI MS-9A08 Black Intel GM45
Specifications
36 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
| Supported memory clock speeds | 533,667,800 MHz |
| Supported memory types | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA II |
| Number of storage drives supported | 4 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 4500MHD |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel GM45 |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Core™2 Duo |
| Audio system | Realtek ALC888 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Intel® 82567LM, Intel® 82574L |
| Networking features | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| DVI port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 1 |
| Mini PCI Express slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XPP/XPE |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, C-tick, BSMI, VCCI, RoHS |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 90 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.07 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 180 x 180 x 44 mm |
| I/O ports | 3x RS232 5V/12V, 1x RS232/485/422 5V/12V |
