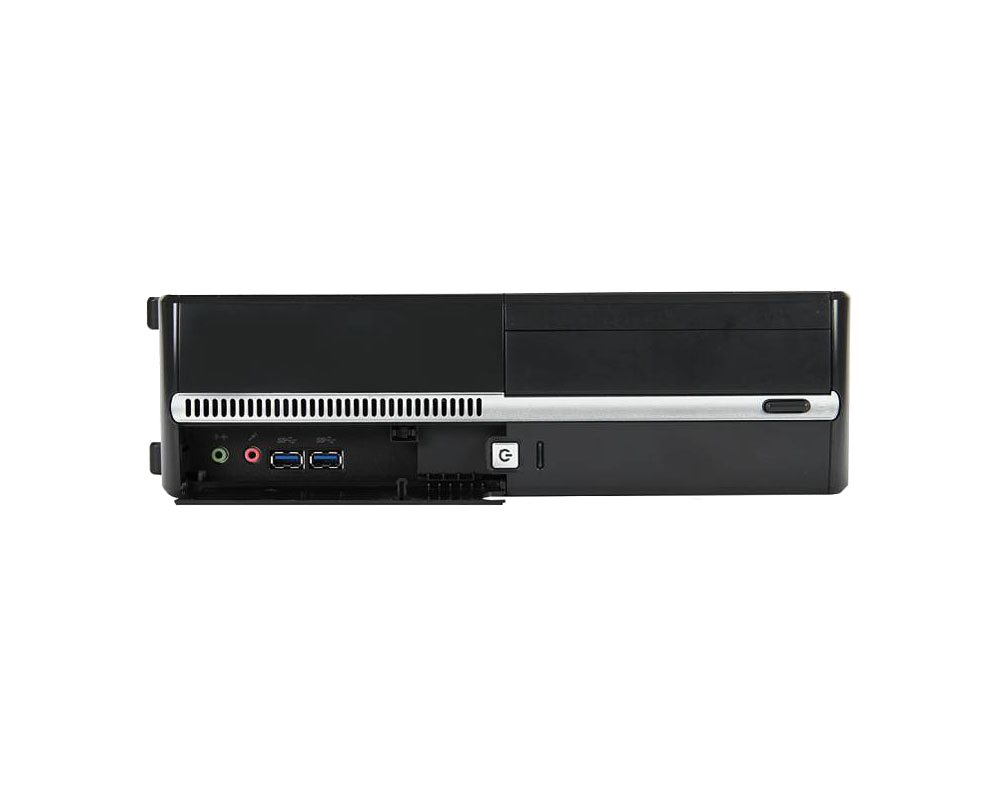

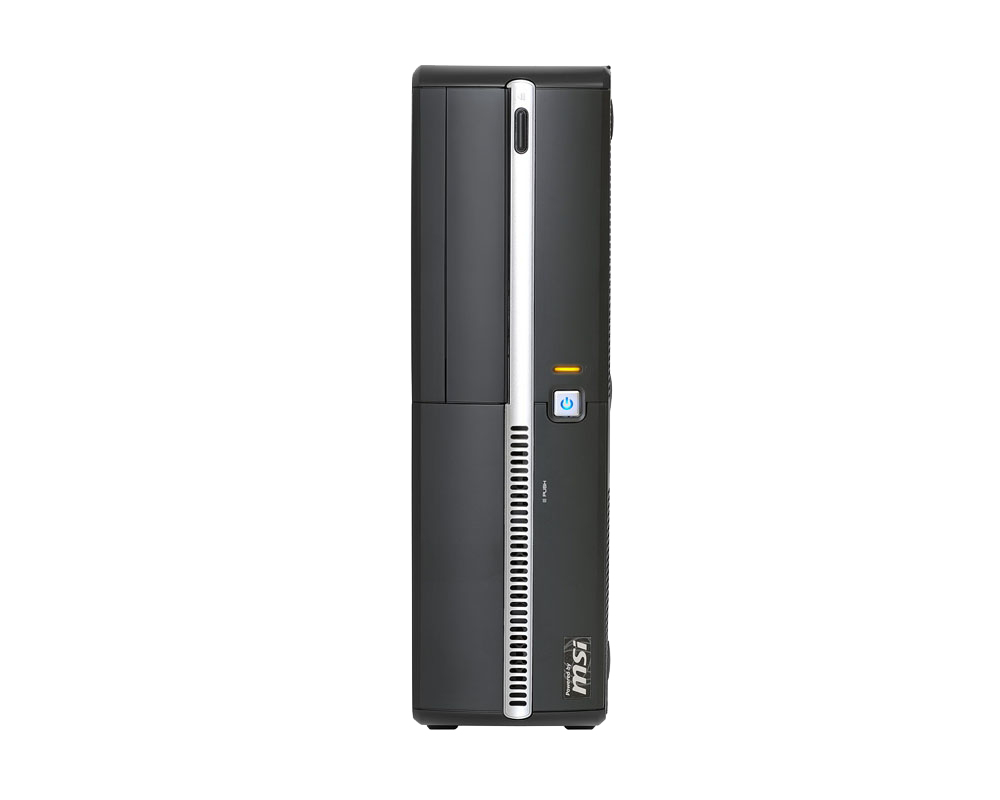

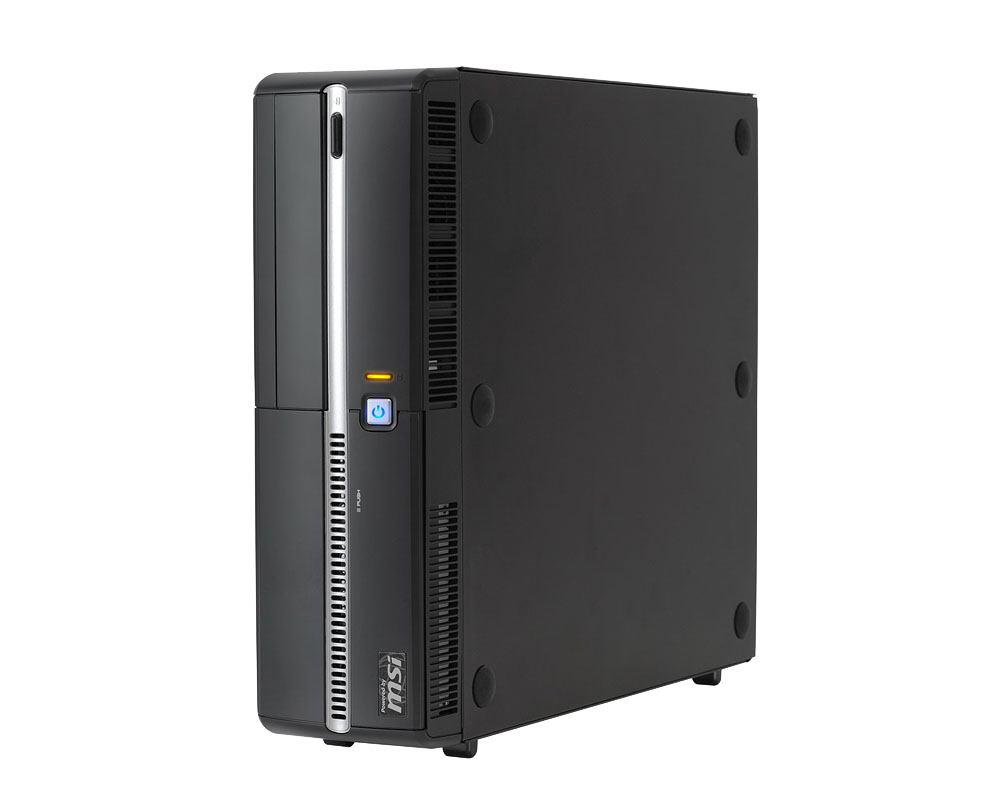

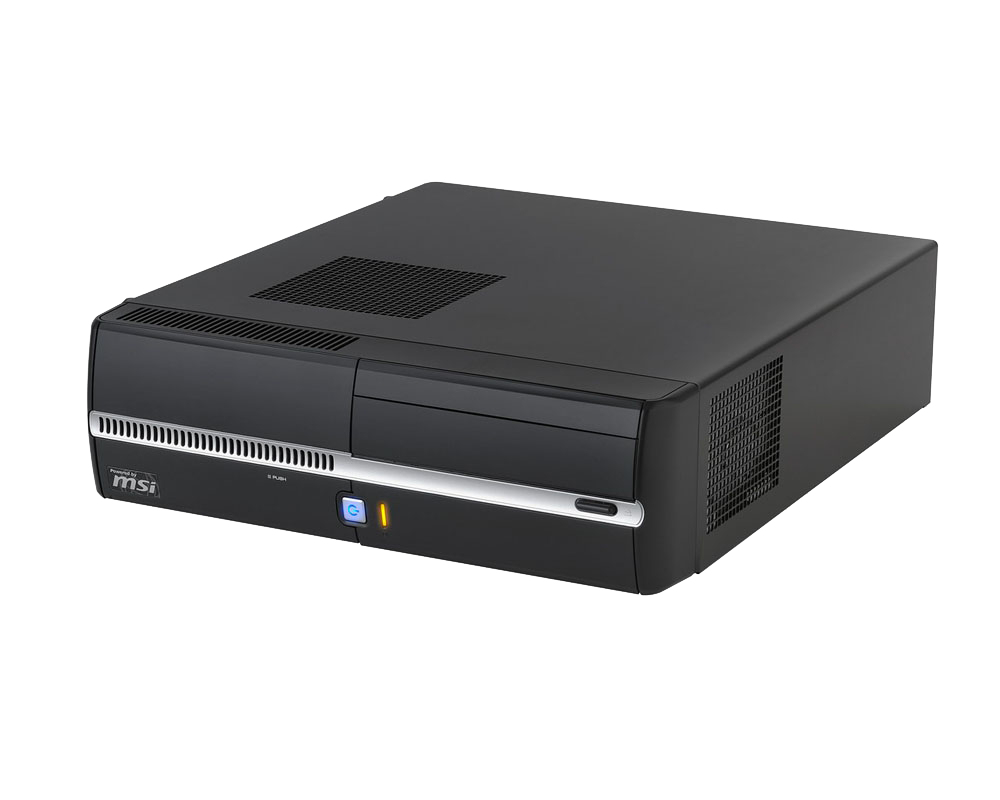

MSI Hetis H81-001BEU
Model Hetis H81-001BEUPart no. HETIS H81-001BEUEAN 4719072318161
34 specifications
- ProcessorIntel
- TypePC barebone
- OSNo
- ColourBlack
- Memory slots typeDIMM
- Storage drive sizes supported3.5"
Overview
- Processor
- Intel
- Type
- PC barebone
- OS
- No
- Colour
- Black
- Memory slots type
- DIMM
- Storage drive sizes supported
- 3.5"
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- Hetis H81-001BEU
- Part number
- HETIS H81-001BEU
- EAN / UPC
- 4719072318161
- Also known as
- MSI Hetis H81-001BEU Black Intel® H81 LGA 1150 (Socket H3)
Specifications
34 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 3.5" |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| Number of displays supported | 2 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H81 |
| Processor socket | LGA 1150 (Socket H3) |
| Number of processors supported | 1 |
| Compatible processor series | Intel® Pentium® |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |

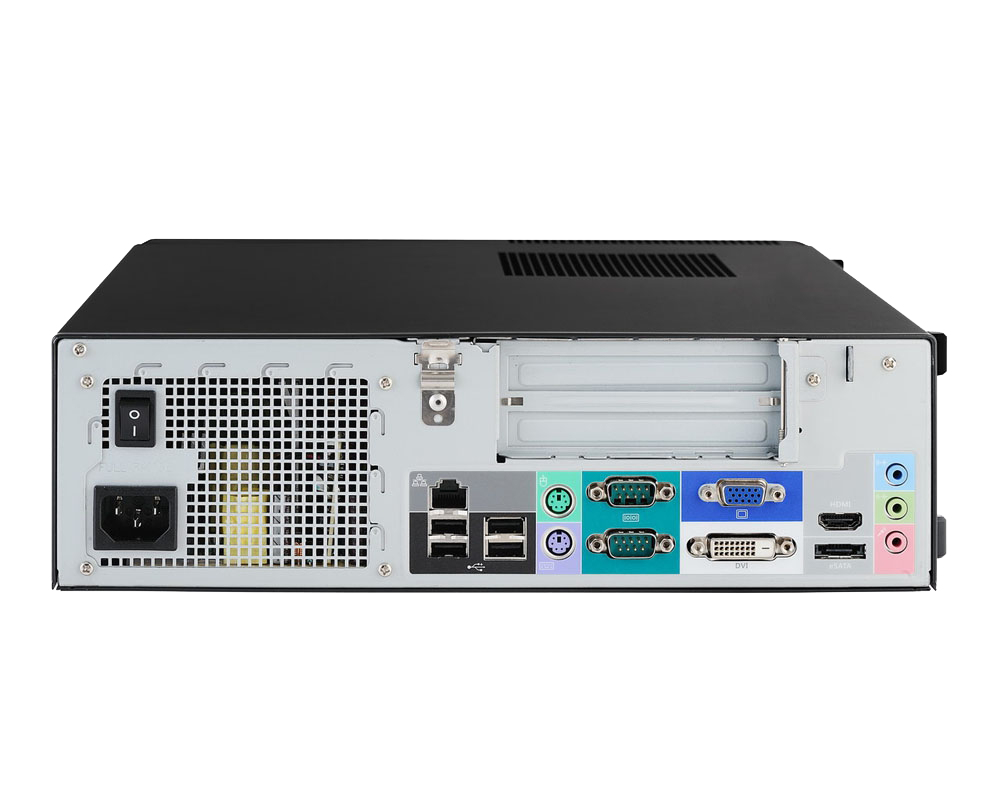

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Serial ports quantity | 2 |
| eSATA ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Product type | PC barebone |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 8.1 |
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply | 270 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 330 mm |
| Depth | 94 mm |
| Height | 320 mm |
Other features
| Specification | Value |
|---|---|
| Maximum HDD capacity | 2 TB |
What people say
Reviews & ratings
MSI Hetis H81-001BEU
No reviews yet
Be the first to tell others how MSI Hetis H81-001BEU works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI Hetis H81-001BEU
All pc/workstation barebones comparisons- MSI Hetis H81-001BEU vsMSI Hetis H81Compare specs

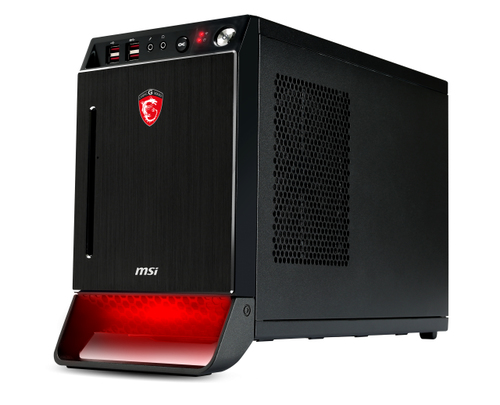

- MSI Hetis H81-001BEU vsMSI NIGHTBLADE-006BEU PC/workstation barebone Mini-Tower Black Intel® Z87 LGA 1155 (Socket H2)Compare specs
- MSI Hetis H81-001BEU vsMSI Wind Box DC110-X-WC847XXXXCompare specs
- MSI Hetis H81-001BEU vsMSI DC100-X-WE450XXXX PC/workstation barebone White E-450 AMD A50MCompare specs

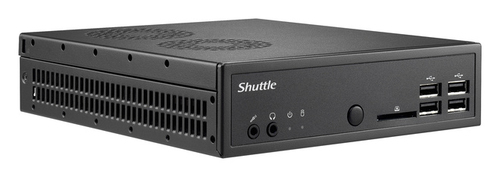

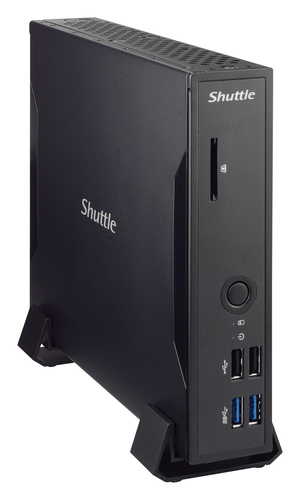

- MSI Hetis H81-001BEU vsShuttle DS81 PC/workstation barebone Net-top Black Intel® H81 LGA 1150 (Socket H3)Compare specs
- MSI Hetis H81-001BEU vsShuttle DS437T PC/workstation barebone Black 1037U Intel® NM70 Express BGA 1023Compare specs

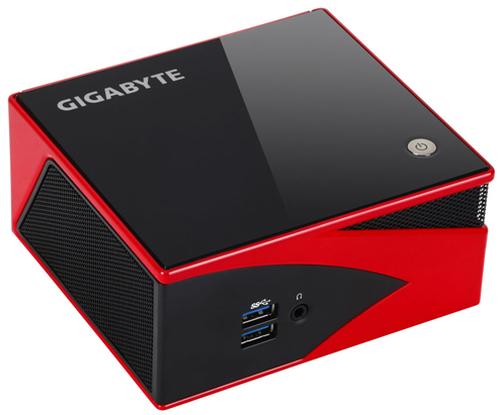

- MSI Hetis H81-001BEU vsGIGABYTE GB-BXA8G-8890 PC/workstation barebone USFF Black, Red A8-5557M Socket FP2 (µBGA-827)Compare specs
