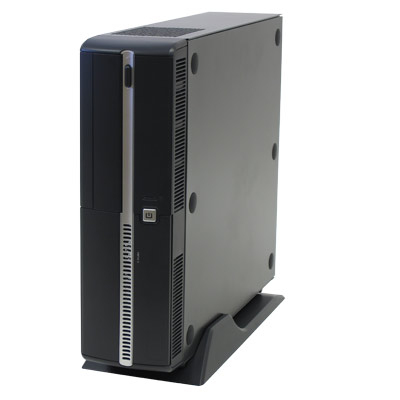

HETIS 945GC-E BLACK
Model HETIS 945GC-E BLACK
30 specifications
- ColourBlack
- Memory slots typeDIMM
- On-board graphics cardYes
- Motherboard chipsetIntel® 945GC Express
- Networking featuresIntel Gigabit LAN
- USB 2.0 ports quantity6
Overview
- Colour
- Black
- Memory slots type
- DIMM
- On-board graphics card
- Yes
- Motherboard chipset
- Intel® 945GC Express
- Networking features
- Intel Gigabit LAN
- USB 2.0 ports quantity
- 6
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- HETIS 945GC-E BLACK
- Part number
- HETIS 945GC-E BLACK
- Also known as
- MSI HETIS 945GC-E BLACK PC/workstation barebone Low Profile (Slimline) Intel® 945GC Express LGA 775 (Socket T)
Specifications
30 specifications in 7 groups
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 950 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® 945GC Express |
| Processor socket | LGA 775 (Socket T) |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC888 |
Network
| Specification | Value |
|---|---|
| Networking features | Intel Gigabit LAN |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Firewire (IEEE 1394) ports | 2 |
| PS/2 ports quantity | 2 |
| S/PDIF out port | Yes |
| Serial ports quantity | 2 |
| TV-out type | S-Video |
Design
| Specification | Value |
|---|---|
| Chassis type | Low Profile (Slimline) |
| Product colour | Black |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 320 x 330 x 94 mm |
| Number of Parallel ATA connectors | 2 |
| Number of SATA connectors | 2 |
| Drive bays | 1 x 5.25", 1 x 3.5" |
| Expansion slots | 2 x PCI |
| I/O ports | RCA Out x 1 |
