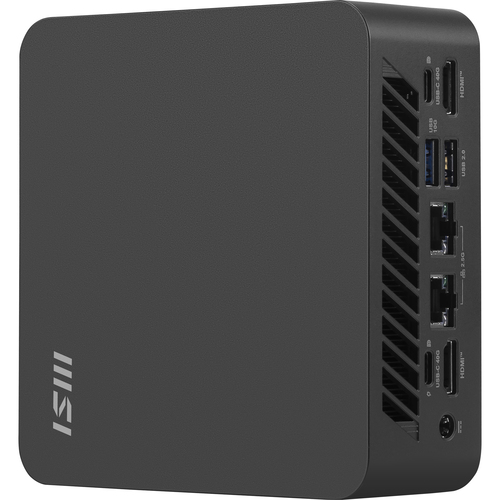

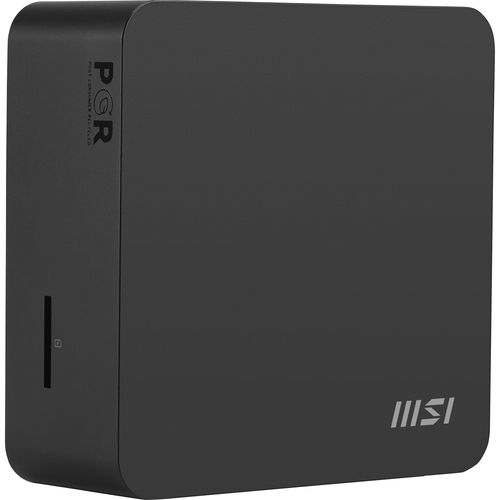

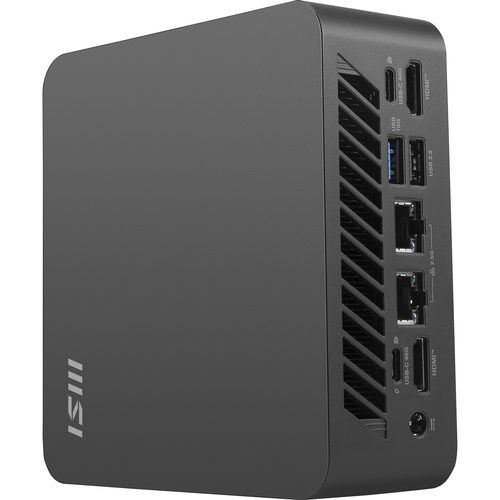

MSI Cubi Z 8M-036BEU
MSI

Cubi Z 8M-036BEU

Model Cubi Z 8M-036BEUPart no. CUBI Z 8M-036BEUEAN 4711377434881

86 specifications
  • ProcessorAMD Ryzen™ 7
  • GraphicsNot available
  • SpeedWi-Fi 6E (802.11ax)
  • TypeMini PC barebone
  • OSNo
  • Weight790 g
See all specifications

Overview

Processor
AMD Ryzen™ 7
Graphics
Not available
Speed
Wi-Fi 6E (802.11ax)
Type
Mini PC barebone
OS
No
Weight
790 g
Brand
MSI
Model
Cubi Z 8M-036BEU
Part number
CUBI Z 8M-036BEU
EAN / UPC
4711377434881
Also known as
MSI Cubi Z 8M-036BEU Cube Black 255 AMD SoC 3.8 GHz Built-in speaker(s)

Specifications

86 specifications in 17 groups

Processor

Built-in processorYes
Processor manufacturerAMD
Processor familyAMD Ryzen™ 7
Processor generationAMD Ryzen 200 Series
Processor model255
Processor cores8
Processor threads16
Processor frequency3.8 GHz
L2 cache8 MB
L3 cache16 MB
Thermal Design Power (TDP)45 W

Memory

Internal memory installedNo
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
ECCNo
Non-ECCNo

Storage

Storage drives installedNo
Supported storage drive typesHDD & SSD
Storage drive sizes supportedM.2
NVMeYes
Card reader integratedYes
Compatible memory cardsNot supported

Graphics

On-board graphics cardNo
On-board graphics card modelNot available
Discrete graphics card modelNot available

Performance

Motherboard chipsetAMD SoC
Number of processors supported1
Trusted Platform Module (TPM)Yes
Trusted Platform Module (TPM) version2.0
Audio output channels2.0 channels

Audio

Built-in speaker(s)Yes

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
WLAN controller modelAMD RZ616
BluetoothYes
Bluetooth Low Energy (BLE)Yes
Bluetooth version5.4
LAN controllerRealtek RTL8125B

Ports & interfaces

USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB4 Gen 2x2 ports quantity2
HDMI ports quantity2
HDMI version2.1
VGA (D-Sub) ports quantity0
DVI portNo
Microphone inNo
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports1
S/PDIF out portNo
Thunderbolt 3 ports quantity0
DC-in jackYes

Design

Chassis typeCube
Product colourBlack
Cooling typeActive
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeMini PC barebone

Certificates

Waste Electrical and Electronic Equipment (WEEE) complianceYes

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UL

Software

Operating system installedNo

Power

Power supply typeExternal AC adapter

Operational conditions

Operating relative humidity (H-H)0 - 85%
Operating temperature (T-T)0 - 35 °C
Storage relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width136 mm
Depth132 mm
Height50.1 mm
Weight790 g
Package width469 mm
Package depth221 mm
Package height517 mm
Package weight2 kg

Packaging content

Display includedNo
Mouse includedNo
Keyboard includedNo

Other features

Warranty period3 year(s)
