Cubi NUC TWG N250 BB
Model Cubi NUC TWG N250 BBPart no. CUBI NUC TWG-002BEUEAN 4711377431125
61 specifications
- ProcessorIntel® N
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC barebone
- OSNo
- Weight540 g
Overview
- Processor
- Intel® N
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC barebone
- OS
- No
- Weight
- 540 g
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- Cubi NUC TWG N250 BB
- Part number
- CUBI NUC TWG-002BEU
- EAN / UPC
- 4711377431125, 4711377434393
- Also known as
- MSI Cubi NUC TWG N250 BB (Intel N250, NO RAM, NO SSD, NO OS) - Barebone, NUC, USFF, Mini Computer, Intel Graphics/DDR5/Type-C/Dual HDMI/Dual LAN/WiFi 6E/BT 5.3/
Specifications
61 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® N |
| Processor model | N250 |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.8 GHz |
| Processor frequency | 3.8 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
Memory
| Specification | Value |
|---|---|
| Internal memory installed | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Storage drives installed | No |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1264 |
| Trusted Platform Module (TPM) | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |

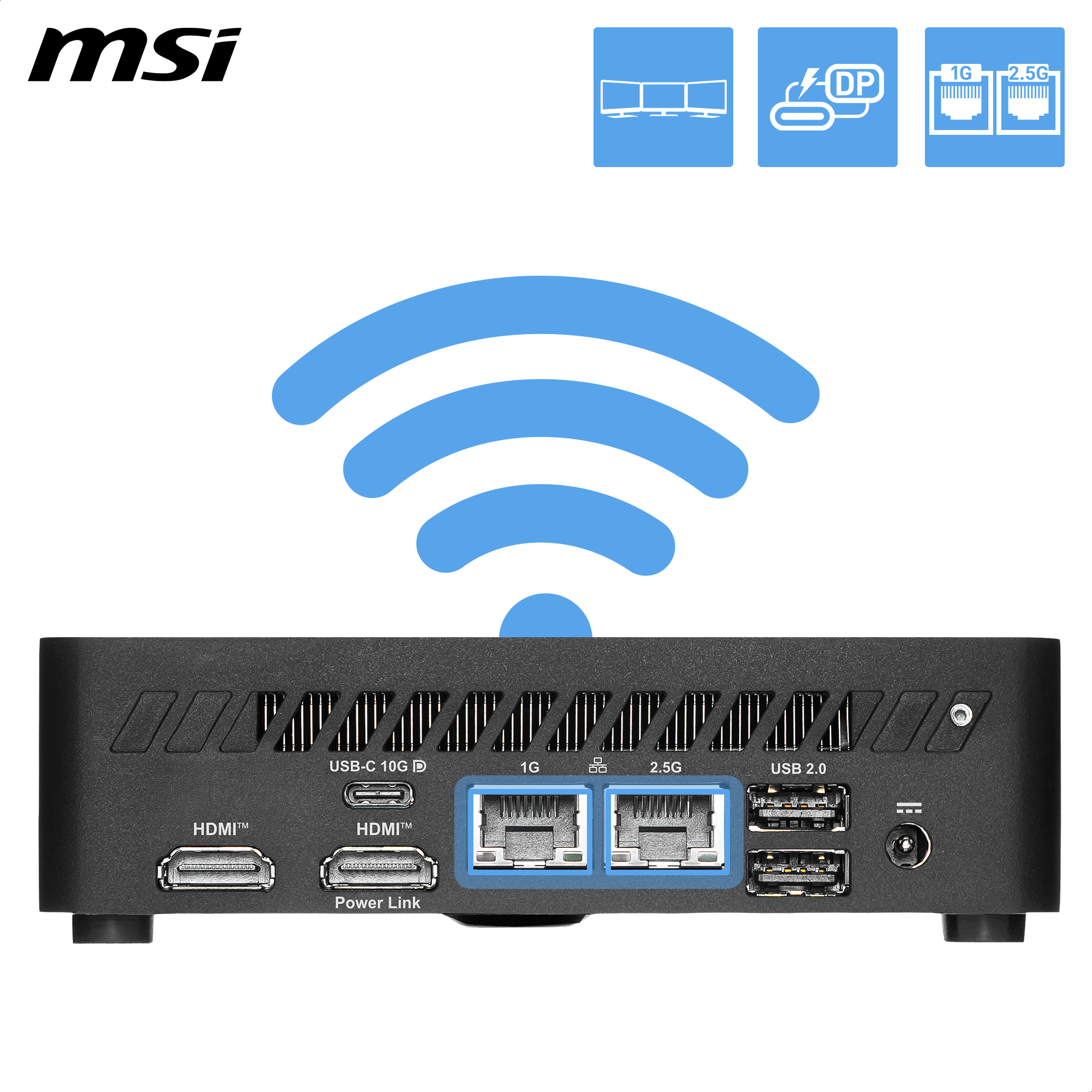

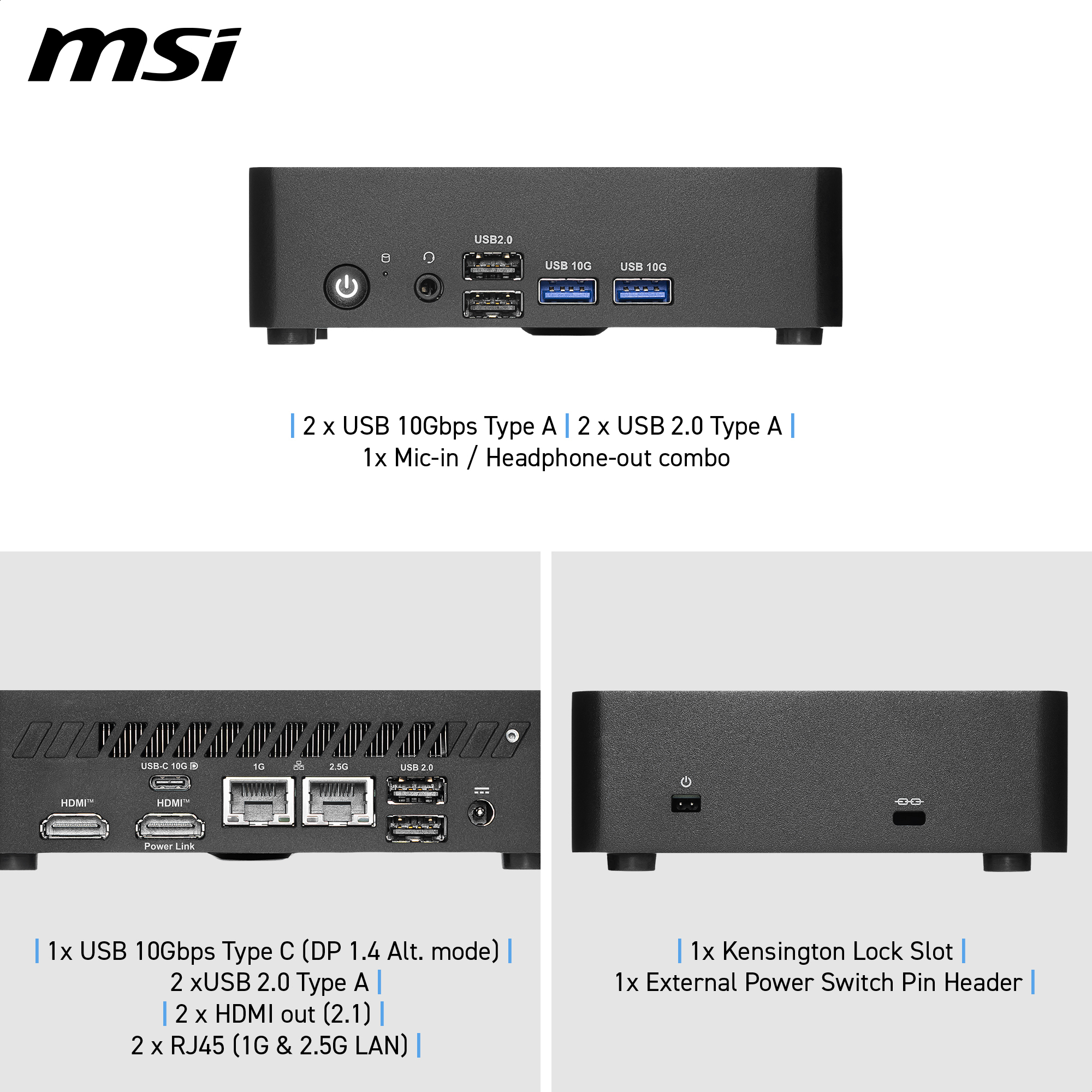

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 3 ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | USFF |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |

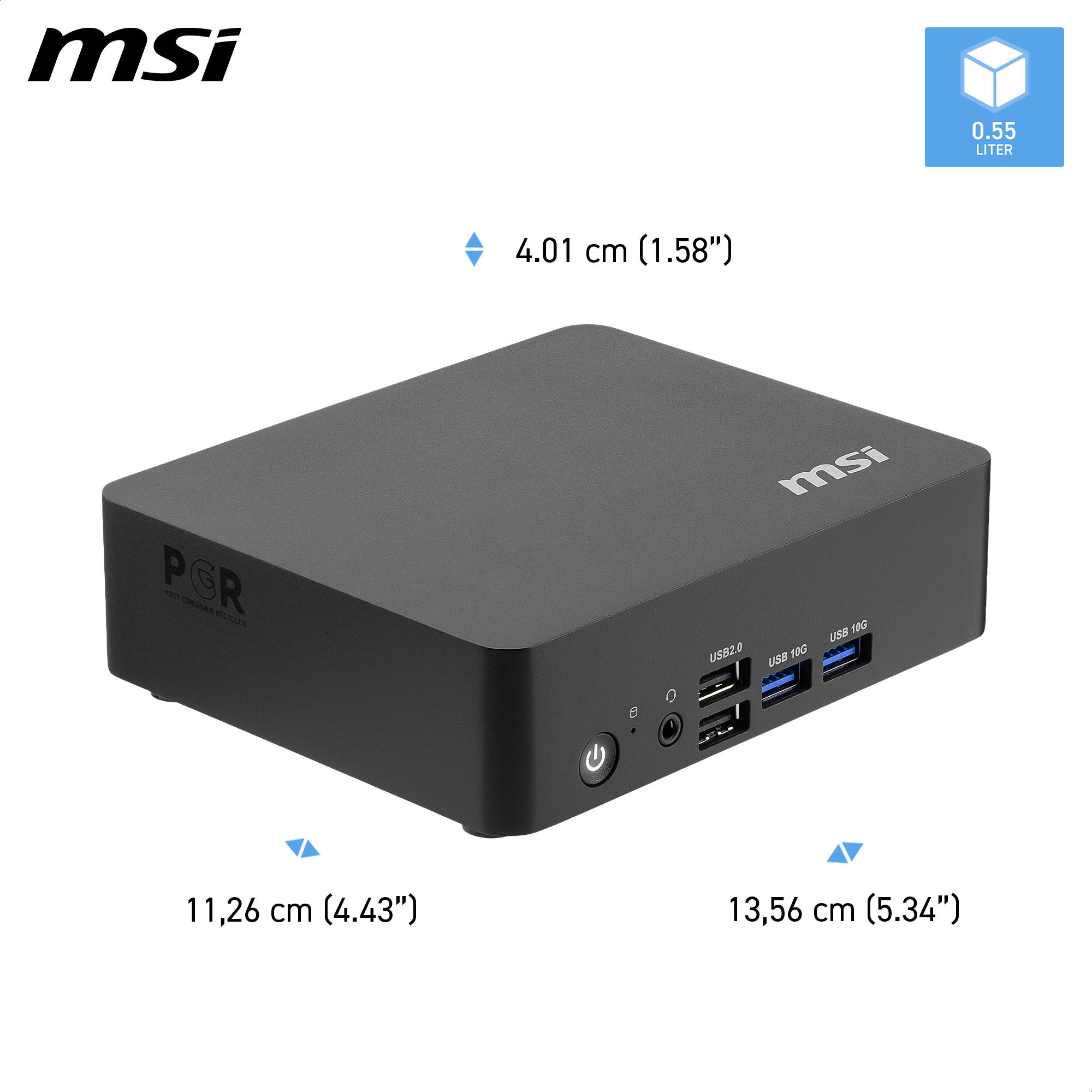

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 112.6 mm |
| Depth | 135.6 mm |
| Height | 40.1 mm |
| Weight | 540 g |
| Package weight | 1.29 kg |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
Other features
| Specification | Value |
|---|---|
| Warranty period | 3 year(s) |
