MSI CUBI N ADL S N100 BB
MSI

CUBI N ADL S N100 BB

Model CUBI N ADL S N100 BBEAN 4711377199056

86 specifications
  • ProcessorN100
  • SpeedWi-Fi 5 (802.11ac)
  • TypeMini PC barebone
  • Weight540 g
  • ColourBlack
  • Built-in processorYes
See all specifications

Overview

Processor
N100
Speed
Wi-Fi 5 (802.11ac)
Type
Mini PC barebone
Weight
540 g
Colour
Black
Built-in processor
Yes
Brand
MSI
Model
CUBI N ADL S N100 BB
Part number
CUBI N ADL S N100 BB
EAN / UPC
4711377199056
Also known as
MSI Cubi N ADL S Intel N100 Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), Fanless/UHD Graphics/Type C/HDMI/DisplayPort/Dual LAN/WiFi 5/B

Specifications

86 specifications in 14 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor modelN100
Processor cores4
Processor threads4
Processor frequency3.4 GHz
Processor lithography10 nm

Memory

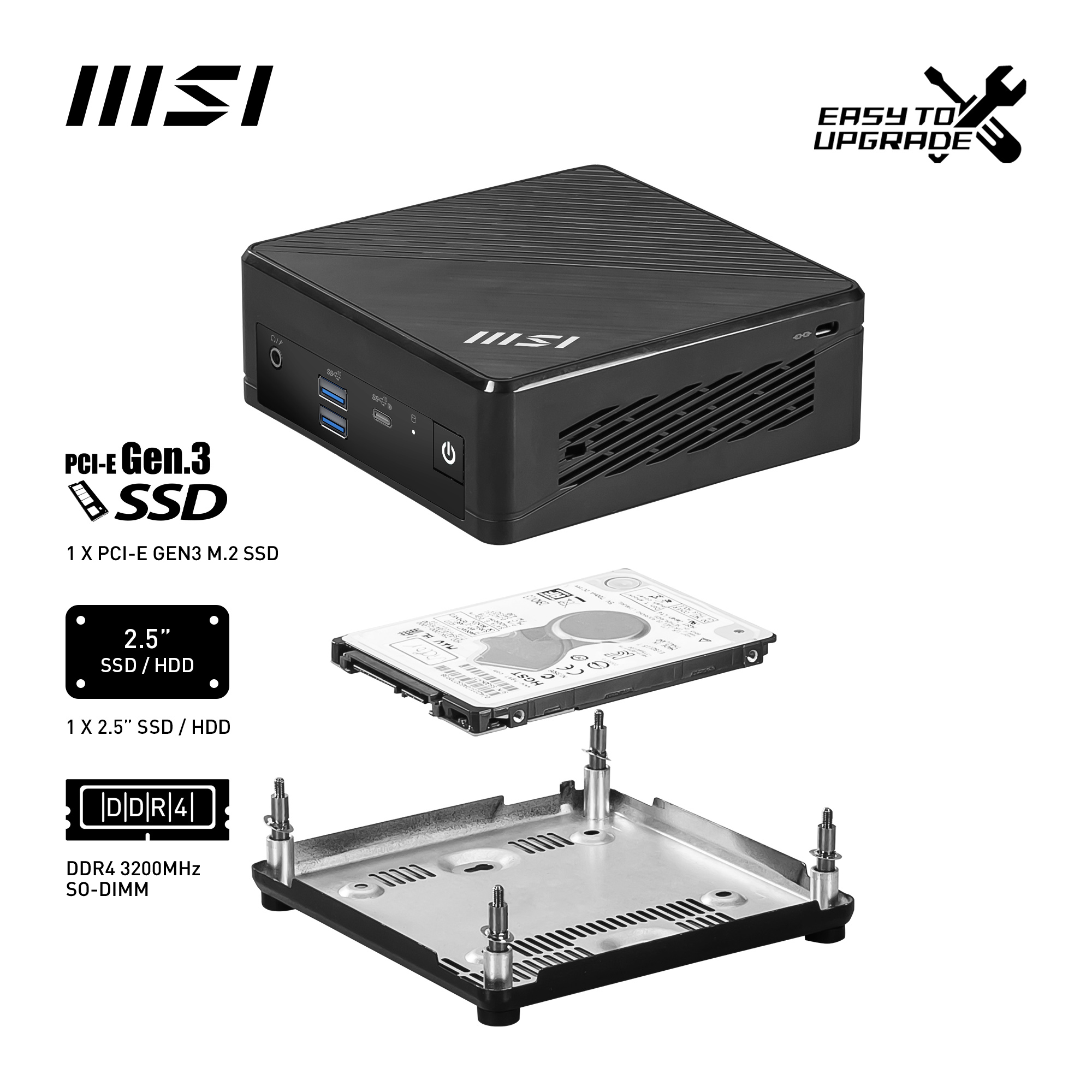

Memory slots typeSO-DIMM
Number of memory slots1
Maximum internal memory16 GB
Supported memory clock speeds3200 MHz

Storage

Supported storage drive typesSSD
Storage drive sizes supportedM.2
SSD form factorM.2
Storage drive interfaceM.2
NVMeYes
Number of storage drives supported1
Card reader integratedNo

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics

Performance

Motherboard form factorNUC
Motherboard chipsetIntel SoC
Number of processors supported1
Compatible processor seriesIntel Processor N

Audio

Built-in speaker(s)No

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standardsWi-Fi 5 (802.11ac)
WLAN controller modelIntel Dual Band Wireless-AC 9462
BluetoothYes
Bluetooth version5.1
LAN controllerRealtek RTL8111H

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Internal USB 2.0 ports quantity0
Internal USB 3.2 Gen 1 (3.1 Gen 1) ports quantity0
USB4 Gen 2x2 ports quantity0
HDMI ports quantity1
Mini HDMI ports quantity0
HDMI version2.1
VGA (D-Sub) ports quantity0
DVI portNo
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Mini DisplayPorts quantity0
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports2
DC-in jackYes

Expansion slots

Number of M.2 (M) slots1

Design

Chassis type0.66L sized PC
Product colourBlack

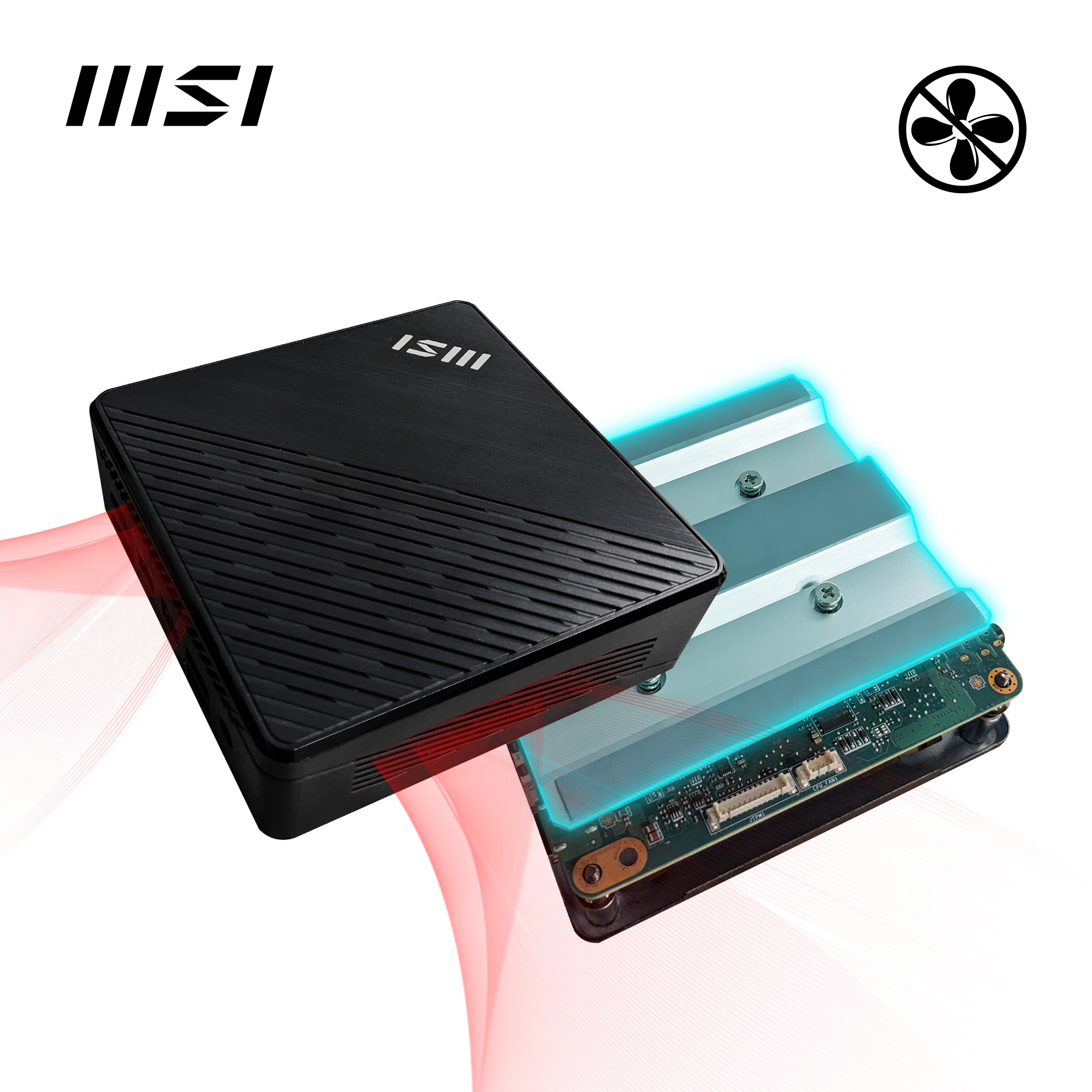

Cooling typePassive
On/off switchYes
LED indicatorsSystem
Housing materialPlastic
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone

Power

Power supply typeExternal AC adapter
Number of power supply units1
Power supply65 W

Weight & dimensions

Width124 mm
Depth124 mm
Height53.7 mm
Weight540 g
Package width205 mm
Package depth220 mm
Package height94 mm
Package weight1.39 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
Display includedNo
Mouse includedNo
Keyboard includedNo

Other features

Country of originChina
Warranty period2 year(s)
