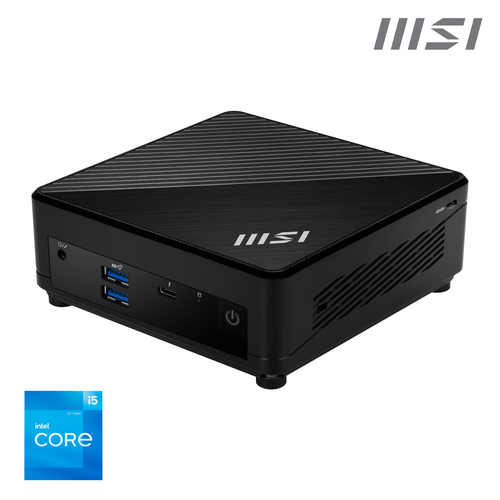

MSI CUBI 5 12M I5 1235U BB
MSI

CUBI 5 12M I5 1235U BB

Model CUBI 5 12M I5 1235U BBEAN 4711377028387

98 specifications
  • ProcessorIntel® Core™ i5
  • SpeedWi-Fi 6E (802.11ax)
  • TypeMini PC barebone
  • OSNo
  • Weight550 g
  • ColourBlack
See all specifications

Overview

Processor
Intel® Core™ i5
Speed
Wi-Fi 6E (802.11ax)
Type
Mini PC barebone
OS
No
Weight
550 g
Colour
Black
Brand
MSI
Model
CUBI 5 12M I5 1235U BB
Part number
CUBI 5 12M I5 1235U BB
EAN / UPC
4711377028387, 4711377028998
Also known as
MSI Cubi 5 12M Intel Core i5 1235U Barebone, NUC, SFF, Mini Computer, HTPC, (NO RAM, NO Storage, NO OS), IRIS XE Graphics/ThunderBolt 4/Type C/HDMI/DisplayPort/

Specifications

98 specifications in 17 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i5
Processor generation12th gen Intel® Core™ i5
Processor modeli5-1235U
Processor cores10
Processor threads12
Processor boost frequency4.4 GHz
Processor frequency4.4 GHz
Performance cores2
Efficient cores8
Processor lithography7 nm
Performance-core boost frequency4.4 GHz
Efficient-core boost frequency3.3 GHz
Processor cache12 MB

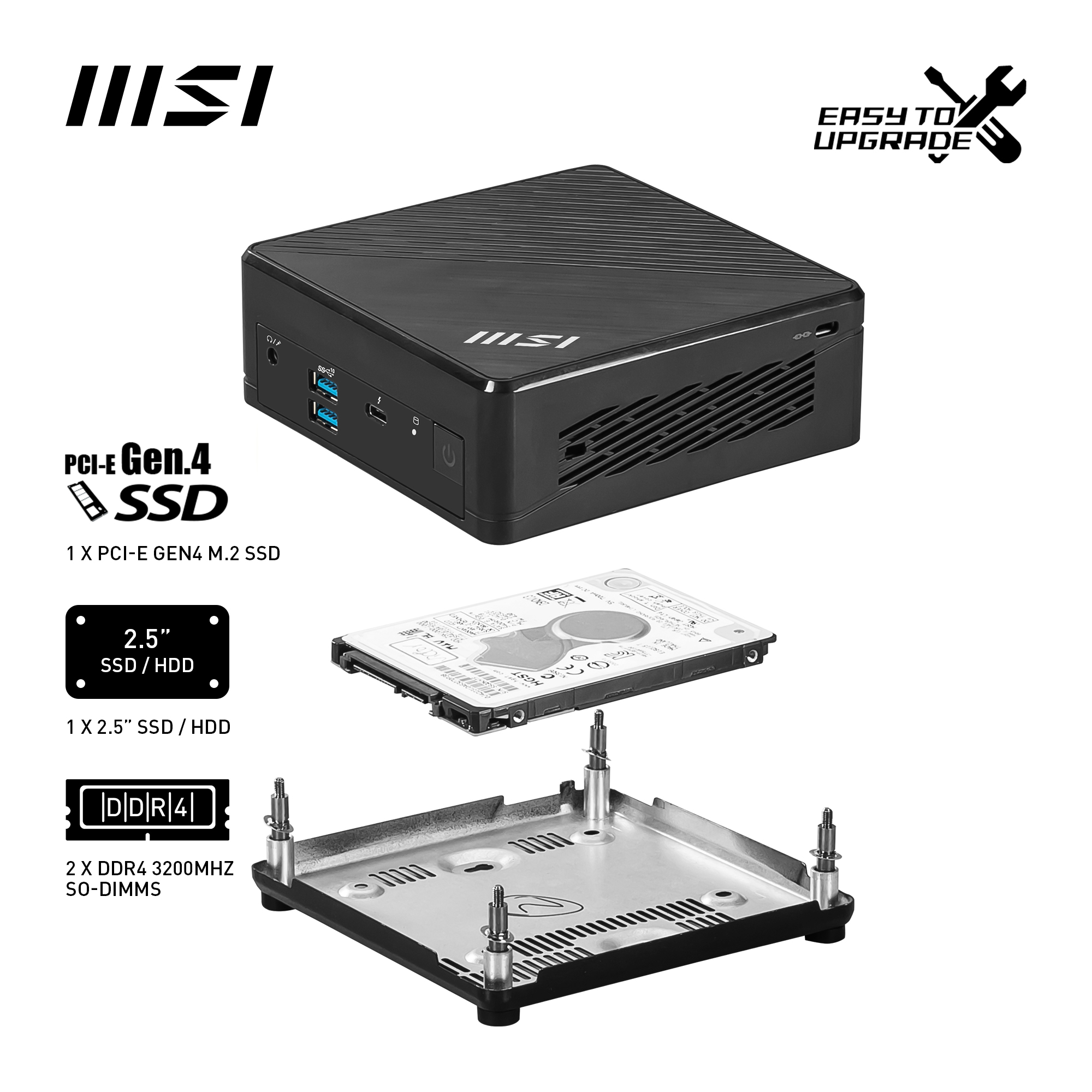

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Memory channelsDual-channel
Supported memory clock speeds3200 MHz

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
SSD form factor2.5"
Storage drive interfaceM.2, Serial ATA III
NVMeYes
Number of storage drives supported2

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics
Number of displays supported3

Performance

Motherboard form factorNUC
Motherboard chipsetIntel SoC
Number of processors supported1

Audio

Built-in speaker(s)No

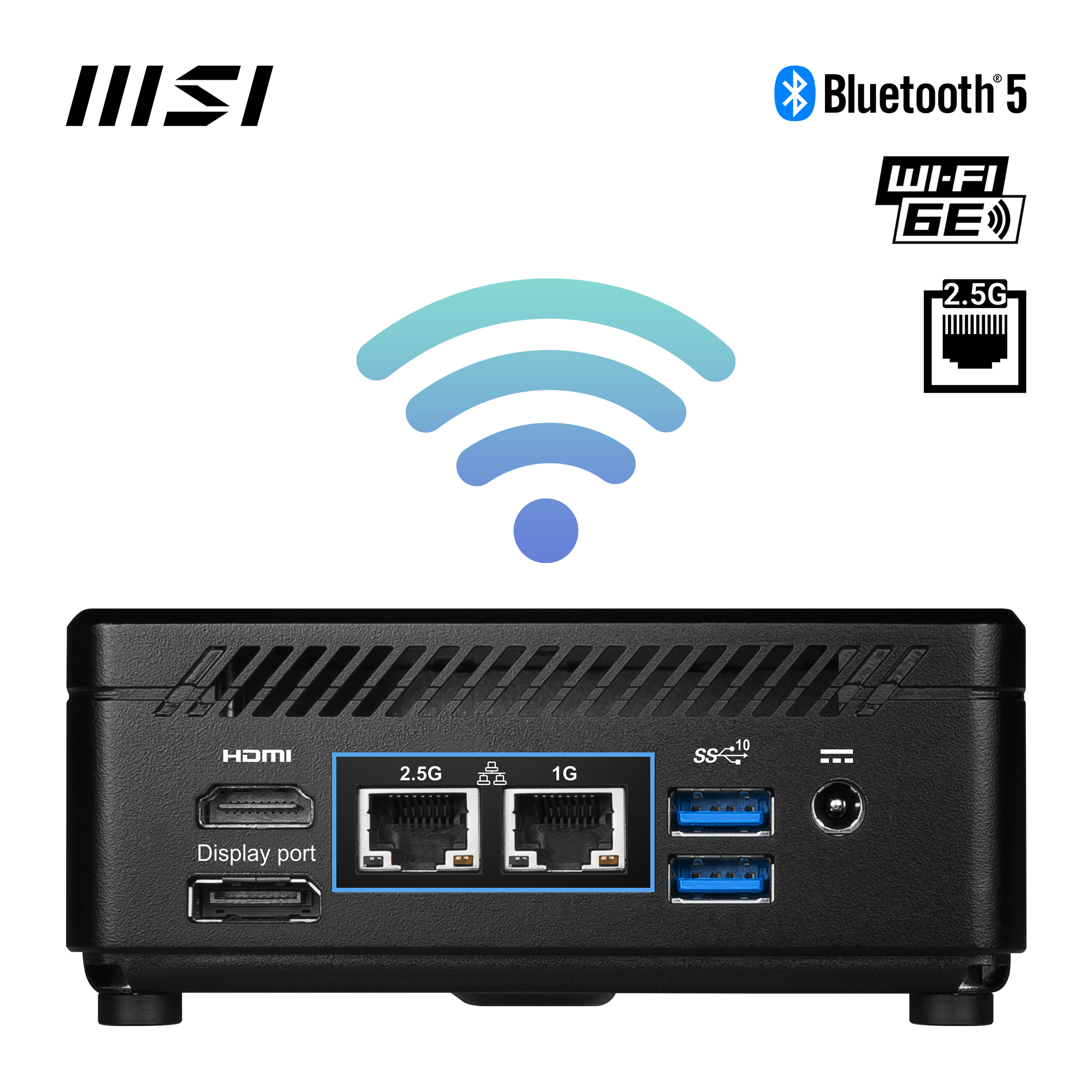

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3
LAN controllerRealtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG

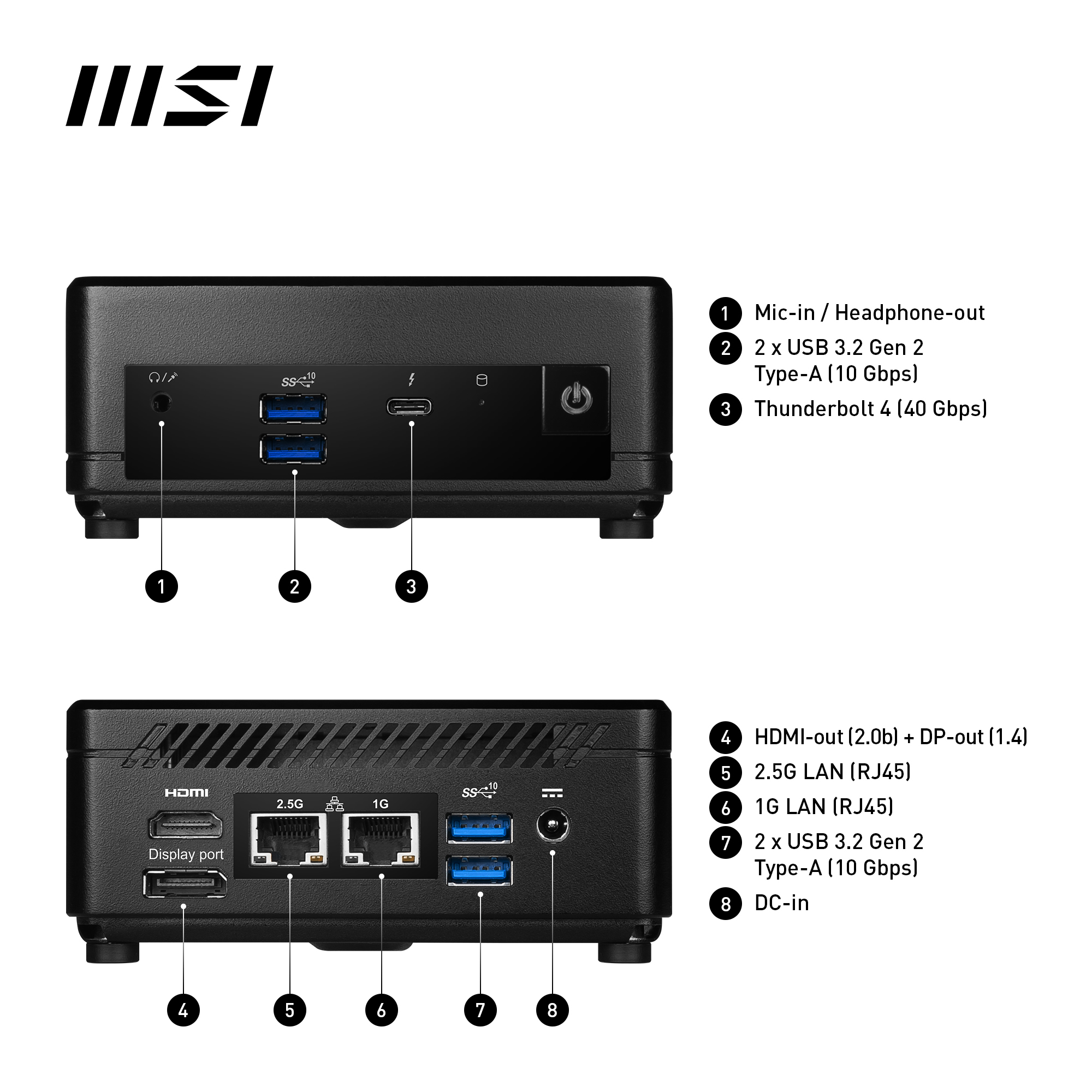

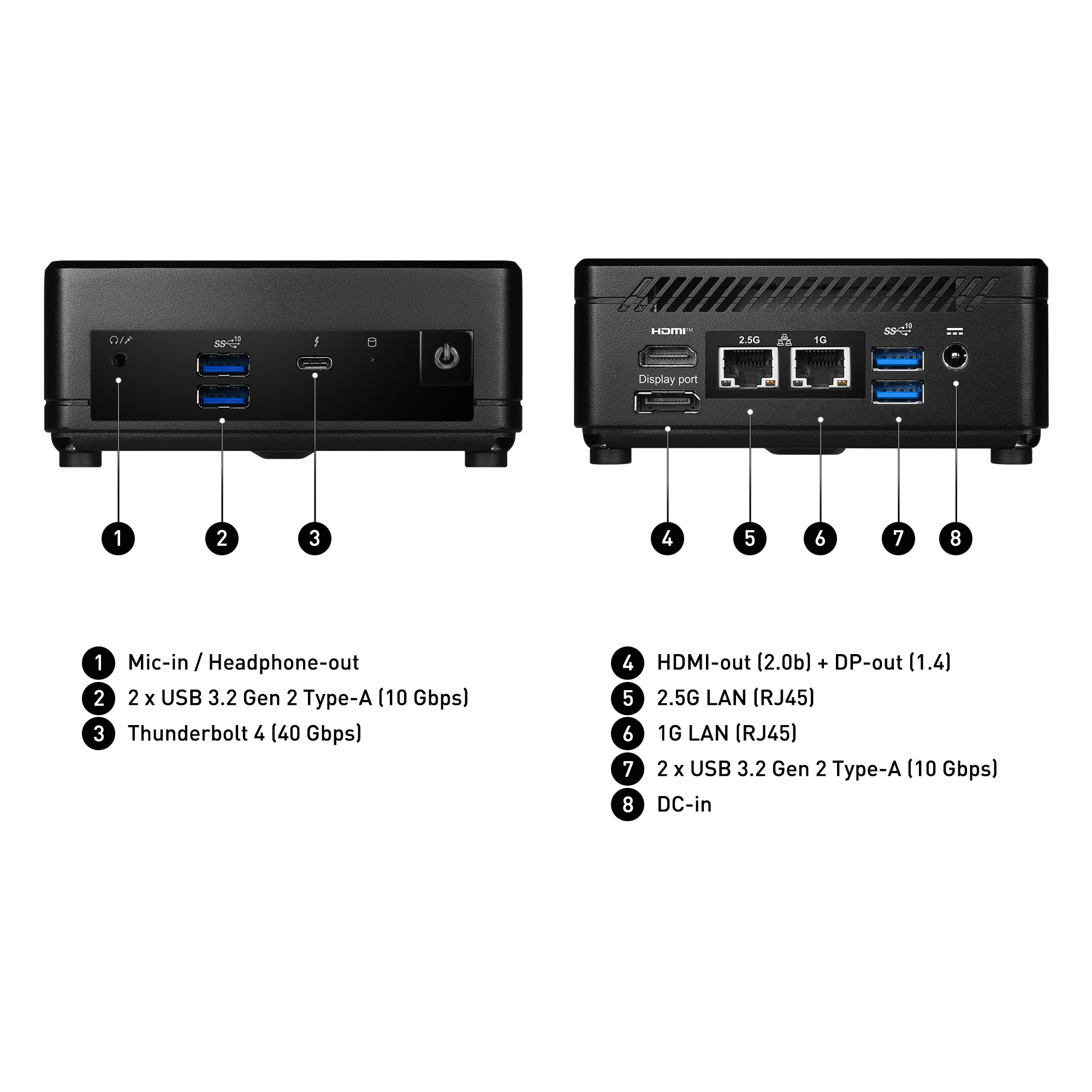

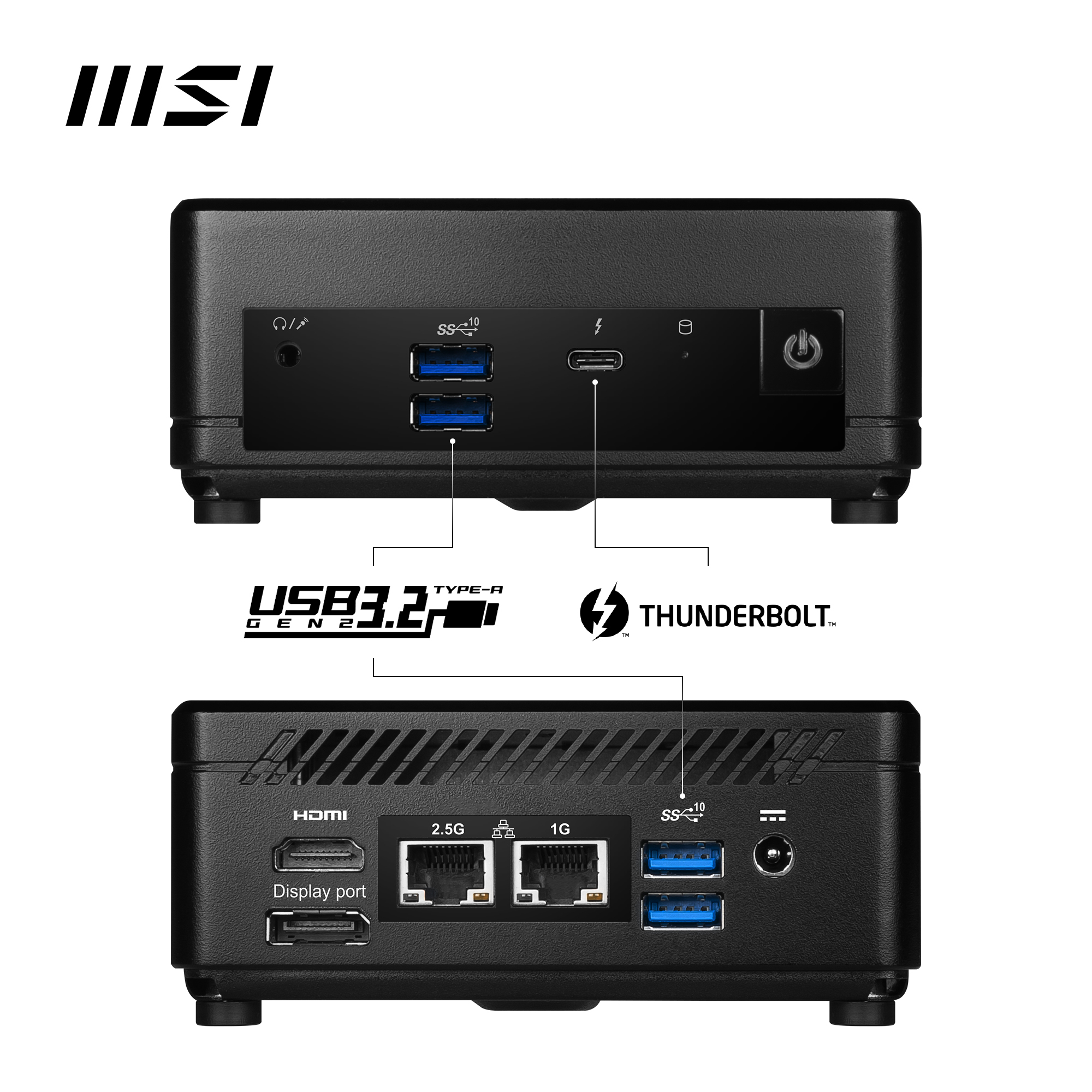

Ports & interfaces

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
HDMI ports quantity1
Mini HDMI ports quantity0
HDMI version2.0b
VGA (D-Sub) ports quantity0
DVI portNo
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
Mini DisplayPorts quantity0
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports2
Thunderbolt 4 ports quantity1
DC-in jackYes

Expansion slots

Number of M.2 (M) slots1

Design

Chassis type0.66L sized PC
Product colourBlack
Cooling typeActive
On/off switchYes
LED indicatorsSystem
Housing materialPlastic
Cable lock slotYes
Cable lock slot typeKensington

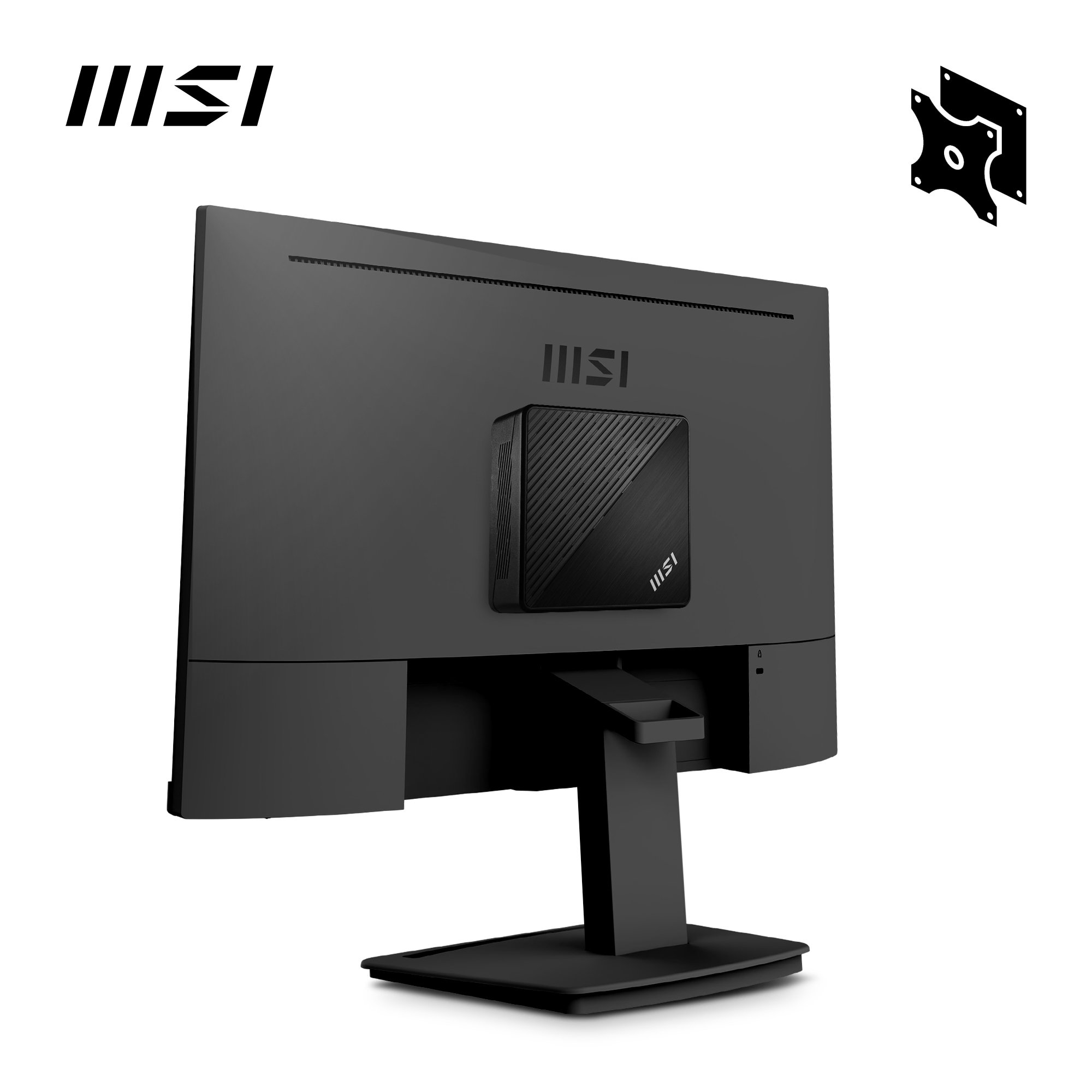

VESA mountingYes
Panel mounting interface75 x 75,100 x 75 mm
Product typeMini PC barebone

Software

Operating system installedNo

Certificates

CertificationFCC, CB/CE, UL & CUL, VCCI, RCM

Power

Power supply typeExternal AC adapter
Number of power supply units1
Power supply65 W

Operational conditions

Operating relative humidity (H-H)0 - 85%
Operating temperature (T-T)0 - 35 °C
Storage relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 60 °C

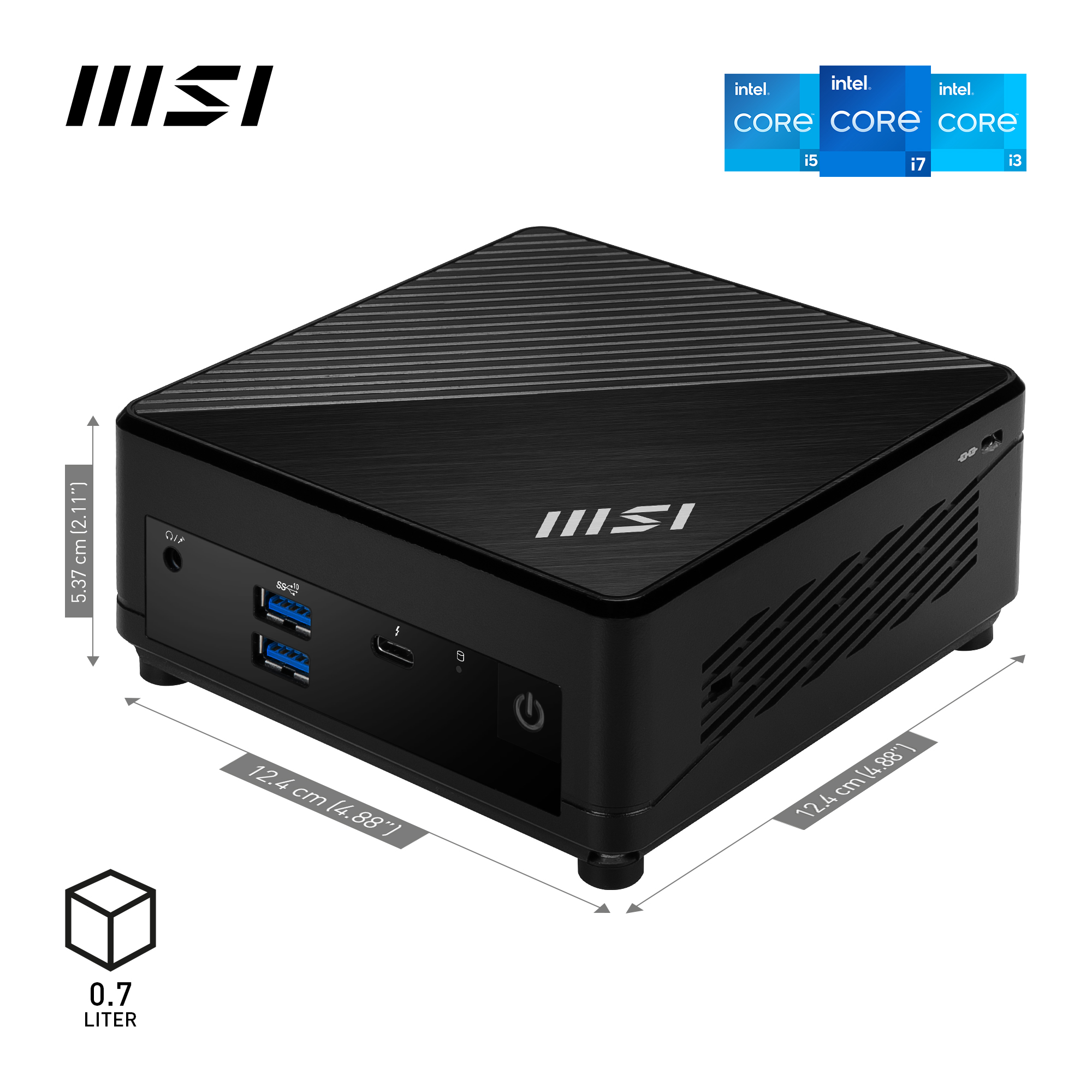

Weight & dimensions

Width124 mm
Depth124 mm
Height53.7 mm
Weight550 g
Package width205 mm
Package depth220 mm
Package height94 mm
Package weight1.39 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
Drivers includedYes
Display includedNo
Mouse includedNo
Keyboard includedNo

Other features

Country of originChina
Warranty period2 year(s)
