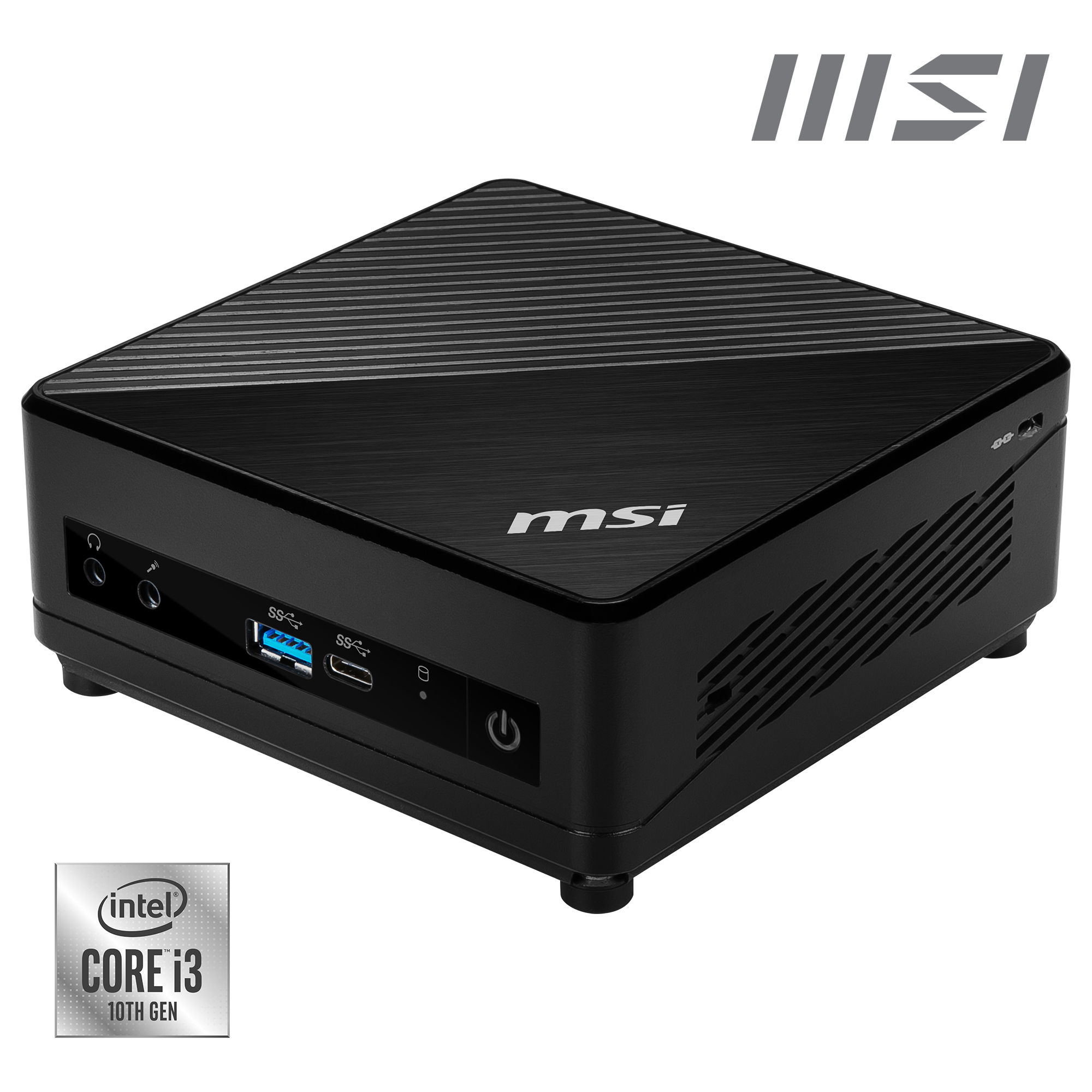

CUBI 5 10M COMPACT PC I3-10110U
Model CUBI 5 10M COMPACT PC I3-10110UPart no. CUBI 5 10M I3 10110U BBEAN 4711377016780
79 specifications
- ProcessorIntel® Core™ i3
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- Weight550 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i3
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- Weight
- 550 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- CUBI 5 10M COMPACT PC I3-10110U
- Part number
- CUBI 5 10M I3 10110U BB
- EAN / UPC
- 4711377016780
- Also known as
- MSI Cubi 5 10M Intel Core i3-10110U Barebone, Mini-PC, SFF, Type-C, USB 3.2 Gen2, HDMI, DisplayPort, LAN, WiFi, BT, VESA, Supports Max 64GB DDR4 SO-DIMM (2 Slot
Specifications
79 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10110U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 4.1 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | 2.5" |
| Storage drive interface | M.2, Serial ATA |
| NVMe | Yes |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Number of displays supported | 2 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Intel WGI219V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.66L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | System |
| Housing material | Plastic |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Number of power supply units | 1 |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.39 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
| Drivers included | Yes |
| Display included | No |
| Mouse included | No |
| Keyboard included | No |
Other features
| Specification | Value |
|---|---|
| Country of origin | China |
| Warranty period | 2 year(s) |
