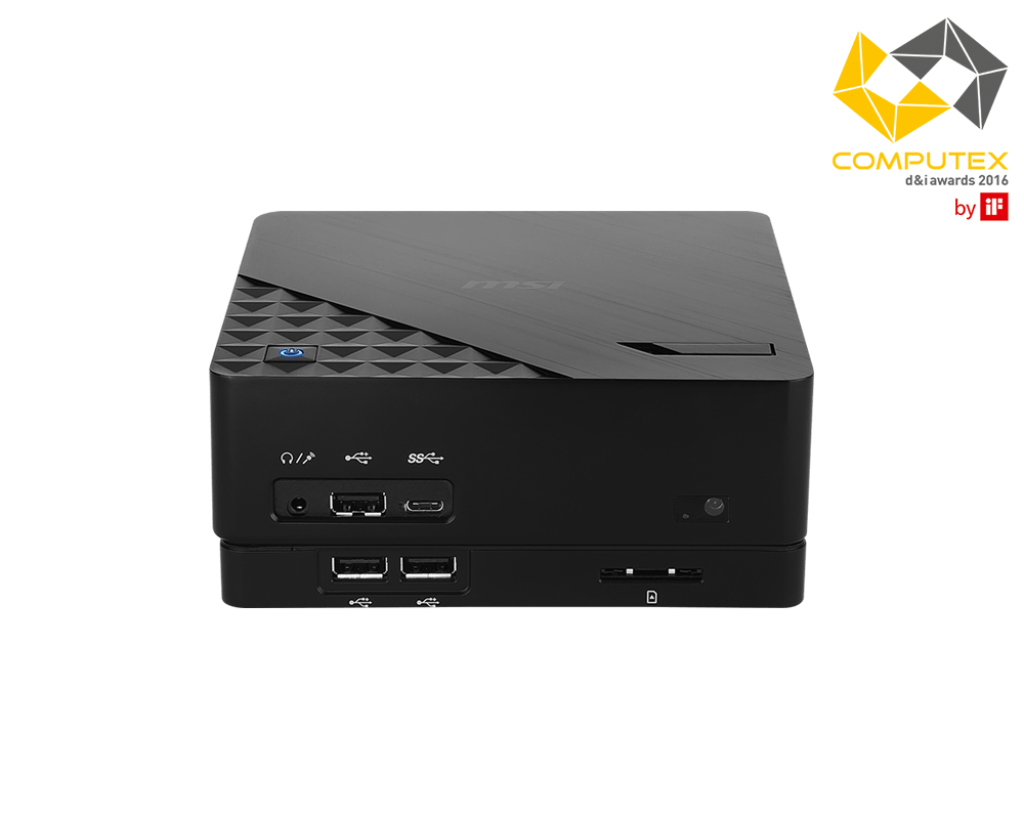

MSI Cubi 2 Plus 7M-017XEU
Model Cubi 2 Plus 7M-017XEUPart no. 9S6-B12311-017
80 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- TypeMini PC
- OSNo
- Weight1.21 kg
- ColourBlack
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Type
- Mini PC
- OS
- No
- Weight
- 1.21 kg
- Colour
- Black
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- Cubi 2 Plus 7M-017XEU
- Part number
- 9S6-B12311-017
- Also known as
- MSI Cubi 2 Plus 7M-017XEU Mini PC Black i3-7100T Intel® H110 LGA 1151 (Socket H4) 3.4 GHz
Specifications
80 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 7th gen Intel® Core™ i3 |
| Processor model | i3-7100T |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 3.4 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 35 W |
| CPU configuration (max) | 1 |
| Processor codename | Kaby Lake |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H110 |
| Processor socket | LGA 1151 (Socket H4) |
| Optical drive type | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| LAN controller | Intel® I219-V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| Microphone in | No |
| Headphone outputs | 0 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 1x8+2x4, 2x8 |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 90 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155.3 mm |
| Depth | 147.9 mm |
| Height | 62.2 mm |
| Weight | 1.21 kg |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Display included | No |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Number of storage drives installed | 1 |
