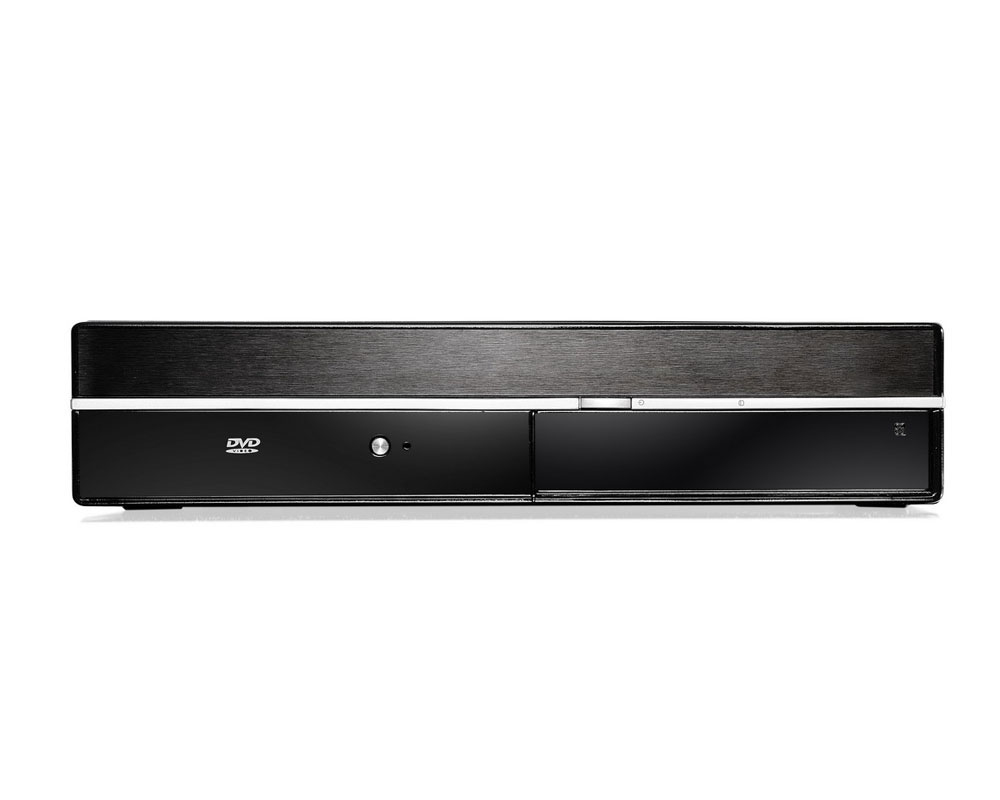

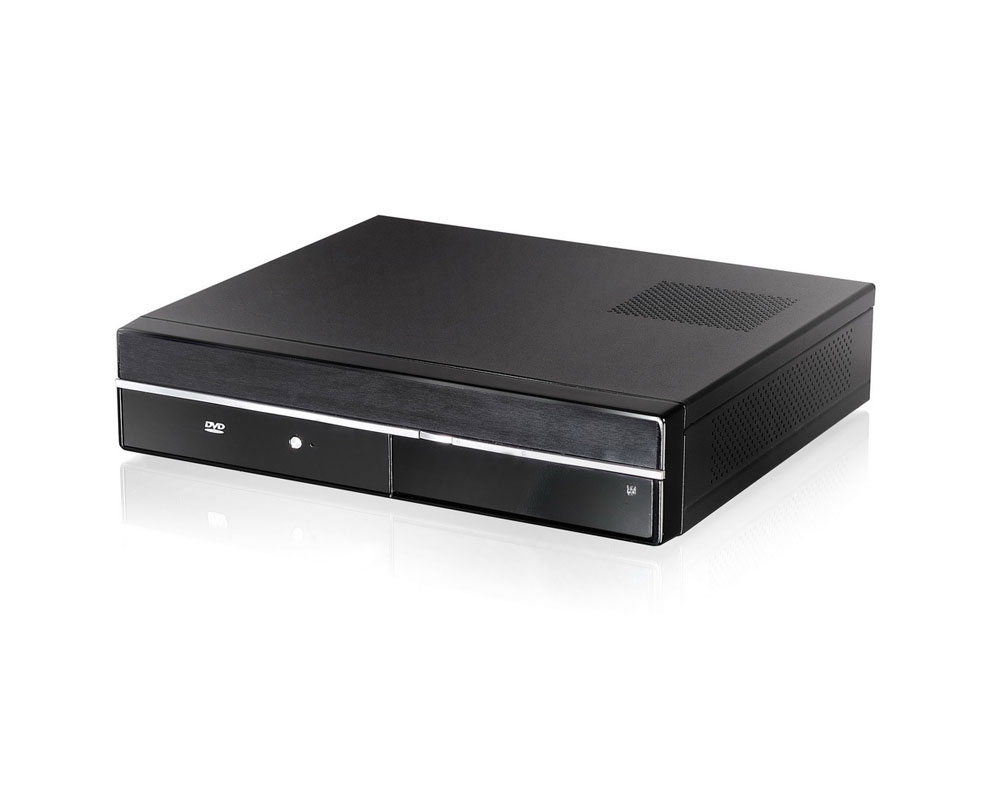

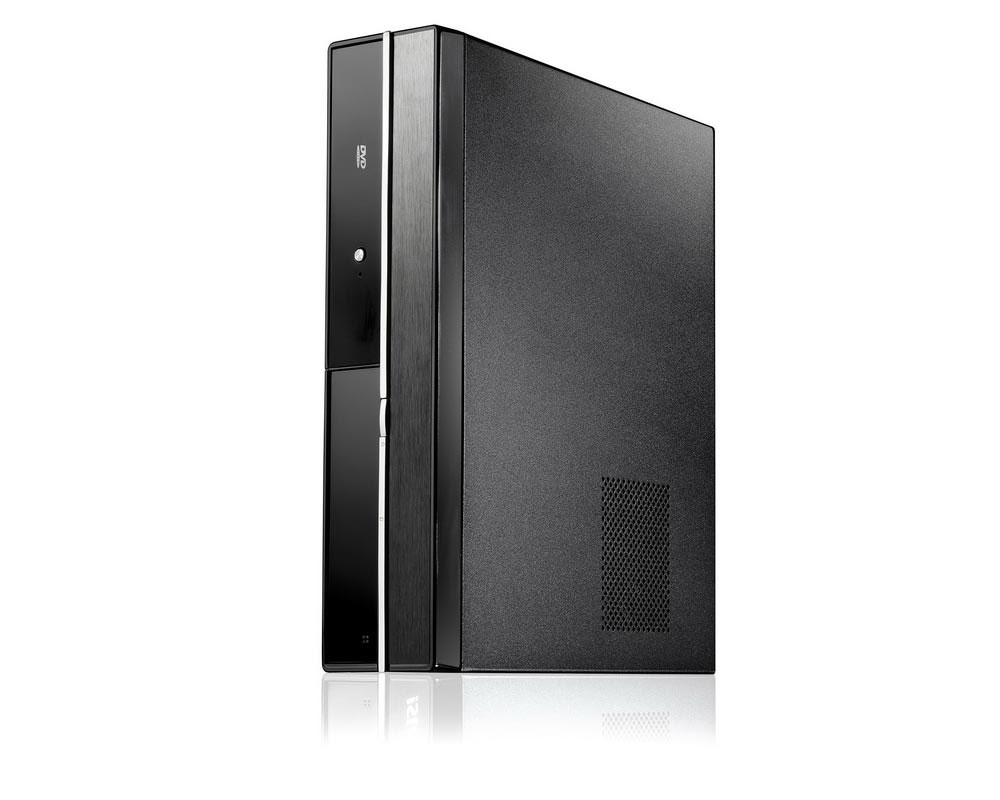

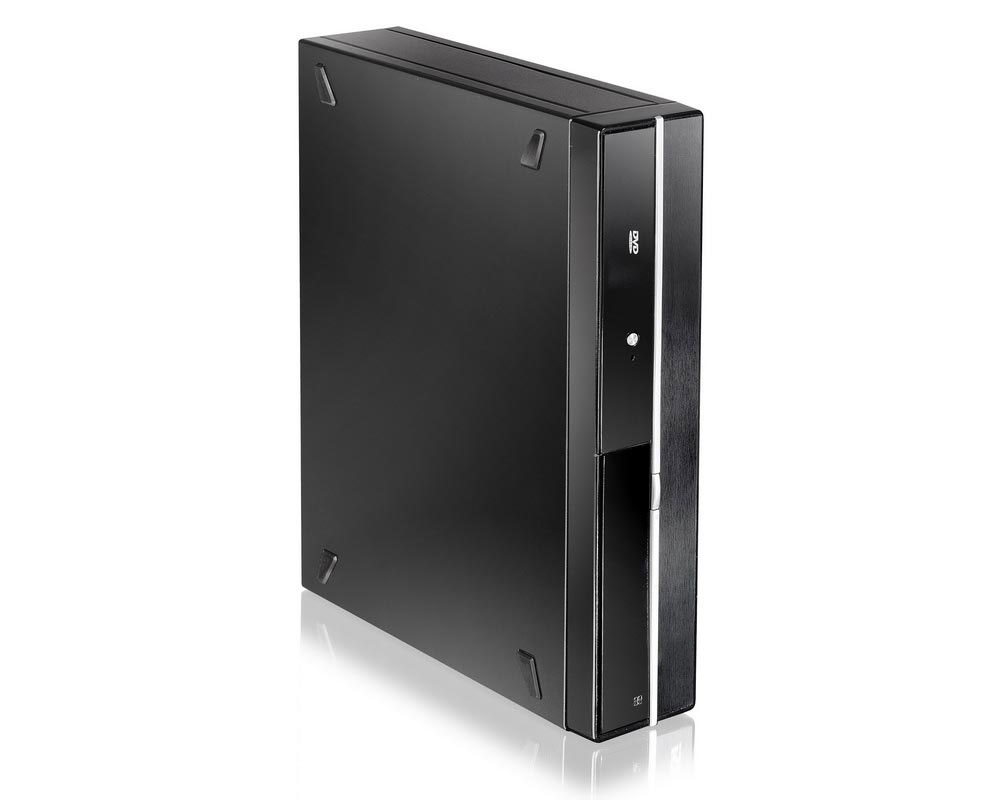

MSI B032-001BUS PC/workstation barebone SFF Black D2550 Intel NM10 BGA 559
1.86 GHz
Model B032-001BUSEAN 816909095302
59 specifications
- ProcessorIntel Atom®
- TypePC barebone
- OSNo
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel Atom®
- Type
- PC barebone
- OS
- No
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- B032-001BUS
- Part number
- B032-001BUS
- EAN / UPC
- 816909095302
- Also known as
- MSI B032-001BUS PC/workstation barebone SFF Black D2550 Intel NM10 BGA 559 1.86 GHz
Specifications
59 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D2550 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.86 GHz |
| Processor lithography | 32 nm |
| L2 cache | 1 MB |
| Thermal Design Power (TDP) | 10 W |
| Processor codename | Cedarview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 3.5" |
| Storage drive interface | Serial ATA II |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® GMA 3600 |
| Graphics card memory type | GDDR3 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| Processor socket | BGA 559 |
| Compatible processor series | Intel Atom® |
| Supported processor frequency (max) | 1.8 GHz |
| Optical drive type | Slim ODD |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | No |

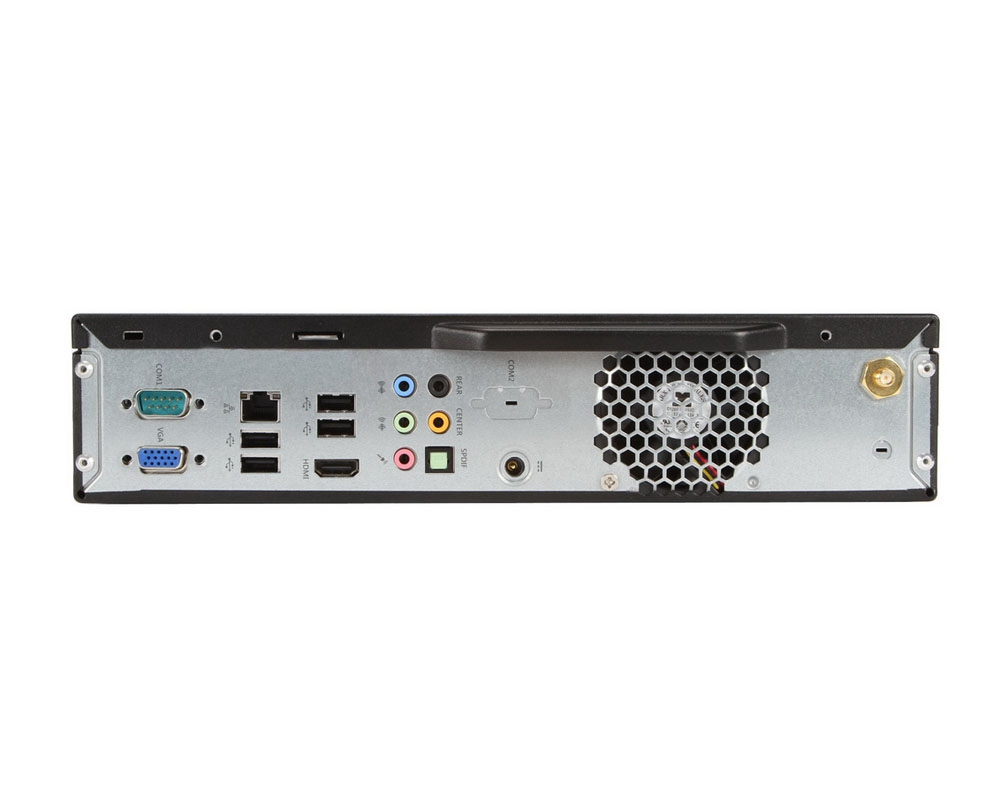

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| On/off switch | Yes |
| Product type | PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Intel 64 | Yes |
| Intel Dual Display Capable Technology | Yes |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| Number of power supply units | 1 |
| Power supply | 65 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 300 x 65.02 x 240 mm |
| Number of SATA connectors | 1 |
| Number of products included | 1 pc(s) |
