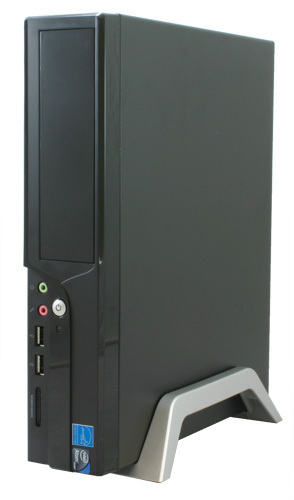

MSI 6676-003BUS SFF Black D510 Intel NM10 BGA 559
1.66 GHz
Model 6676-003BUSPart no. 6676BB-003BUS
59 specifications
- ProcessorIntel Atom®
- Noise26 dB
- ColourBlack
- Processor manufacturerIntel
- Memory slots typeSO-DIMM
- Storage drive interfaceSerial ATA, Serial ATA II
Overview
- Processor
- Intel Atom®
- Noise
- 26 dB
- Colour
- Black
- Processor manufacturer
- Intel
- Memory slots type
- SO-DIMM
- Storage drive interface
- Serial ATA, Serial ATA II
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- 6676-003BUS
- Part number
- 6676BB-003BUS
- Also known as
- MSI 6676-003BUS SFF Black D510 Intel NM10 BGA 559 1.66 GHz
Specifications
59 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D510 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.66 GHz |
| Processor lithography | 45 nm |
| Thermal Design Power (TDP) | 13 W |
| Processor codename | Pineview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
| Supported memory clock speeds | 667,800 MHz |
| Supported memory types | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA, Serial ATA II |
| Number of storage drives supported | 1 |
| Compatible memory cards | Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | AMD |
| Graphics card memory type | GDDR2 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| Processor socket | BGA 559 |
| Supported processor frequency (max) | 1.66 GHz |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC888S |
| Noise level (idle) | 26 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Networking features | Gigabit Ethernet, WLAN |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DVI port | Yes |
| Microphone in | Yes |
| Headphone outputs | 7 |
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| On/off switch | Yes |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | No |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 300 x 65 x 261 mm |
| HDD size | 3.5" |
| Power LED | Yes |
