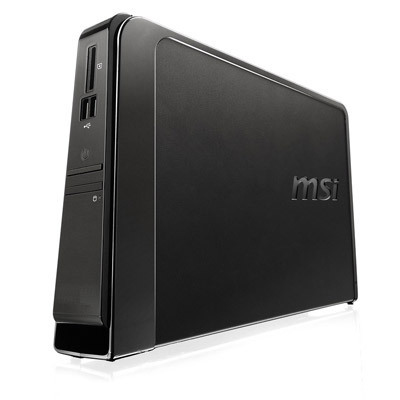

MSI 6668-004BUS PC/workstation barebone Black D525 Intel NM10 BGA 559
1.8 GHz
Model 6668-004BUSEAN 816909075007
59 specifications
- ProcessorIntel Atom®
- Weight1.81 kg
- ColourBlack
- Processor manufacturerIntel
- Memory slots typeSO-DIMM
- Storage drive interfaceSerial ATA II
Overview
- Processor
- Intel Atom®
- Weight
- 1.81 kg
- Colour
- Black
- Processor manufacturer
- Intel
- Memory slots type
- SO-DIMM
- Storage drive interface
- Serial ATA II
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- 6668-004BUS
- Part number
- 6668-004BUS
- EAN / UPC
- 816909075007, 8169090750072
- Also known as
- MSI 6668-004BUS PC/workstation barebone Black D525 Intel NM10 BGA 559 1.8 GHz
Specifications
59 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D525 |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.8 GHz |
| Processor lithography | 45 nm |
| L2 cache | 1 MB |
| Thermal Design Power (TDP) | 13 W |
| Processor codename | Pineview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
| Supported memory clock speeds | 667,800 MHz |
| Supported memory types | DDR2-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive interface | Serial ATA II |
| Number of storage drives supported | 1 |

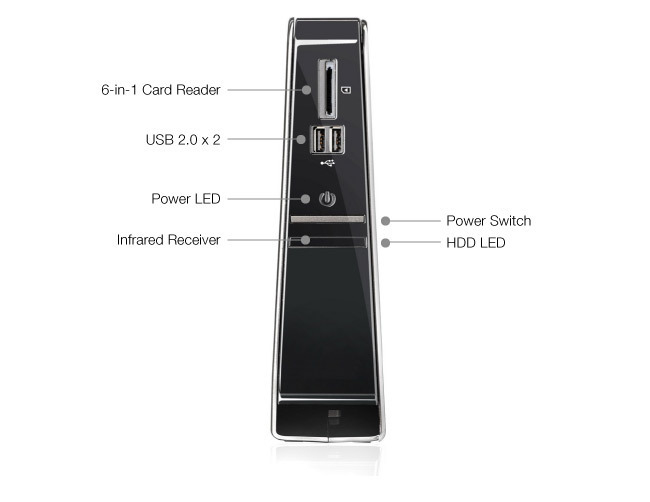

| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), miniSD, MMC, SD, xD |
Graphics
| Specification | Value |
|---|---|
| Graphics card family | AMD |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel NM10 |
| Processor socket | BGA 559 |
| Supported processor frequency (max) | 1.66 GHz |
| Audio output channels | 7.1 channels |
| Audio system | Realtek ALC858 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111D(L) |

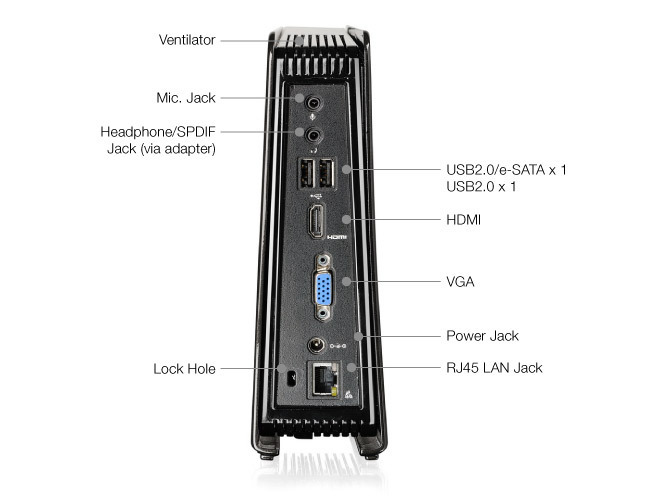

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 3 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| S/PDIF out port | Yes |
| eSATA ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Idle States | No |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | No |
| Thermal Monitoring Technologies | No |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Software
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 7 |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC, CE, PCT AH07, UL/cUL, TUV, CB, C-Tick, R3308, VCCI, RoHS |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 1.81 kg |
Other features
| Specification | Value |
|---|---|
| Number of processors installed | 1 |
| Dimensions (WxDxH) | 297 x 60.2 x 223 mm |
| HDD size | 3.5" |
