5 10M-075BEU
Model 5 10M-075BEUPart no. CUBI 5 10M-075BEUEAN 4719072811365
54 specifications
- ProcessorIntel® Pentium® Gold
- GraphicsNot available
- TypeMini PC
- OSNo
- Weight550 g
- ColourBlack
Overview
- Processor
- Intel® Pentium® Gold
- Graphics
- Not available
- Type
- Mini PC
- OS
- No
- Weight
- 550 g
- Colour
- Black
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- 5 10M-075BEU
- Part number
- CUBI 5 10M-075BEU
- EAN / UPC
- 4719072811365
- Also known as
- MSI Cubi 5 10M-075BEU Mini PC Black 6405U Intel SoC 2.4 GHz
Specifications
54 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Pentium® Gold |
| Processor model | 6405U |
| Processor cores | 2 |
| Processor frequency | 2.4 GHz |
| Processor cache | 2 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Optical drive type | No |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| LAN controller | Intel WGI219V |

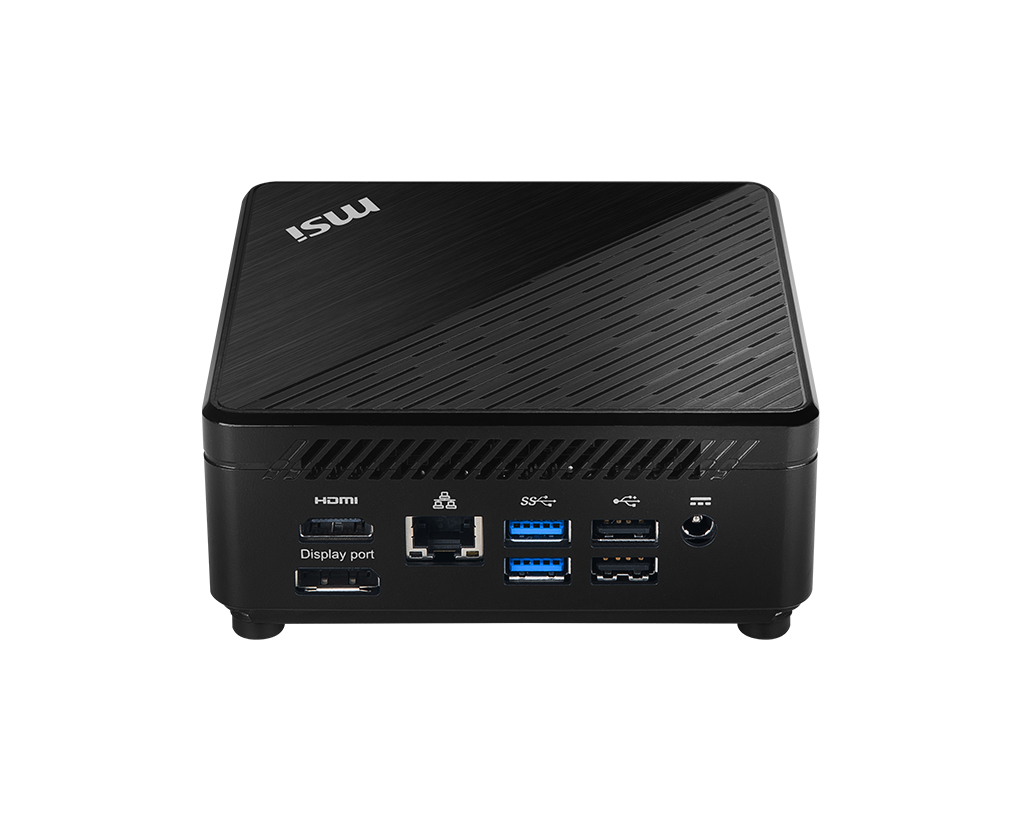

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DVI port | No |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
| Cooling type | Passive |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Display included | No |
