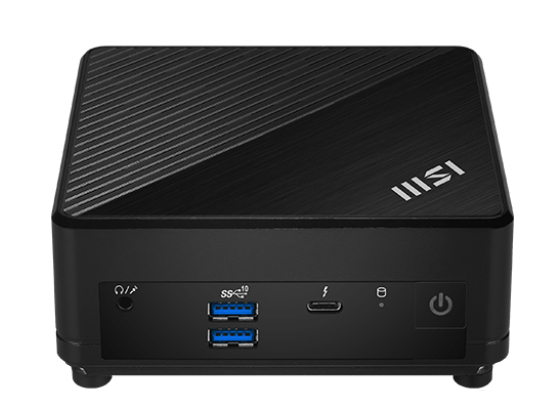

Cubi 12M-211BES
0.66L sized PC Black i5-1235U Intel SoC BGA 1744
Model 12M-211BESPart no. 00-B0A811-211
61 specifications
- ProcessorIntel® Core™ i5
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC barebone
- Weight590 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i5
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC barebone
- Weight
- 590 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- 12M-211BES
- Part number
- 00-B0A811-211
- Also known as
- MSI Cubi 12M-211BES 0.66L sized PC Black i5-1235U Intel SoC BGA 1744
Specifications
61 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 12th gen Intel® Core™ i7 |
| Processor model | i5-1235U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 4.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Processor cache | 12 MB |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| NVMe | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
| Processor socket | BGA 1744 |
| Audio output channels | 2.1 channels |
| Audio chip | Realtek ALC256 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| LAN controller | Realtek RTL8111H, Realtek RTL8125-BG, Realtek RTL8125-CG |

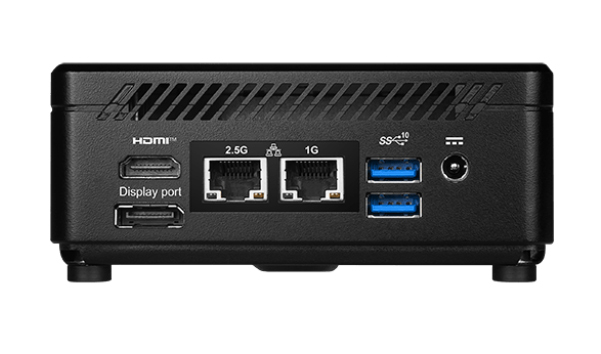

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Thunderbolt 4 ports quantity | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.66L sized PC |
| Product colour | Black |
| Cooling type | Active |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 590 g |
| Package width | 220 mm |
| Package depth | 205 mm |
| Package height | 94 mm |
| Package weight | 1.33 kg |
