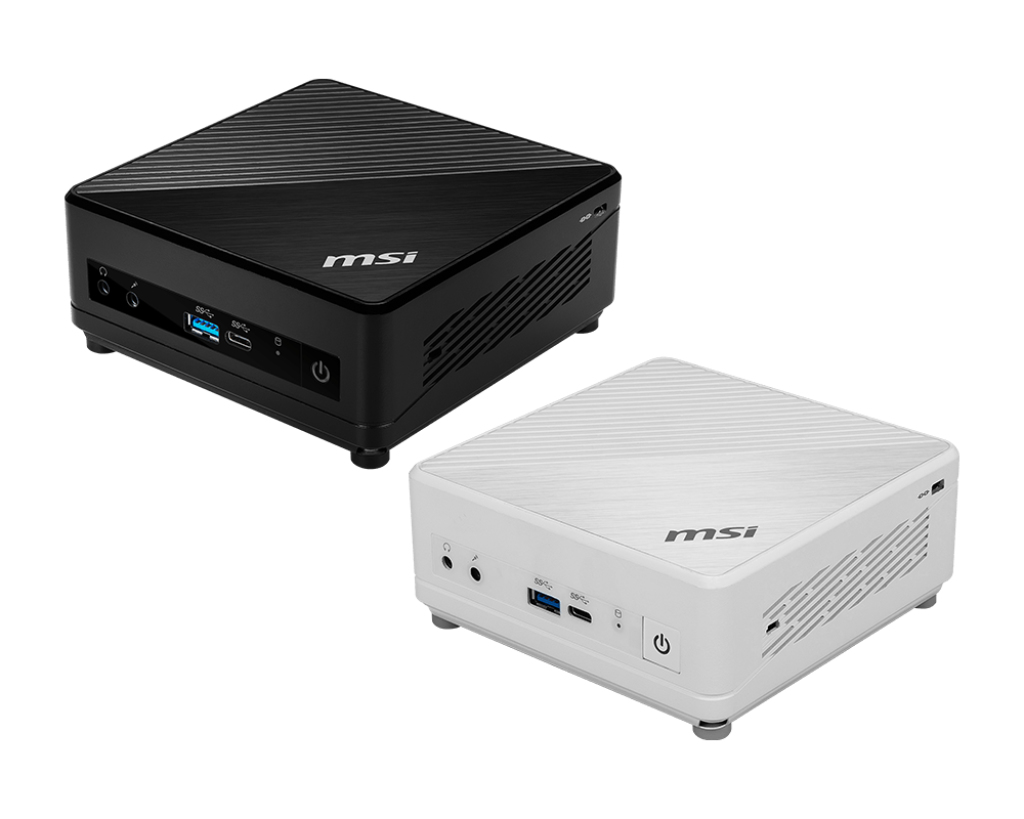

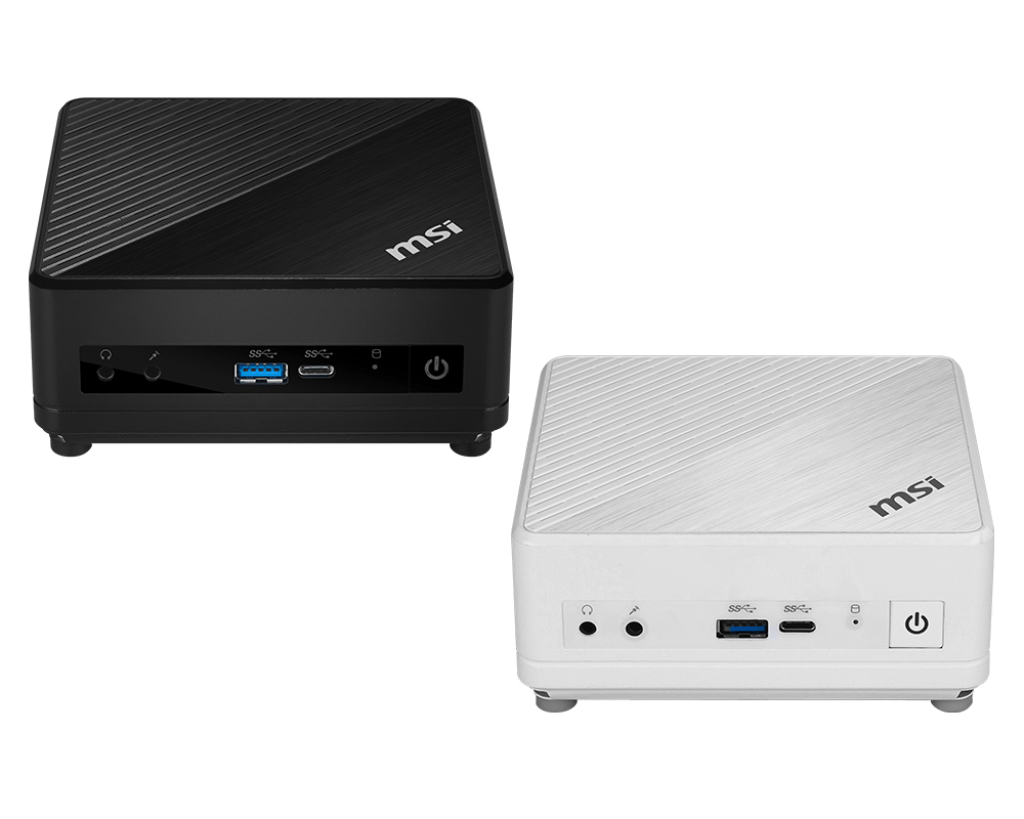

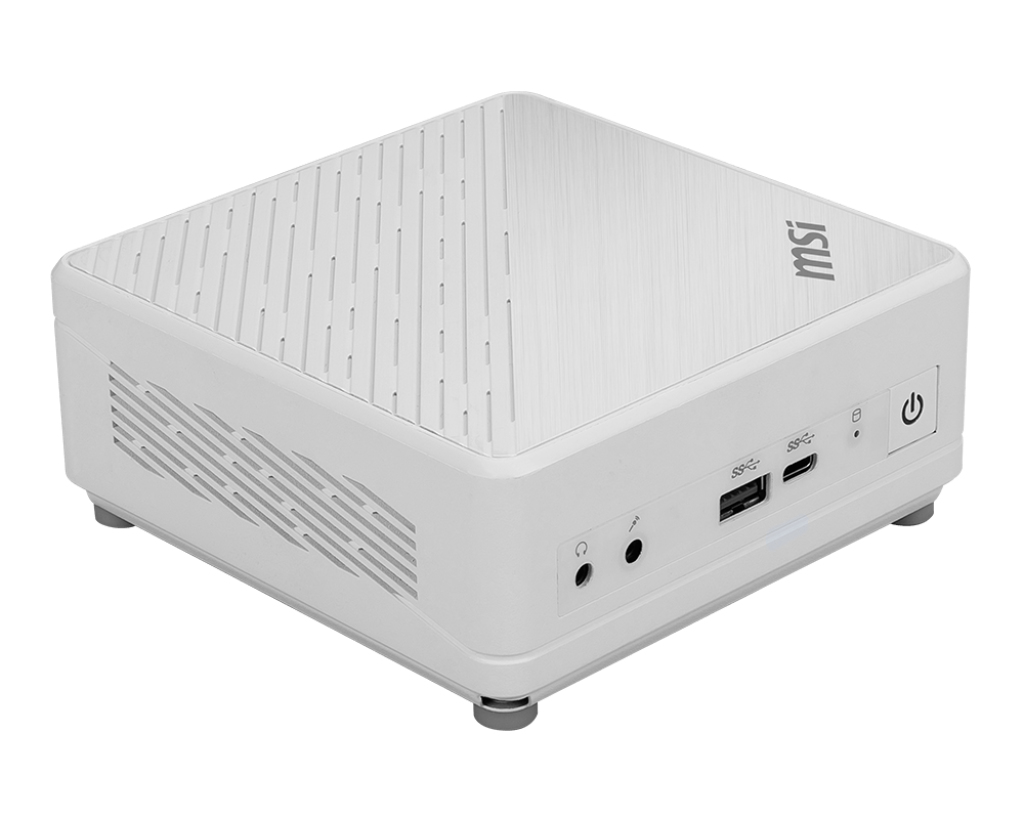

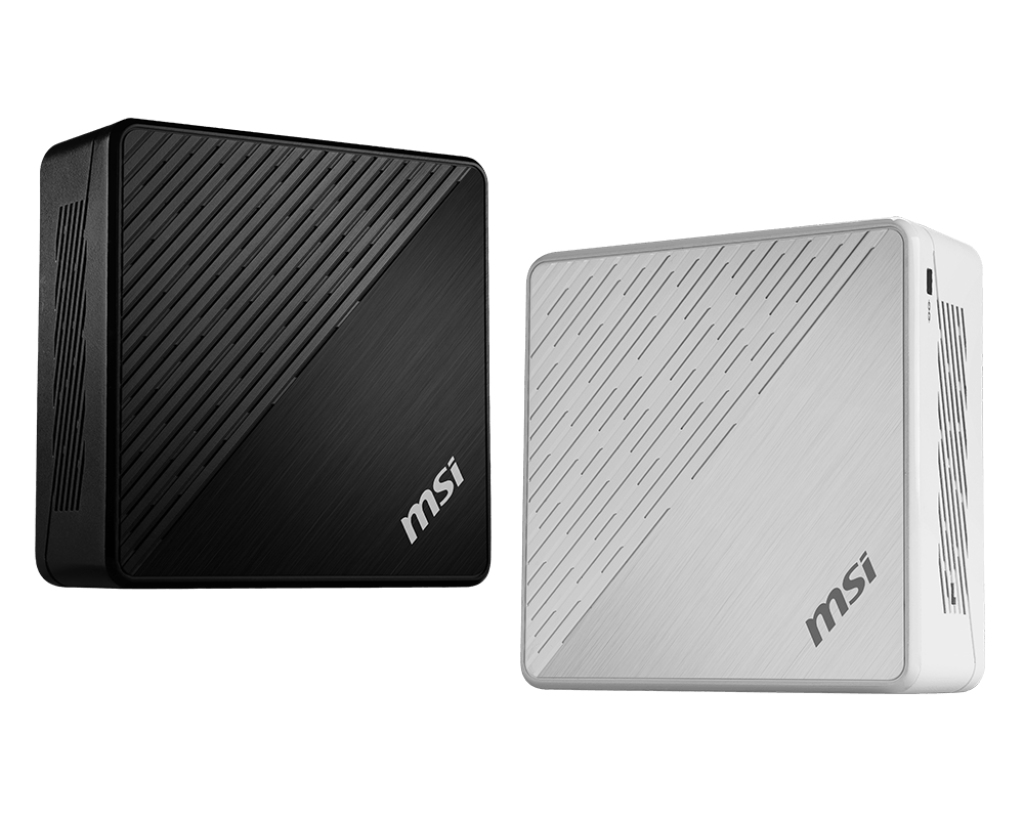

Cubi 10M-418EU
0.66L sized PC White i5-10210U 1.6 GHz
Model 10M-418EUPart no. 9S6-B18312-601
67 specifications
- ProcessorIntel® Core™ i5
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC barebone
- Weight550 g
- ColourWhite
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i5
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC barebone
- Weight
- 550 g
- Colour
- White
- Built-in processor
- Yes
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- 10M-418EU
- Part number
- 9S6-B18312-601
- Also known as
- MSI Cubi 10M-418EU 0.66L sized PC White i5-10210U 1.6 GHz
Specifications
67 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 10th gen Intel® Core™ i5 |
| Processor model | i5-10210U |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Memory channels | Dual-channel |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| SSD form factor | M.2 |
| Storage drive interface | M.2, PCI Express |
| NVMe | Yes |
| Number of storage drives supported | 3 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board graphics card model | Intel® UHD Graphics |
Performance
| Specification | Value |
|---|---|
| Audio output channels | 2.1 channels |
| Audio chip | Realtek ALC887 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Intel® I219-V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express x4 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.66L sized PC |
| Product colour | White |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
| Package width | 221 mm |
| Package depth | 506 mm |
| Package height | 469 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
