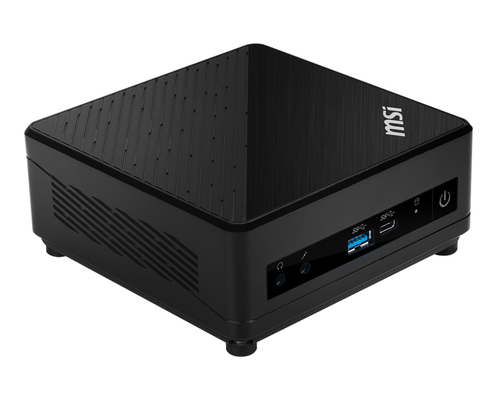

Cubi 10M-215BEU
0.66L sized PC Black i3-10110U Intel SoC 2.1 GHz
Model 10M-215BEUPart no. 936-B18311-215
78 specifications
- ProcessorIntel® Core™ i3
- SpeedWi-Fi 5 (802.11ac)
- TypeMini PC barebone
- Weight550 g
- ColourBlack
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i3
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- Mini PC barebone
- Weight
- 550 g
- Colour
- Black
- Built-in processor
- Yes
- Brand
- MSI
- Category
- PC/Workstation Barebones
- Model
- 10M-215BEU
- Part number
- 936-B18311-215
- Also known as
- MSI Cubi 10M-215BEU 0.66L sized PC Black i3-10110U Intel SoC 2.1 GHz
Specifications
78 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 10th gen Intel® Core™ i3 |
| Processor model | i3-10110U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 2.1 GHz |
| Processor cache | 4 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2666 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,M.2 |
| Number of storage drives supported | 1 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum graphics card memory | 32000 MB |
| Maximum resolution | 4096 x 2304 pixels |
| Number of displays supported | 3 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel SoC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Intel Dual Band Wireless-AC 9462 |
| LAN controller | Intel WGI219V |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.66L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 124 mm |
| Depth | 124 mm |
| Height | 53.7 mm |
| Weight | 550 g |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| AC adapter included | Yes |
| Quick start guide | Yes |
