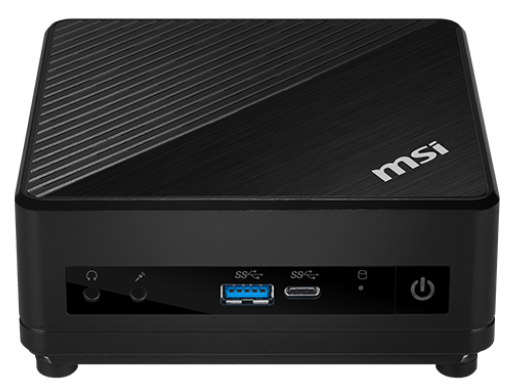

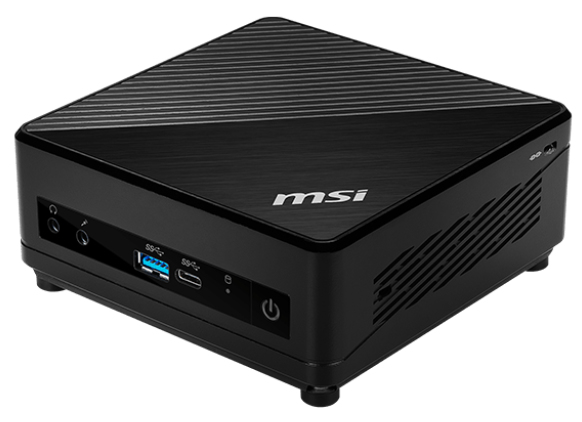

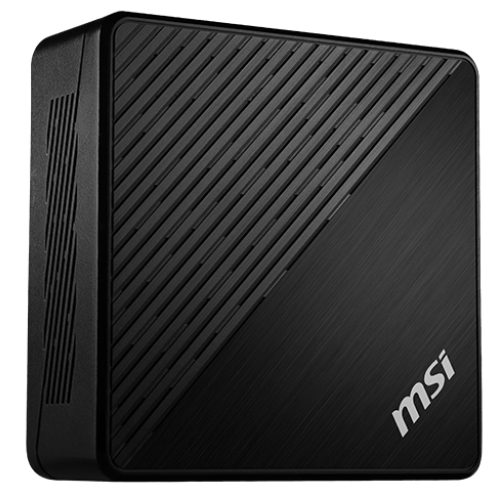

MSI Cubi 10M-215BES
MSI

Cubi 10M-215BES

0.66L sized PC Black i3-10110U Intel SoC 2.1 GHz

Model 10M-215BESPart no. 9S6-B18311-680

93 specifications
  • ProcessorIntel® Core™ i3
  • SpeedWi-Fi 6 (802.11ax)
  • TypeMini PC barebone
  • Weight550 g
  • ColourBlack
  • Built-in processorYes
See all specifications

Overview

Processor
Intel® Core™ i3
Speed
Wi-Fi 6 (802.11ax)
Type
Mini PC barebone
Weight
550 g
Colour
Black
Built-in processor
Yes
Brand
MSI
Model
10M-215BES
Part number
9S6-B18311-680
Also known as
MSI Cubi 10M-215BES 0.66L sized PC Black i3-10110U Intel SoC 2.1 GHz

Specifications

93 specifications in 16 groups

Processor

Built-in processorYes
Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generation10th gen Intel® Core™ i3
Processor modeli3-10110U
Processor cores2
Processor threads4
Processor boost frequency4.1 GHz
Processor frequency2.1 GHz
Processor cache4 MB
Thermal Design Power (TDP)15 W
CPU configuration (max)1

Memory

Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Supported memory clock speeds2666 MHz
Supported memory typesDDR4-SDRAM

Storage

Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5,M.2
Number of storage drives supported1

Graphics

On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Maximum graphics card memory32000 MB
Maximum resolution4096 x 2304 pixels
Number of displays supported3

Performance

Motherboard chipsetIntel SoC
Number of processors supported1
Compatible processor seriesIntel® Core™ i3
Audio output channels2.1 channels
Audio chipRealtek ALC887

Network

Ethernet LANYes
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6 AX201
BluetoothYes
Bluetooth version5.2
LAN controllerIntel® I219-V

Ports & interfaces

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity1
HDMI version1.4
VGA (D-Sub) ports quantity0
DisplayPorts quantity1
DisplayPort version1.2
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports1
DC-in jackYes

Design

Chassis type0.66L sized PC
Product colourBlack
On/off switchYes
LED indicatorsYes
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface100 x 100 mm
Product typeMini PC barebone

Processor special features

Embedded options availableNo
Enhanced Intel SpeedStep TechnologyYes
Execute Disable BitYes
Idle StatesYes
Intel 64Yes
Intel Clear Video TechnologyYes
Intel Flex Memory AccessYes
Intel Stable Image Platform Program (SIPP)No
Intel TSX-NINo
Intel Trusted Execution TechnologyNo
Intel VT-x with Extended Page Tables (EPT)Yes
Intel Virtualization Technology (VT-x)Yes
Intel Virtualization Technology for Directed I/O (VT-d)Yes

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, WEEE

Certificates

CertificationCB/CE, UL (CUL), BSMI, VCCI, RCM (C-Tick)

Sustainability

Sustainability complianceYes

Power

Power supply typeExternal AC adapter
Power supply65 W

Operational conditions

Operating relative humidity (H-H)0 - 85%
Operating temperature (T-T)0 - 35 °C
Storage relative humidity (H-H)0 - 90%
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Width124 mm
Depth124 mm
Height53.7 mm
Weight550 g
Package width221 mm
Package depth506 mm
Package height469 mm
Package weight1.4 kg

Packaging content

Power cord includedYes
AC adapter includedYes
Quick start guideYes
