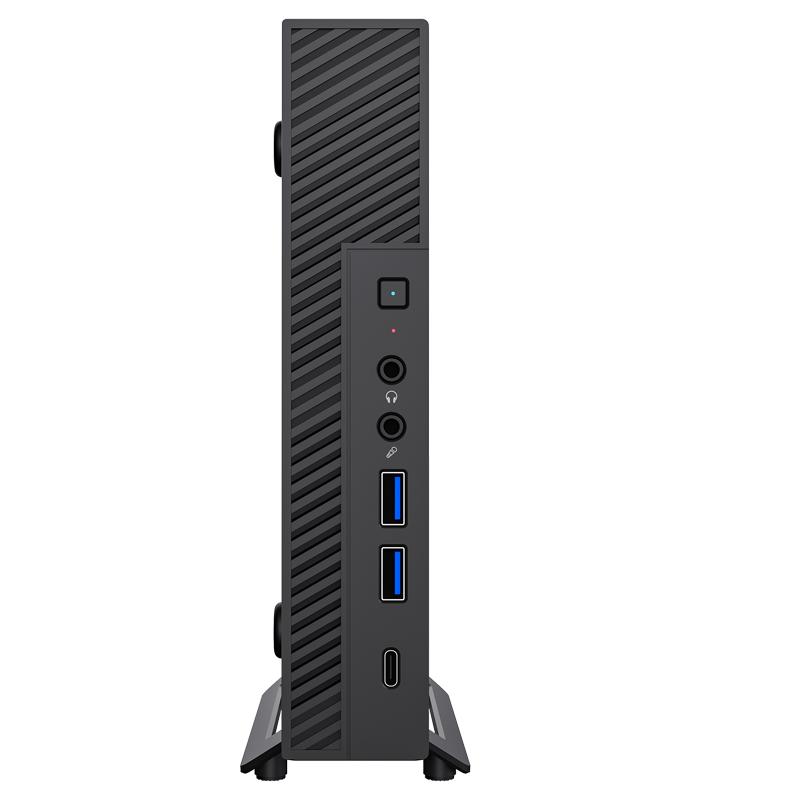

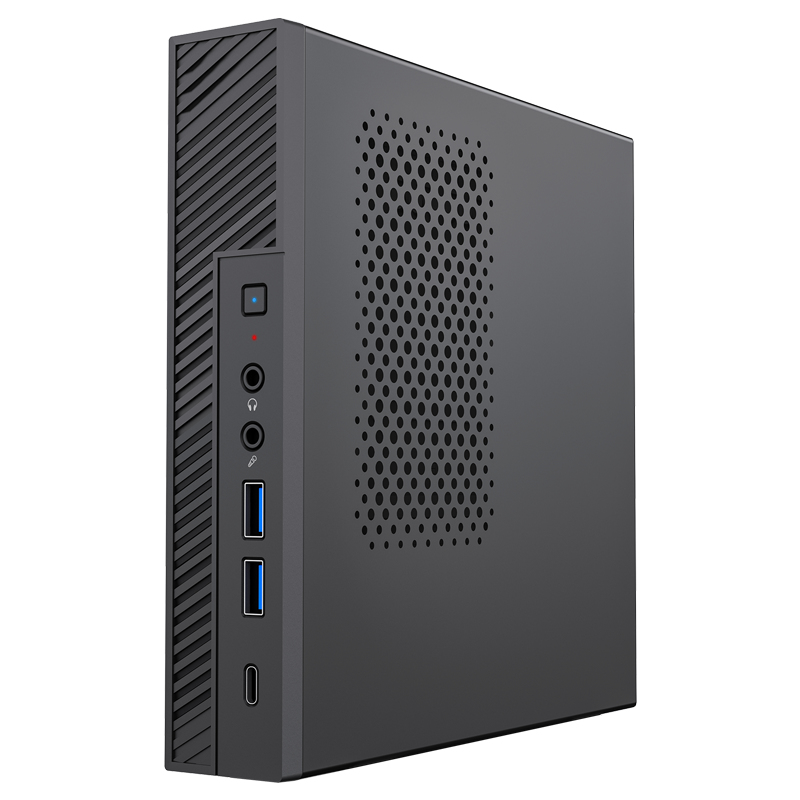

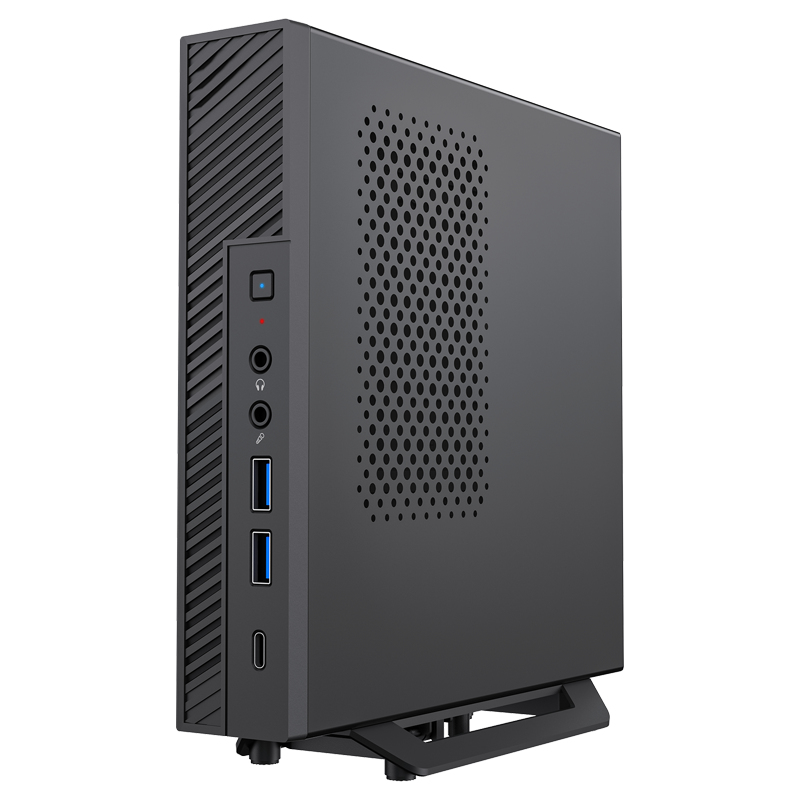

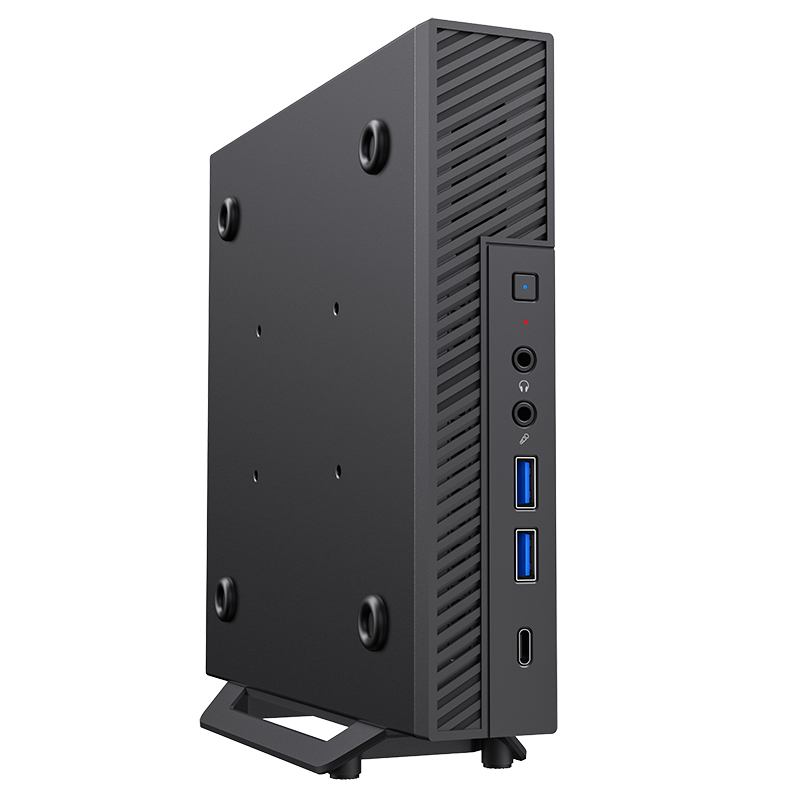

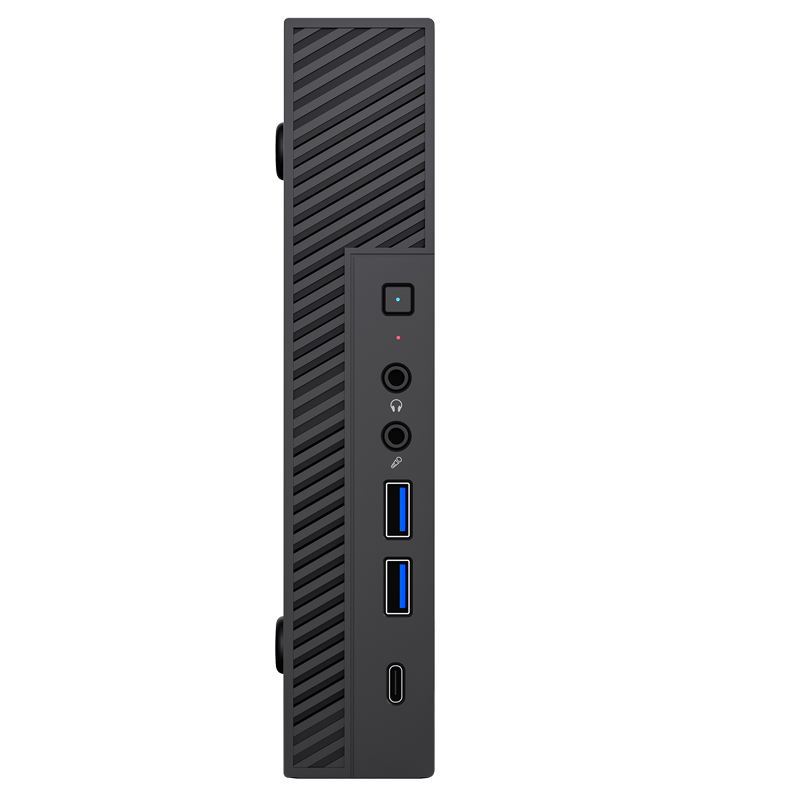

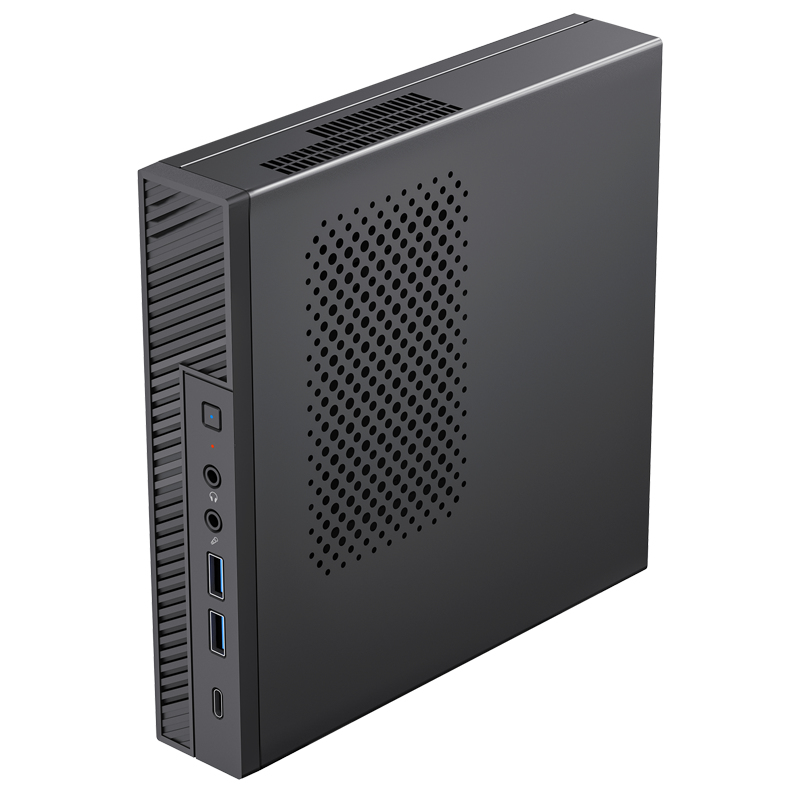

PILOT Z1
Model PILOT Z1Part no. ITOCPZ1EAN 8056157882985
40 specifications
- TypeMini PC barebone
- Weight1.4 kg
- ColourBlack
- Built-in processorNo
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Type
- Mini PC barebone
- Weight
- 1.4 kg
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- itek
- Category
- PC/Workstation Barebones
- Model
- PILOT Z1
- Part number
- ITOCPZ1
- EAN / UPC
- 8056157882985
- Also known as
- itek PILOT Z1 SFF Black Intel H610 LGA 1700
Specifications
40 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel H610 |
| Processor socket | LGA 1700 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| LAN controller | Realtek RTL8111H |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Product colour | Black |
| Cooling type | Active |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |

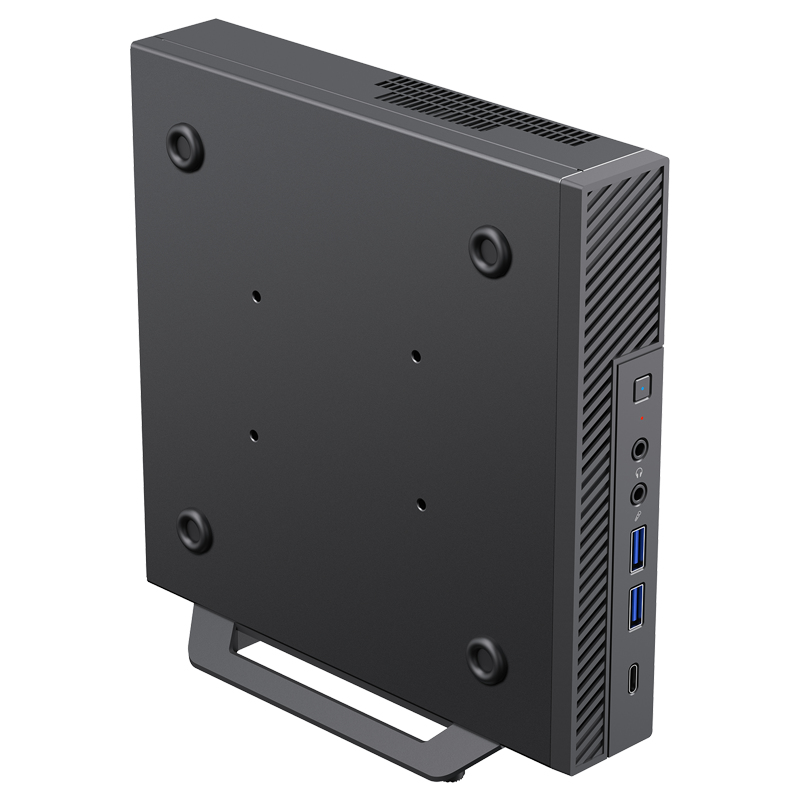

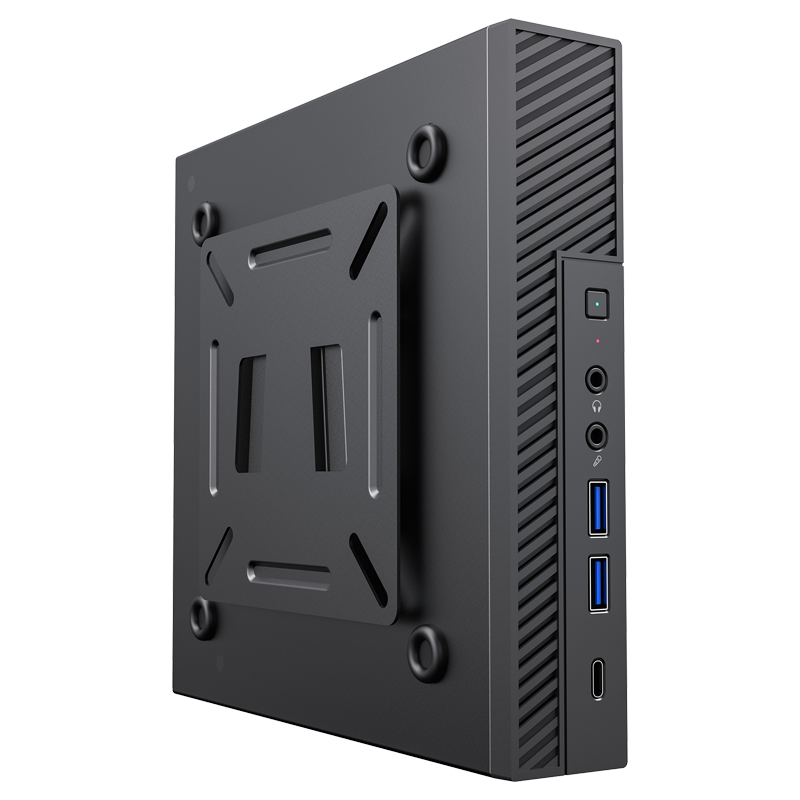

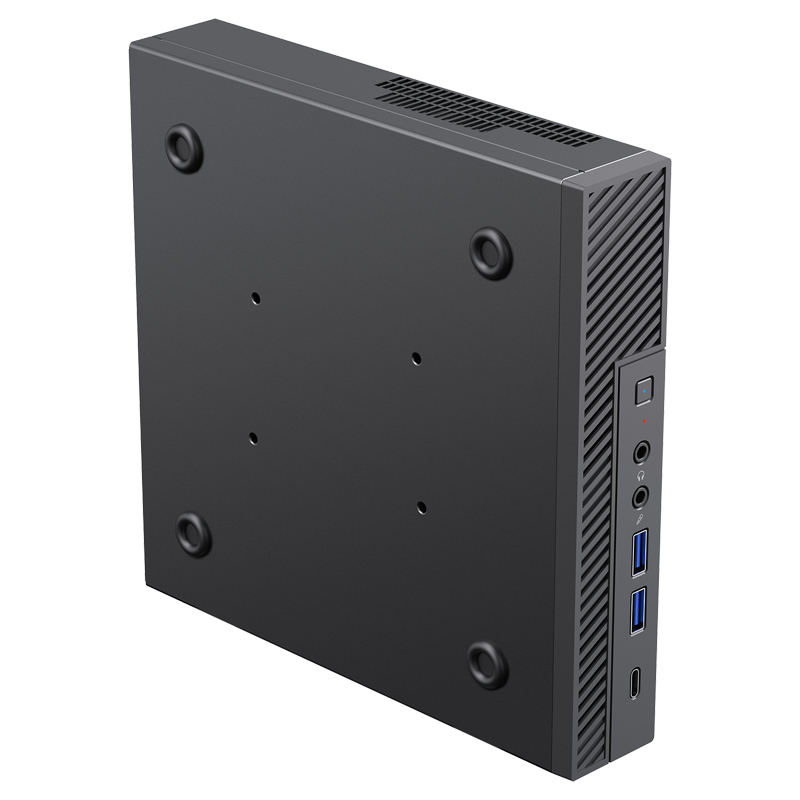

| VESA mounting | Yes |
| Panel mounting interface | 100 x 100 mm |
| Product type | Mini PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| Power supply | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 37 mm |
| Depth | 186.5 mm |
| Height | 183 mm |
| Weight | 1.4 kg |
