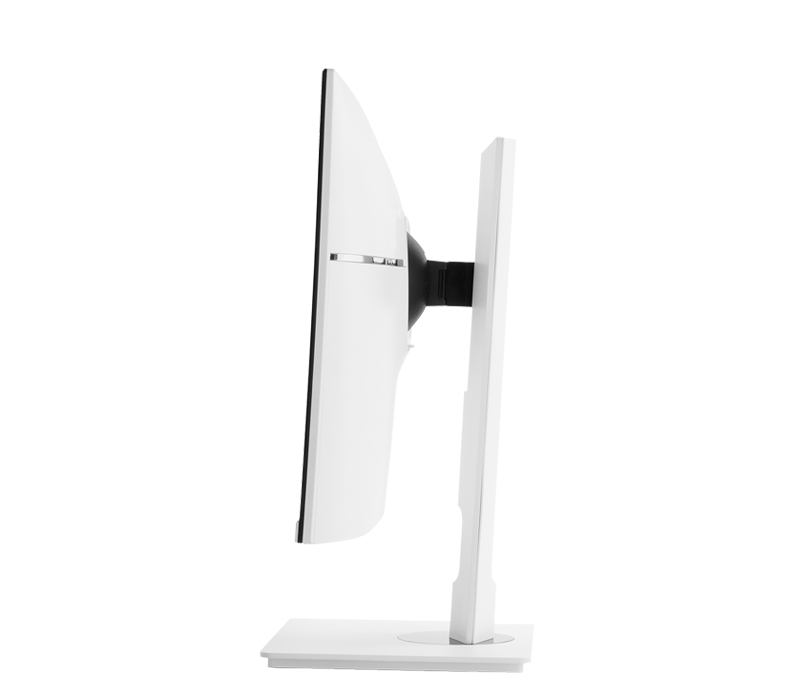

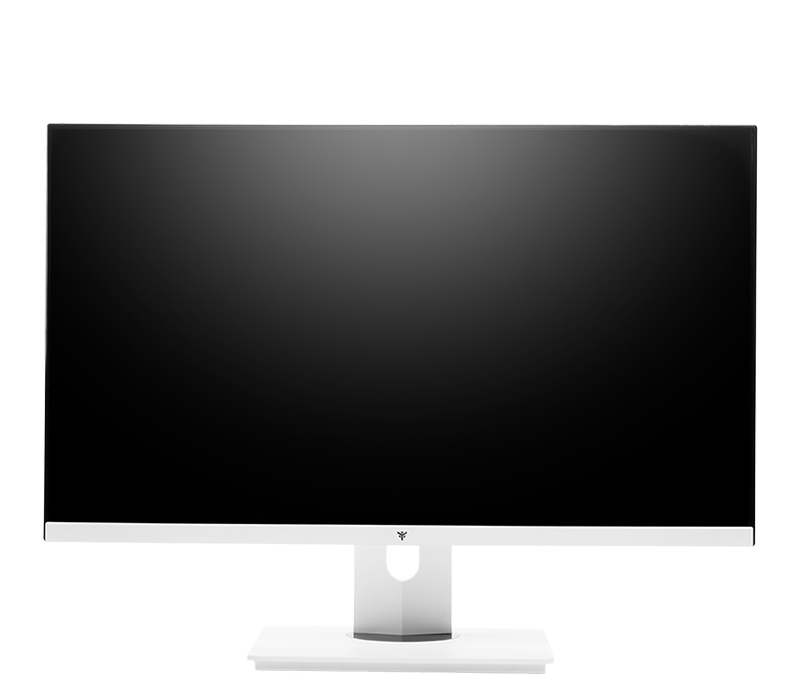

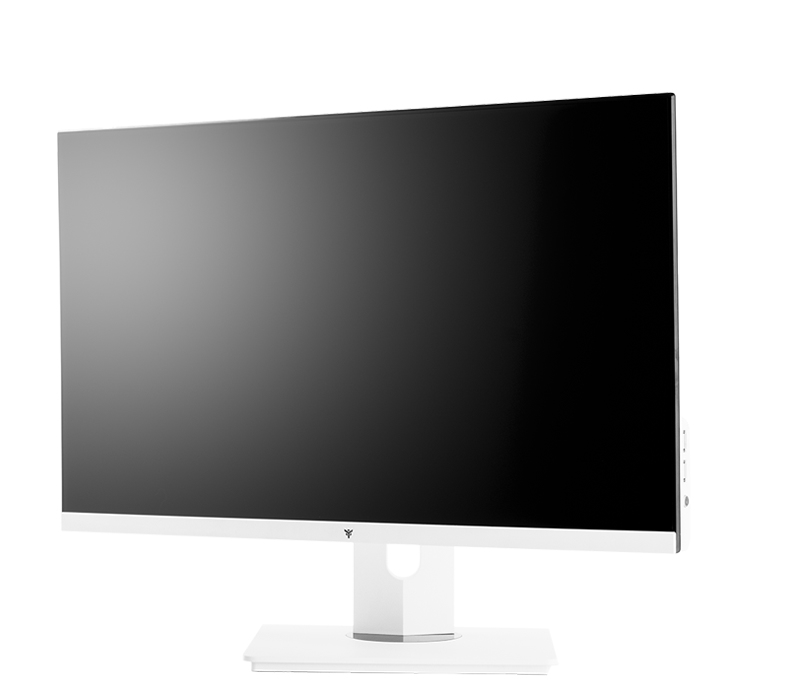

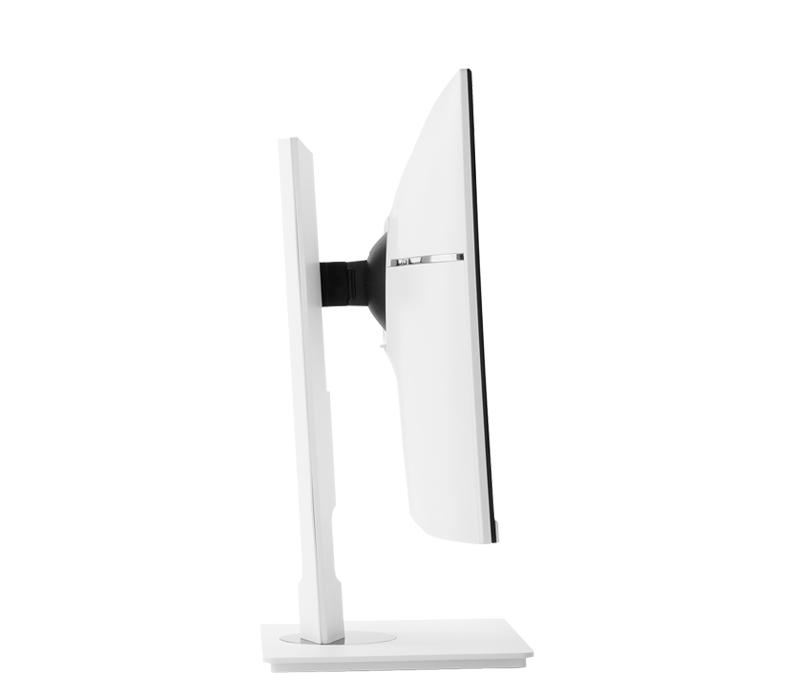

ITAIOBB24IH51WBH PC/workstation barebone All-in-One White Intel H510 LGA 1200 (Socket H5) Built-in speaker(s)
Model ITAIOBB24IH51WBHEAN 8056157882275
47 specifications
- Display60.5 cm (23.8")
- Resolution1920 x 1080 pixels
- TypeAll-in-One PC barebone
- Weight5.5 kg
- ColourWhite
- Built-in processorNo
Overview
- Display
- 60.5 cm (23.8")
- Resolution
- 1920 x 1080 pixels
- Type
- All-in-One PC barebone
- Weight
- 5.5 kg
- Colour
- White
- Built-in processor
- No
- Brand
- itek
- Category
- PC/Workstation Barebones
- Model
- ITAIOBB24IH51WBH
- Part number
- ITAIOBB24IH51WBH
- EAN / UPC
- 8056157882275
- Also known as
- itek ITAIOBB24IH51WBH PC/workstation barebone All-in-One White Intel H510 LGA 1200 (Socket H5) Built-in speaker(s)
Specifications
47 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3200 MHz |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 2 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel H510 |
| Processor socket | LGA 1200 (Socket H5) |
| Number of processors supported | 1 |
Display
| Specification | Value |
|---|---|
| Display diagonal | 60.5 cm (23.8") |
| Display resolution | 1920 x 1080 pixels |
| HD type | Full HD |
| Aspect ratio | 16:9 |
| Panel type | VA |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of speakers | 2 |
| RMS rated power | 3 W |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| LAN controller | Realtek RTL8111H |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Design
| Specification | Value |
|---|---|
| Chassis type | All-in-One |
| Product colour | White |
| Product type | All-in-One PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 6.3 A |
| AC adapter output voltage | 19 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 543 mm |
| Depth | 200 mm |
| Height | 500 mm |
| Weight | 5.5 kg |
| Package width | 730 mm |
| Package depth | 170 mm |
| Package height | 455 mm |
| Package weight | 8 kg |
