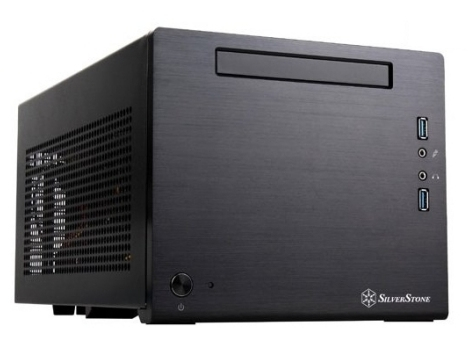

ISY WS UltraPortable2
Model WS UltraPortable2Part no. ISYWSZ97I-2-600WEAN 8055681882119
43 specifications
- ProcessorIntel
- TypePC barebone
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD & SSD
Overview
- Processor
- Intel
- Type
- PC barebone
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- ISY
- Category
- PC/Workstation Barebones
- Model
- WS UltraPortable2
- Part numbers
- ISYWSZ97I-2-600W, ISYWSZ170I-2-600W
- EAN / UPC
- 8055681882119, 8055681885479
- Also known as
- ISY WS UltraPortable2 Desktop Black Intel® Z97 LGA 1150 (Socket H3)
Specifications
43 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
| Processor family | Intel |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Supported memory clock speeds | 1600 MHz |
| Supported memory types | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5,3.5" |
| Storage drive interface | Serial ATA III |
| Number of storage drives supported | 2 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset | Intel® Z97 |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Supported processor frequency (max) | 3 GHz |
| BIOS type | AMI |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of SATA III connectors | 4 |
| Parallel ports quantity | 1 |
| S/PDIF out port | Yes |
| Serial ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| Mini PCI Express slots | 4 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
| Product type | PC barebone |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| Number of power supply units | 1 |
| Power supply | 600 W |
