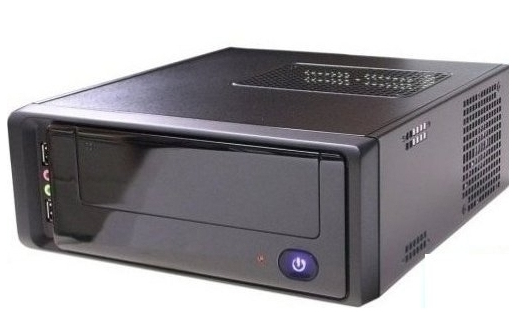

ISY Small Black D2500 BGA 559
1.86 GHz
Model SmallPart no. ISY-ATOM-D2500EAN 8055681886698
51 specifications
- ProcessorIntel Atom®
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
- Processor socketBGA 559
Overview
- Processor
- Intel Atom®
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Processor socket
- BGA 559
- Brand
- ISY
- Category
- PC/Workstation Barebones
- Model
- Small
- Part number
- ISY-ATOM-D2500
- EAN / UPC
- 8055681886698
- Also known as
- ISY Small Black D2500 BGA 559 1.86 GHz
Specifications
51 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Atom® |
| Processor model | D2500 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor lithography | 32 nm |
| L2 cache | 1 MB |
| Thermal Design Power (TDP) | 10 W |
| Processor codename | Cedarview |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Maximum internal memory | 4 GB |
| Memory bandwidth (max) | 6.4 GB/s |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 800,1066 MHz |
| Supported memory types | DDR3-SDRAM |
| ECC | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 559 |
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| COM ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| On/off switch | Yes |
| LED indicators | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | No |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | Yes |
| Intel Virtualization Technology (VT-x) | No |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
Power
| Specification | Value |
|---|---|
| Power supply | 150 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Package width | 500 mm |
| Package depth | 500 mm |
| Package height | 260 mm |
| Package weight | 10 kg |
Packaging content
| Specification | Value |
|---|---|
| Power cord included | Yes |
| Mouse included | Yes |
| Keyboard included | Yes |
