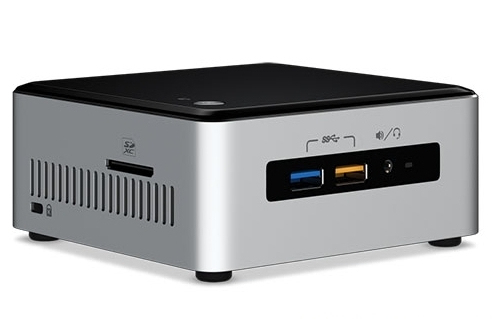

ISY NUC 6H
Model NUC 6HPart no. ISYNUC6I5H-BASEEAN 8055681886087
102 specifications
- ProcessorIntel® Core™ i3
- Memory4 GB
- TypeMini PC barebone
- ColourBlack, Silver
- Built-in processorYes
- Memory slots typeSO-DIMM
Overview
- Processor
- Intel® Core™ i3
- Memory
- 4 GB
- Type
- Mini PC barebone
- Colour
- Black, Silver
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Brand
- ISY
- Category
- PC/Workstation Barebones
- Model
- NUC 6H
- Part numbers
- ISYNUC6I5H-BASE, ISYNUC6HI304120NOS, ISYNUC6HI304240NOS, ISYNUC6HI308120NOS, ISYNUC6HI308240NOS, ISYNUC6HI504120NOS +4 more
- EAN / UPC
- 8055681886087, 8055681886032, 8055681886056, 8055681886049 +6 more
- Also known as
- ISY NUC 6H UCFF Black, Silver i3-6100U BGA 1356 2.3 GHz
Specifications
102 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 6th gen Intel® Core™ i3 |
| Processor model | i3-6100U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 2.3 GHz |
| Processor lithography | 14 nm |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Skylake |
| Processor series | Intel Core i3-6100 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1866,2133 MHz |
| Supported memory types | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive capacity | 120 GB |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | M.2, Serial ATA III |
| Number of storage drives supported | 2 |
| RAID levels | 0, 1 |
| Card reader integrated | Yes |
| Compatible memory cards | SDHC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 520 |
| Maximum graphics card memory | 1700 MB |
Performance
| Specification | Value |
|---|---|
| Processor socket | BGA 1356 |
| Number of processors supported | 1 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.1 |
| Near Field Communication (NFC) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4b |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPort version | 1.2 |
| Mini DisplayPorts quantity | 1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | UCFF |
| Product colour | Black, Silver |
| Cooling type | Active |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Conflict-Free | Yes |
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output voltage | 19 V |
| Power supply | 65 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 115 mm |
| Depth | 111 mm |
| Height | 32 mm |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 88180 |
