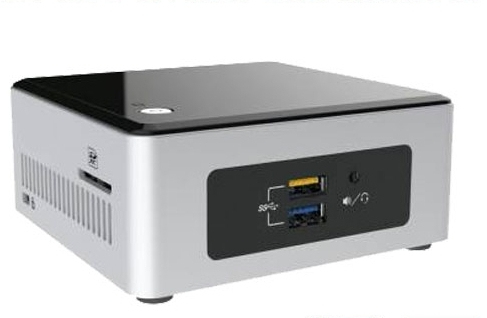

ISY NUC 5H
Model NUC 5HPart no. ISYNUC5P304120NOSEAN 8055681885400
78 specifications
- ProcessorIntel® Celeron®
- TypeMini PC barebone
- ColourBlack, Silver
- Built-in processorYes
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD
Overview
- Processor
- Intel® Celeron®
- Type
- Mini PC barebone
- Colour
- Black, Silver
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD
- Brand
- ISY
- Category
- PC/Workstation Barebones
- Model
- NUC 5H
- Part numbers
- ISYNUC5P304120NOS, ISYNUC5C3H-BASE, ISYNUC5I7H-BASE, ISYNUC5P3H-W10-BASE, ISYNUC5P3H-BASE, ISYNUC5P304240NOS
- EAN / UPC
- 8055681885400, 8055681885370, 8055681882751, 8055681885516 +2 more
- Also known as
- ISY NUC 5H Black, Silver N3050 BGA 1170 1.6 GHz
Specifications
78 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N3050 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.16 GHz |
| Processor frequency | 1.6 GHz |
| Processor lithography | 14 nm |
| L2 cache | 2 MB |
| Thermal Design Power (TDP) | 6 W |
| CPU configuration (max) | 1 |
| Processor codename | Braswell |
| Processor series | Intel Celeron N3000 series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 1 |
| Memory channels | Single-channel |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | NUC |
| Processor socket | BGA 1170 |
| Number of processors supported | 1 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Silver |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Rapid Storage Technology | No |
| Intel Smart Connect Technology | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® OS Guard | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 220 mm |
| Package height | 250 mm |
| Package weight | 2.5 kg |
Other features
| Specification | Value |
|---|---|
| Processor ARK ID | 87257 |
