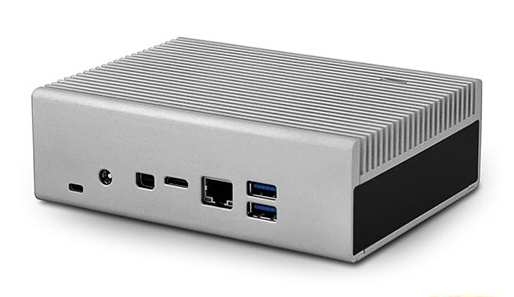

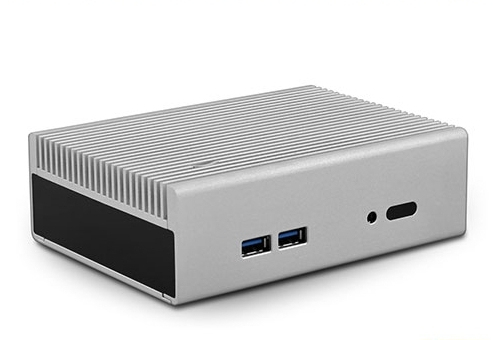

ISY NUC 4S
Model NUC 4SPart no. ISYNUC4SI3-BASESEAN 8055681881464
89 specifications
- ProcessorIntel® Core™ i3
- TypeMini PC barebone
- ColourSilver
- Built-in processorYes
- Memory slots typeSO-DIMM
- Supported storage drive typesSSD
Overview
- Processor
- Intel® Core™ i3
- Type
- Mini PC barebone
- Colour
- Silver
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Supported storage drive types
- SSD
- Brand
- ISY
- Category
- PC/Workstation Barebones
- Model
- NUC 4S
- Part number
- ISYNUC4SI3-BASES
- EAN / UPC
- 8055681881464
- Also known as
- ISY NUC 4S UCFF Silver i3-4010U BGA 1168 1.7 GHz
Specifications
89 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i3 |
| Processor generation | 4th gen Intel® Core™ i3 |
| Processor model | i3-4010U |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor frequency | 1.7 GHz |
| Processor lithography | 22 nm |
| L3 cache | 3 MB |
| Thermal Design Power (TDP) | 15 W |
| CPU configuration (max) | 1 |
| Processor codename | Haswell |
| Processor series | Intel® Core™ i3-4000 Mobile Series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory channels | Dual-channel |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | SSD |
| Storage drive sizes supported | 2.5" |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® HD Graphics 4400 |
Performance
| Specification | Value |
|---|---|
| Motherboard form factor | UCFF |
| Processor socket | BGA 1168 |
| Number of processors supported | 1 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| Mini HDMI ports quantity | 1 |
| HDMI version | 1.4a |
| VGA (D-Sub) ports quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 2.0 |
| Mini PCI Express slots | 2 |
| PCI Express configurations | 2x4, 4x1 |
Design
| Specification | Value |
|---|---|
| Chassis type | UCFF |
| Product colour | Silver |
| Cooling type | Active |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel FDI Technology | No |
| Intel ME Firmware Version | 9.5 |
| Intel Rapid Storage Technology | Yes |
| Intel Smart Connect Technology | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® High Definition Audio (Intel® HD Audio) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Matrix Storage Technology (Intel® MST) | No |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Small Business Advantage (Intel® SBA) | Yes |
| Intel® Smart Cache | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter output voltage | 12 V |
| Power supply | 65 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 220 mm |
| Package height | 250 mm |
| Package weight | 2.5 kg |
