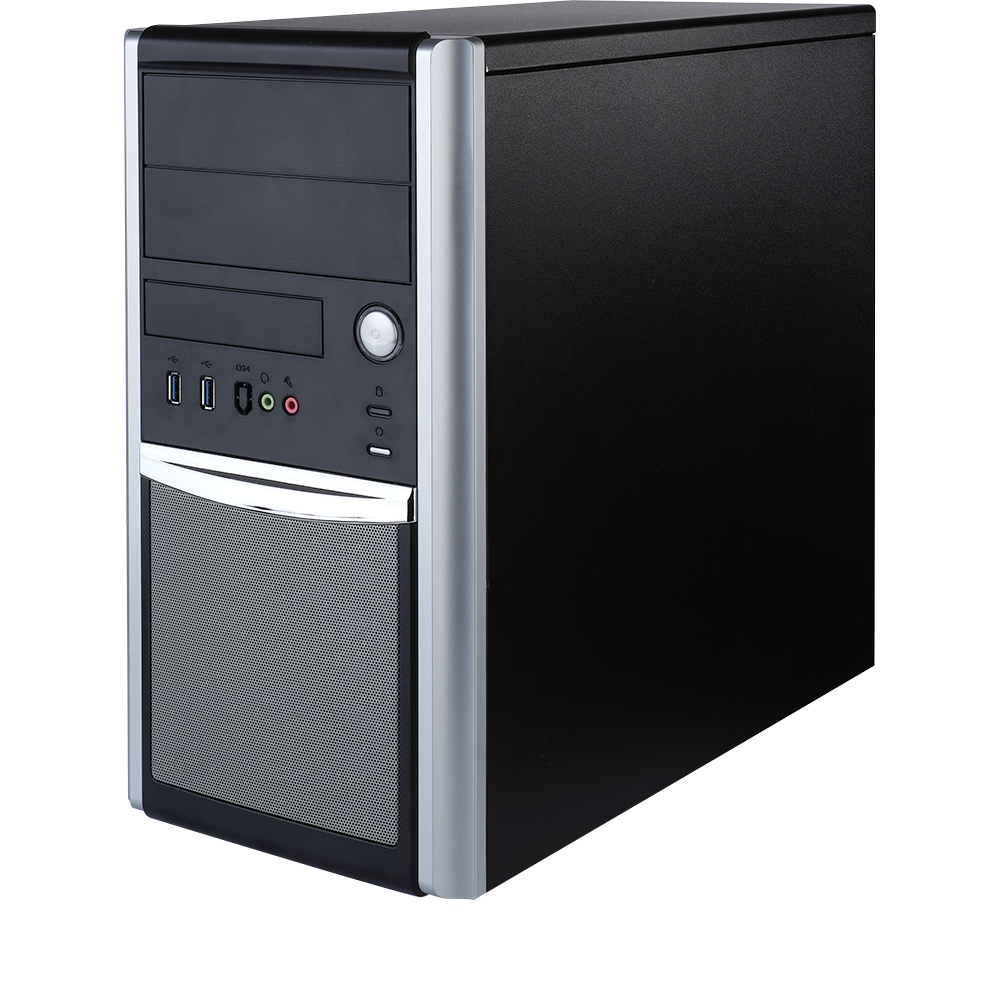

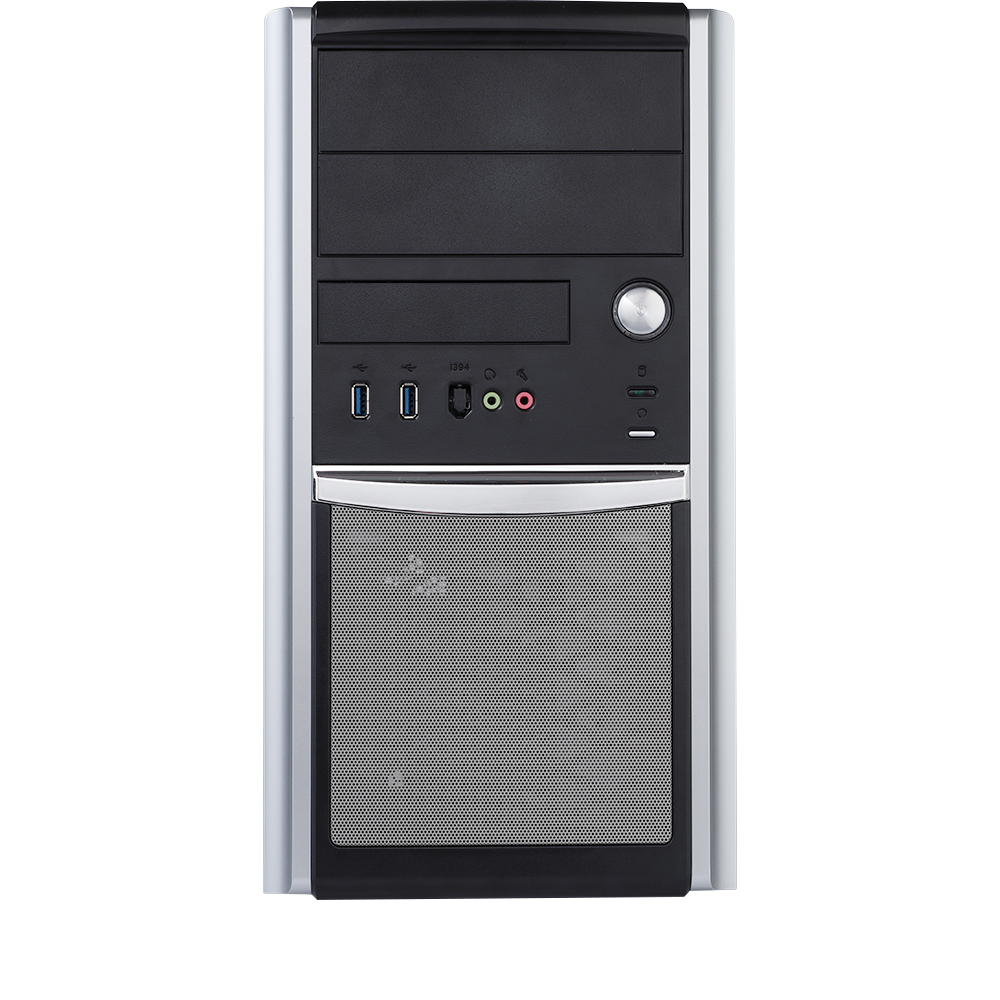

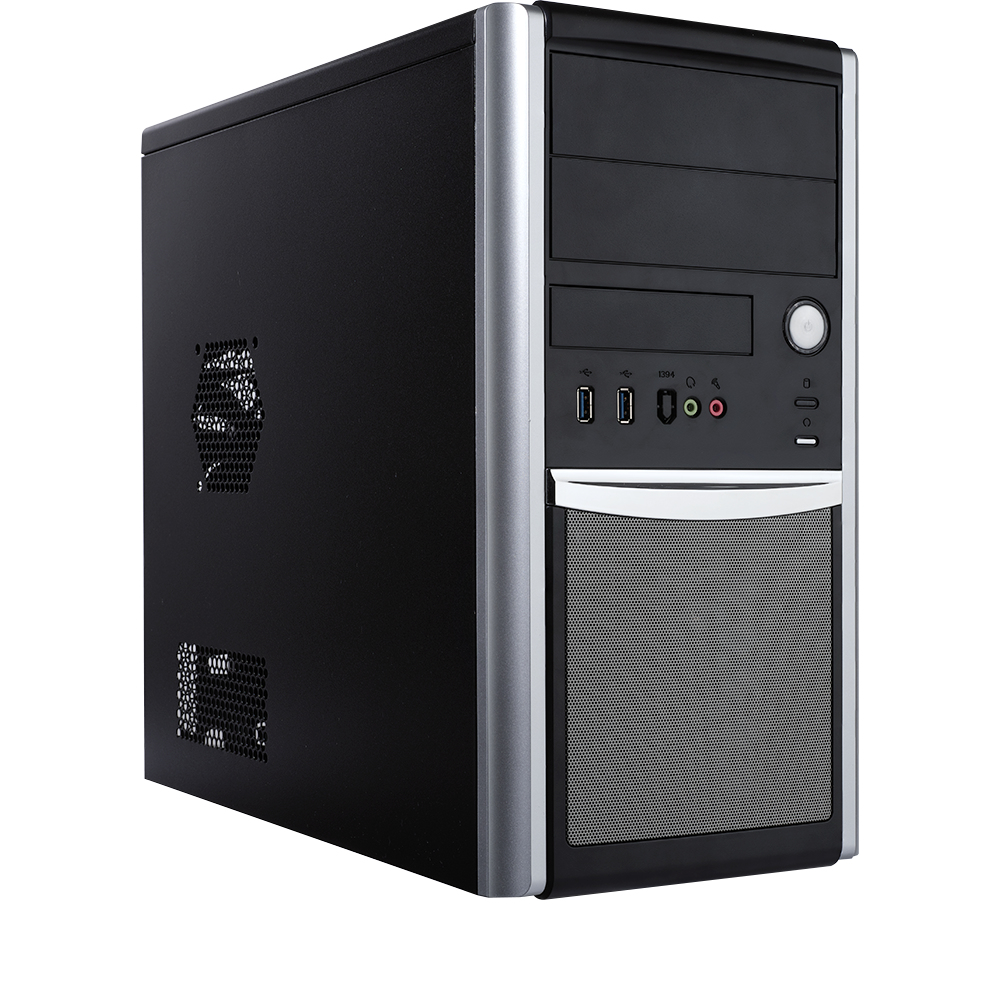

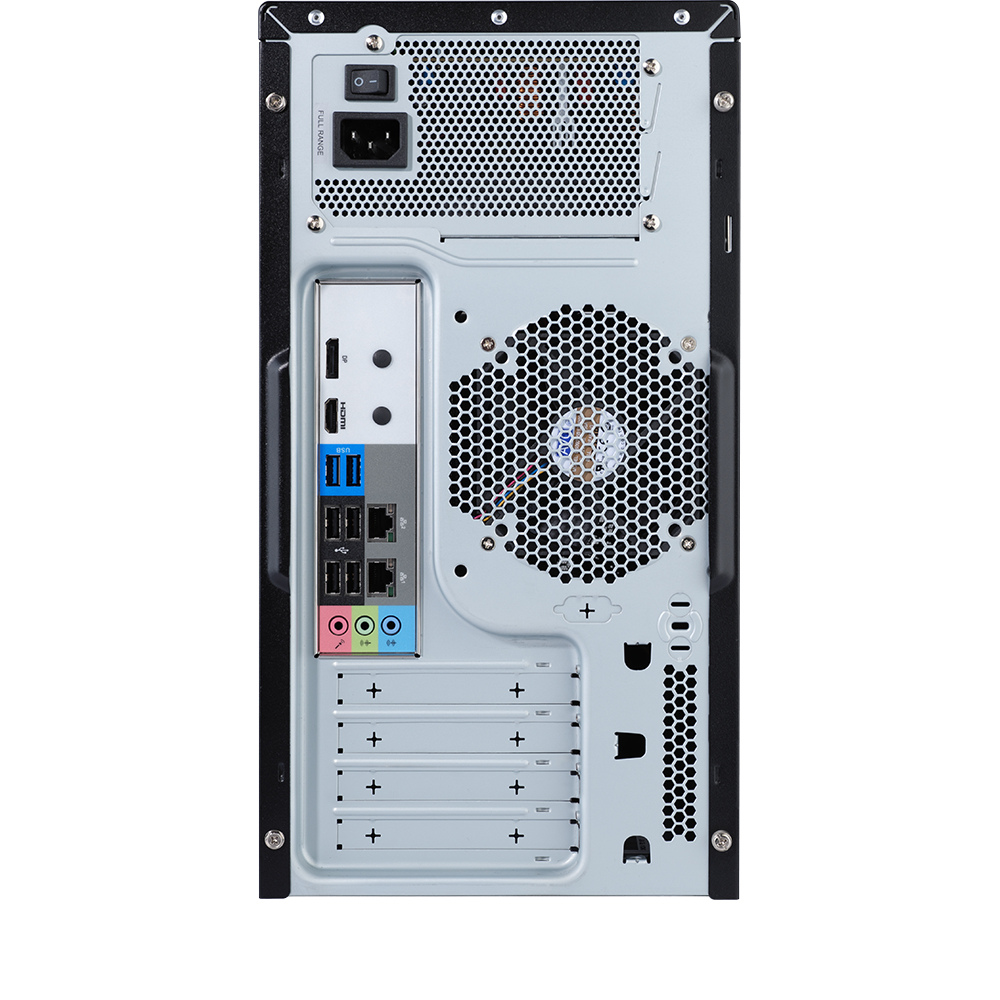

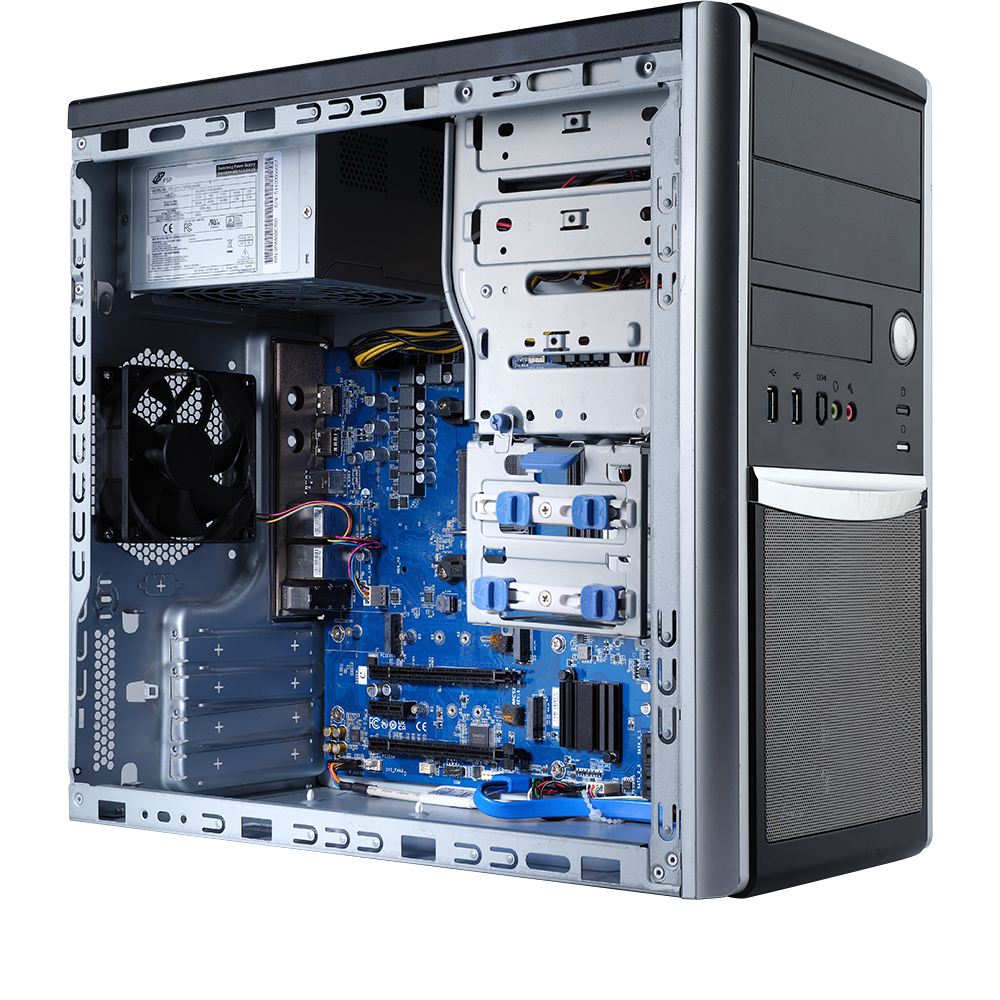

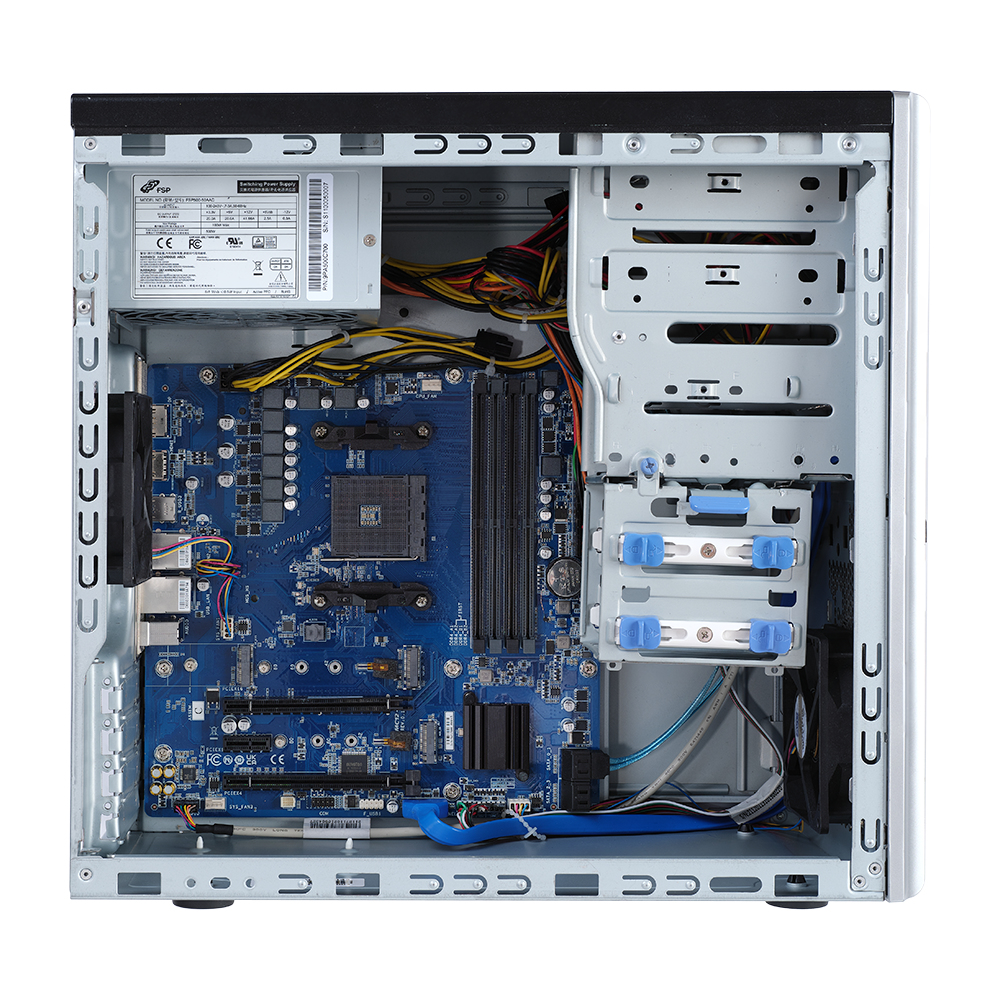

W331-Z00 Black AMD B550 Socket AM4
Model W331-Z00Part no. 6BW331Z00MR-00EAN 4719331601140
55 specifications
- TypeWorkstation barebone
- ColourBlack
- Built-in processorNo
- Memory slots typeDIMM
- Supported storage drive typesHDD & SSD
- Motherboard chipsetAMD B550
Overview
- Type
- Workstation barebone
- Colour
- Black
- Built-in processor
- No
- Memory slots type
- DIMM
- Supported storage drive types
- HDD & SSD
- Motherboard chipset
- AMD B550
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- W331-Z00
- Part number
- 6BW331Z00MR-00
- EAN / UPC
- 4719331601140
- Also known as
- GIGABYTE W331-Z00 Black AMD B550 Socket AM4
Specifications
55 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | No |
Memory
| Specification | Value |
|---|---|
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| ECC | Yes |
| Non-ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 3.5" |
| Number of storage drives supported | 2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | No |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | AMD B550 |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Audio output channels | 7.1 channels |
| Audio chip | Realtek ALC897 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111EPV |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| VGA (D-Sub) ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.2 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0, 4.0 |
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 2 |
| Number of M.2 (M) slots | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Product type | Workstation barebone |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84713000 |
Power
| Specification | Value |
|---|---|
| Power supply type | Internal power supply unit |
| Number of power supply units | 1 |
| Power supply | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 8 - 80% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 20 - 95% |
| Storage temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 375 mm |
| Depth | 370 mm |
| Height | 198 mm |
| Package width | 512 mm |
| Package depth | 324 mm |
| Package height | 503 mm |
Packaging content
| Specification | Value |
|---|---|
| Quick start guide | No |
