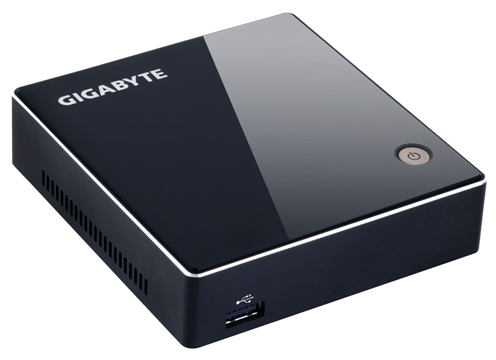

GIGABYTE GB-XM14-1037 PC/workstation barebone Black 1037U Intel® NM70 Express BGA 1023

1.8 GHz

Model GB-XM14-1037EAN 818313017581

79 specifications

Overview

Brand: GIGABYTE
Category: PC/Workstation Barebones
Model: GB-XM14-1037
Part number: GB-XM14-1037
EAN / UPC: 818313017581, 4719331231163
Also known as: GIGABYTE GB-XM14-1037 PC/workstation barebone Black 1037U Intel® NM70 Express BGA 1023 1.8 GHz

79 specifications in 13 groups

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	1037U
Processor cores	2
Processor threads	2
Processor frequency	1.8 GHz
Processor lithography	22 nm
Thermal Design Power (TDP)	17 W
CPU configuration (max)	1
Processor codename	Ivy Bridge
Processor series	Intel Celeron 1000 series for Mobile

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	16 GB
Supported memory clock speeds	1333,1600 MHz
Supported memory types	DDR3-SDRAM

Specification	Value
Card reader integrated	No

Specification	Value
Motherboard chipset	Intel® NM70 Express
Processor socket	BGA 1023
Number of processors supported	1
Compatible processor series	Intel® Celeron®
Supported processor frequency (max)	1.8 GHz
Optical drive type	No

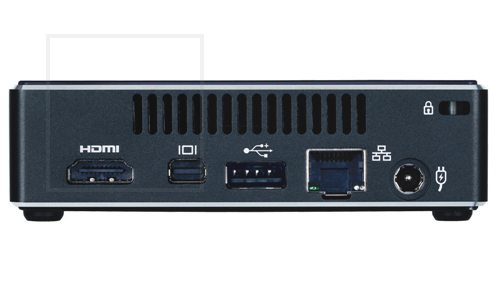

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
DVI port	No
Mini DisplayPorts quantity	1
Microphone in	No
Combo headphone/mic port	No
CardBus PCMCIA slot type	No
Ethernet LAN (RJ-45) ports	1
S/PDIF out port	No
DC-in jack	Yes

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Quick Sync Video Technology	No
Intel® Smart Cache	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	No
Thermal Monitoring Technologies	Yes

Specification	Value
Operating system installed	No

Specification	Value
Number of processors installed	1
Dimensions (WxDxH)	29.9 x 107.9 x 114.6 mm
