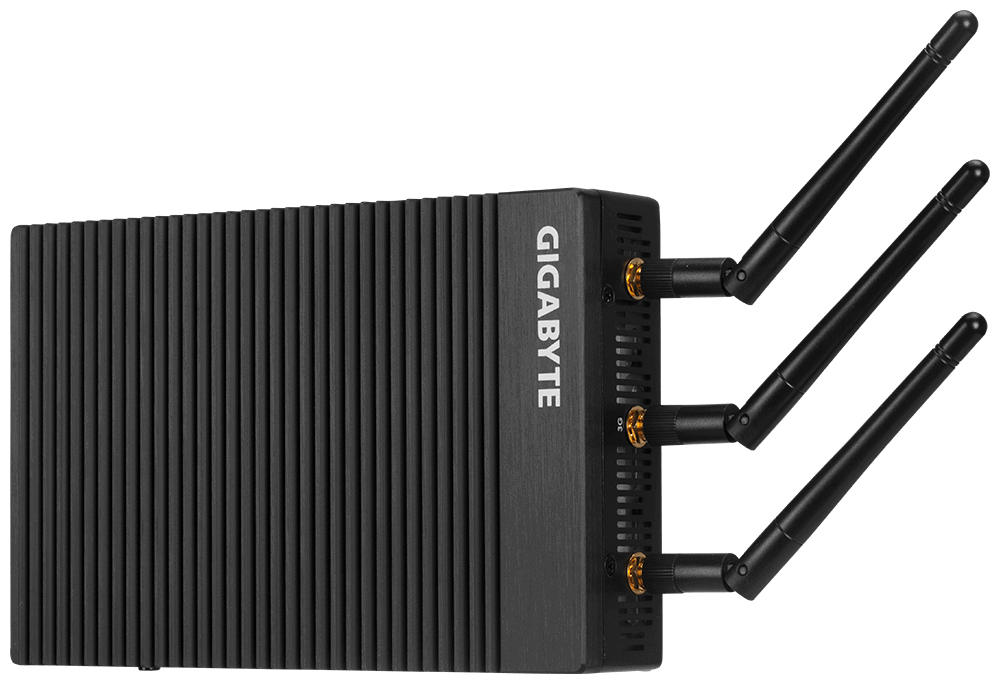

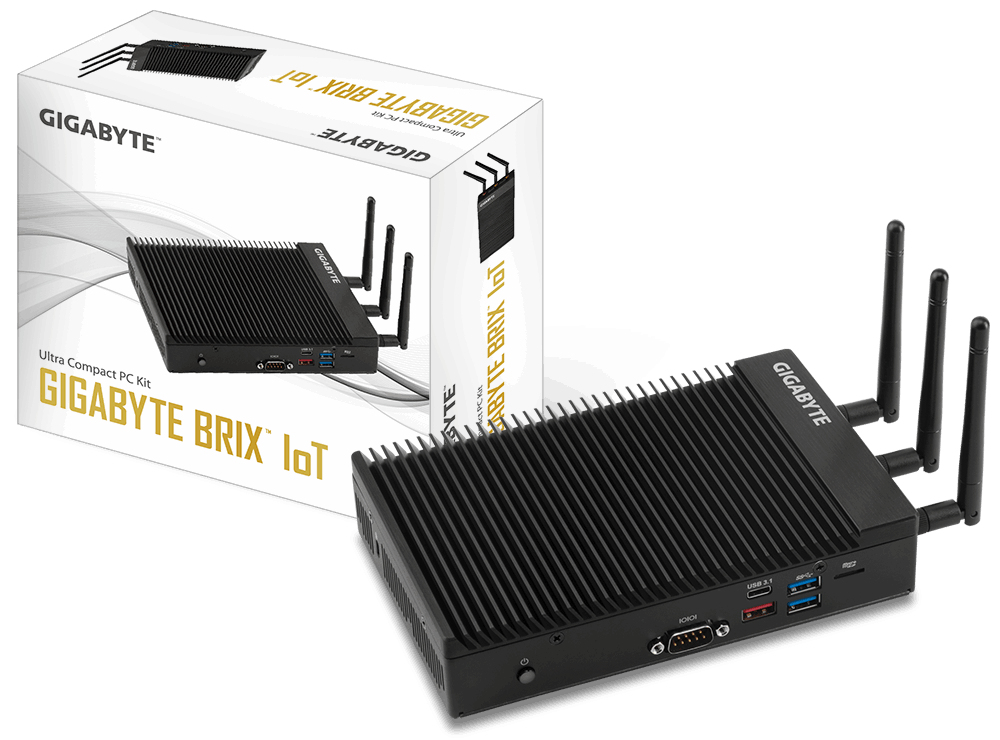

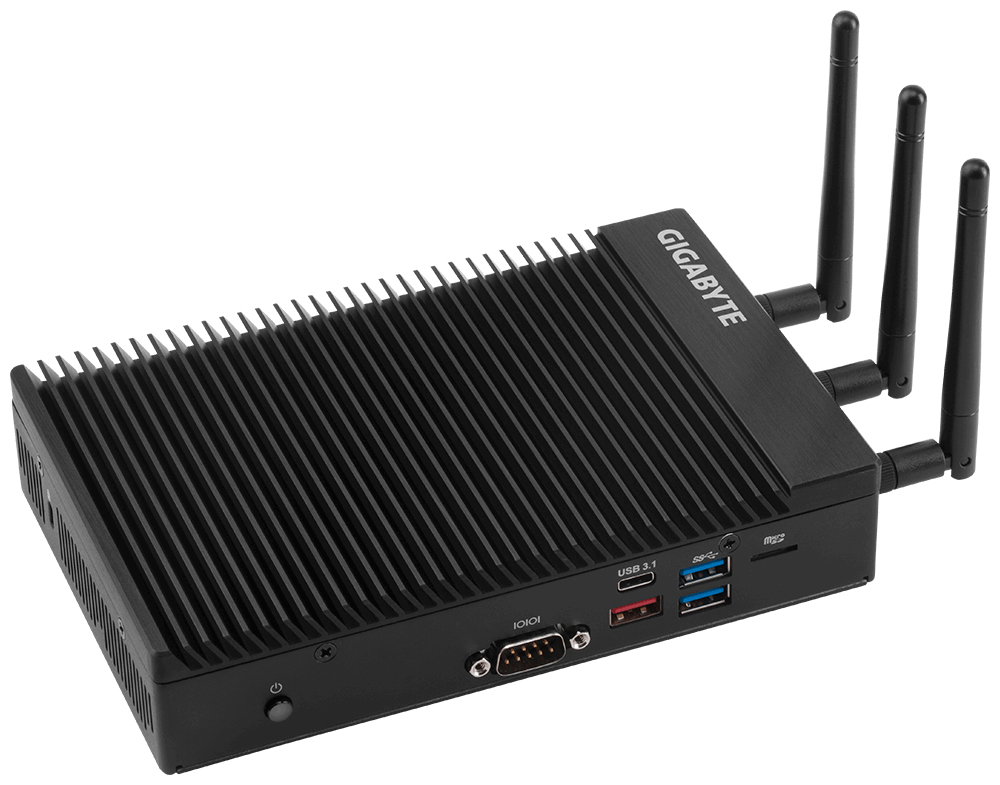

GIGABYTE GB-EKI3M-7100 PC/workstation barebone Black i3-7100U BGA 1356

2.4 GHz

Model GB-EKI3M-7100EAN 889523009826

104 specifications

ProcessorIntel® Core™ i3
TypeMini PC barebone
ColourBlack
Built-in processorYes
Memory slots typeSO-DIMM
Supported storage drive typesSSD

See all specifications

Overview

Processor: Intel® Core™ i3
Type: Mini PC barebone
Colour: Black
Built-in processor: Yes
Memory slots type: SO-DIMM
Supported storage drive types: SSD

Brand: GIGABYTE
Category: PC/Workstation Barebones
Model: GB-EKI3M-7100
Part number: GB-EKI3M-7100
EAN / UPC: 889523009826, 4719331262822
Also known as: GIGABYTE GB-EKI3M-7100 PC/workstation barebone Black i3-7100U BGA 1356 2.4 GHz

Specifications

104 specifications in 16 groups

Processor

Specification	Value
Built-in processor	Yes
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	7th gen Intel® Core™ i3
Processor model	i3-7100U
Processor cores	2
Processor threads	4
Processor frequency	2.4 GHz
Processor lithography	14 nm
Thermal Design Power (TDP)	15 W
CPU configuration (max)	1
Processor codename	Kaby Lake

Memory

Specification	Value
Memory slots type	SO-DIMM
Number of memory slots	2
Maximum internal memory	32 GB
Memory voltage	1.2 V
Supported memory clock speeds	2133 MHz
Supported memory types	DDR4-SDRAM

Storage

Specification	Value
Supported storage drive types	SSD
Storage drive sizes supported	M.2
SSD form factor	M.2
Storage drive interface	M.2
Number of storage drives supported	1
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)

Graphics

Specification	Value
On-board graphics card	Yes
Graphics card family	Intel
On-board graphics card model	Intel® HD Graphics 620
Number of displays supported	2

Performance

Specification	Value
Processor socket	BGA 1356
Number of processors supported	1
Supported processor frequency (max)	2.4 GHz
Trusted Platform Module (TPM)	Yes
Trusted Platform Module (TPM) version	2.0
Audio chip	Realtek ALC255

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Copper ethernet cabling technology	1000BASE-T
Bluetooth	Yes
Bluetooth version	4.2
LAN controller	Intel® I210-AT, Intel I219LM

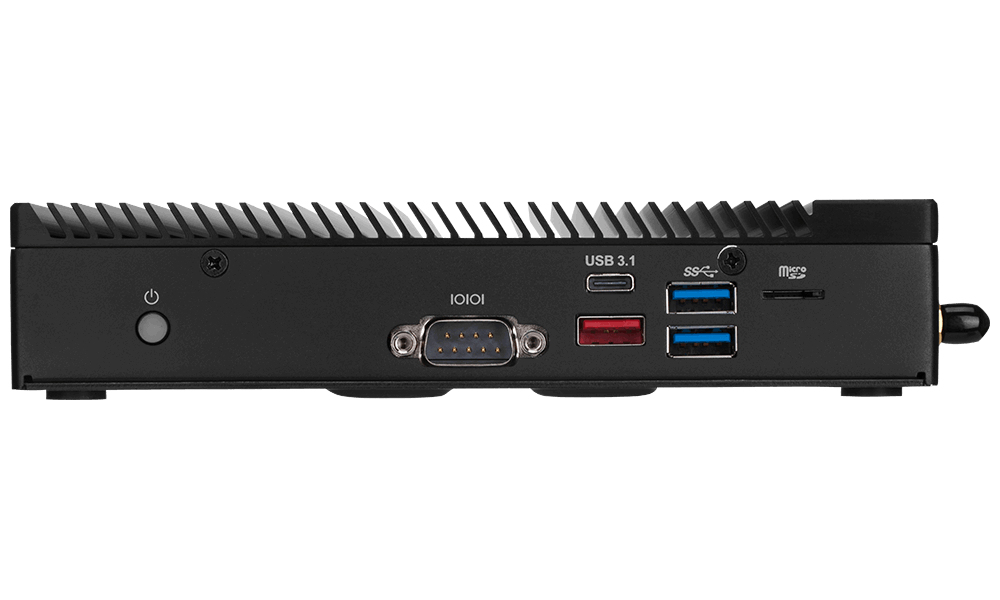

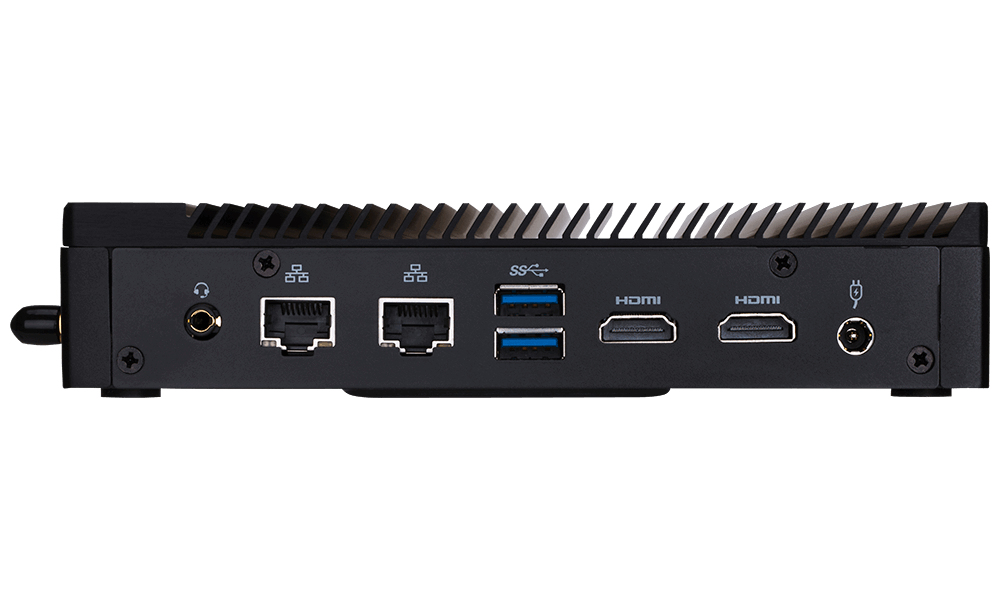

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	2
HDMI version	2.0
Microphone in	Yes
Headphone outputs	1
Combo headphone/mic port	Yes
COM ports quantity	1
Ethernet LAN (RJ-45) ports	2
DC-in jack	Yes

Expansion slots

Specification	Value
PCI Express slots version	3.0
Mini PCI Express slots	1
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1

Design

Specification	Value
Product colour	Black
Cooling type	Passive
LED indicators	Power
VESA mounting	Yes
Panel mounting interface	75 x 75,100 x 100 mm
Product type	Mini PC barebone
Market positioning	Business

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel TSX-NI	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® OS Guard	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	No
Intel® Wireless Display (Intel® WiDi)	Yes
Thermal Monitoring Technologies	Yes

Software

Specification	Value
Windows operating systems supported	Windows 10

Power

Specification	Value
Power supply type	External AC adapter
AC adapter output voltage	19/12 V
AC input voltage	100 - 240 V
Number of power supply units	1
Power supply	90 W

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C

Weight & dimensions

Specification	Value
Width	180 mm
Depth	117 mm
Height	36 mm

Packaging content

Specification	Value
AC adapter included	Yes

Other features

Specification	Value
Processor ARK ID	95442
