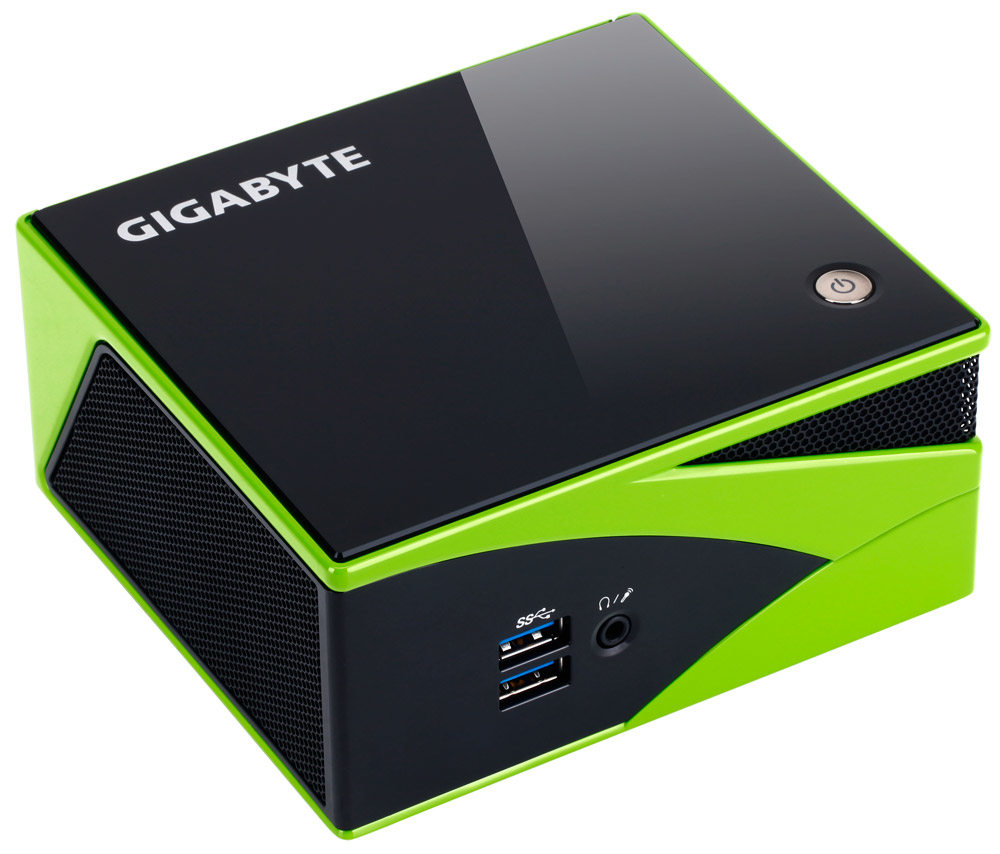

GIGABYTE GB-BXi5G3-760 (rev. 1.0)
Model GB-BXi5G3-760 (rev. 1.0)Part no. GB-BXI5G3-760EAN 4719331241537
83 specifications
- ProcessorIntel® Core™ i5
- GraphicsNVIDIA® GeForce® GTX 760
- TypeMini PC barebone
- OSNo
- ColourBlack, Green
- Built-in processorYes
Overview
- Processor
- Intel® Core™ i5
- Graphics
- NVIDIA® GeForce® GTX 760
- Type
- Mini PC barebone
- OS
- No
- Colour
- Black, Green
- Built-in processor
- Yes
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BXi5G3-760 (rev. 1.0)
- Part number
- GB-BXI5G3-760
- EAN / UPC
- 4719331241537
- Also known as
- GIGABYTE GB-BXi5G3-760 (rev. 1.0) Black, Green i5-4200H Intel® H87 BGA 1364 2.8 GHz
Specifications
83 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4200H |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 3.4 GHz |
| Processor frequency | 2.8 GHz |
| Processor lithography | 22 nm |
| L3 cache | 3 MB |
| Thermal Design Power (TDP) | 47 W |
| CPU configuration (max) | 1 |
| Processor codename | Haswell |
| Processor series | Intel Core i5-4200 Mobile series |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
| Discrete graphics card model | NVIDIA® GeForce® GTX 760 |
| Graphics card memory type | GDDR5 |
| Maximum resolution | 3840 x 2160 pixels |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® H87 |
| Processor socket | BGA 1364 |
| Number of processors supported | 1 |
| Supported processor frequency (max) | 3.4 GHz |
| Audio system | Realtek ALC283 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8111G |

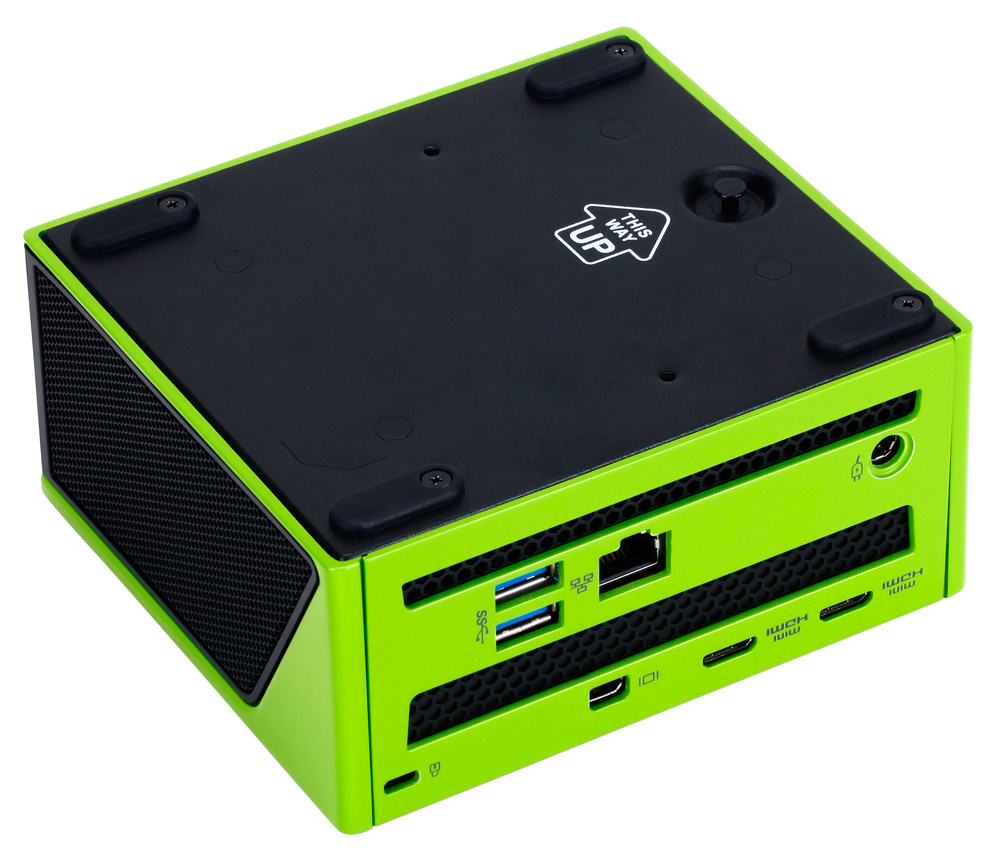

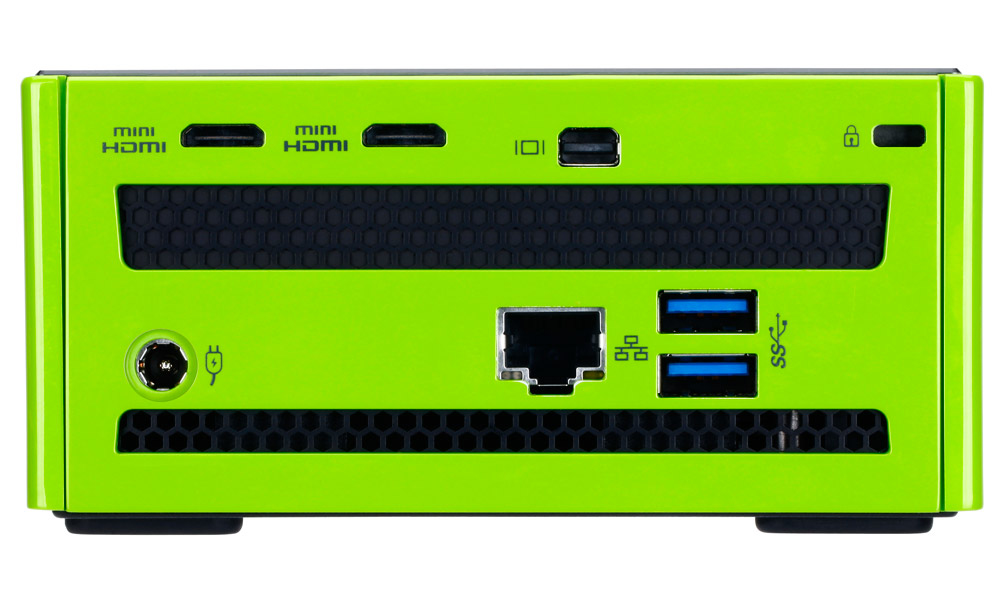

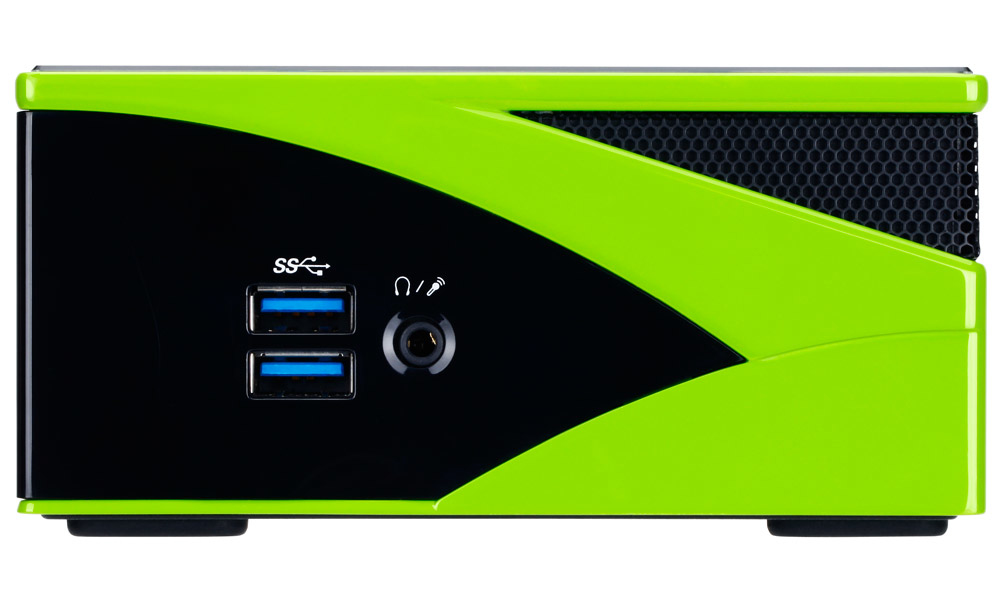

Ports & interfaces
| Specification | Value |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 0 |
| Mini HDMI ports quantity | 2 |
| VGA (D-Sub) ports quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| Mini PCI Express slots | 1 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Green |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Virtualization Technology (Intel® VT) | VT-d, VT-x |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 128 mm |
| Depth | 115.4 mm |
| Height | 59.6 mm |
