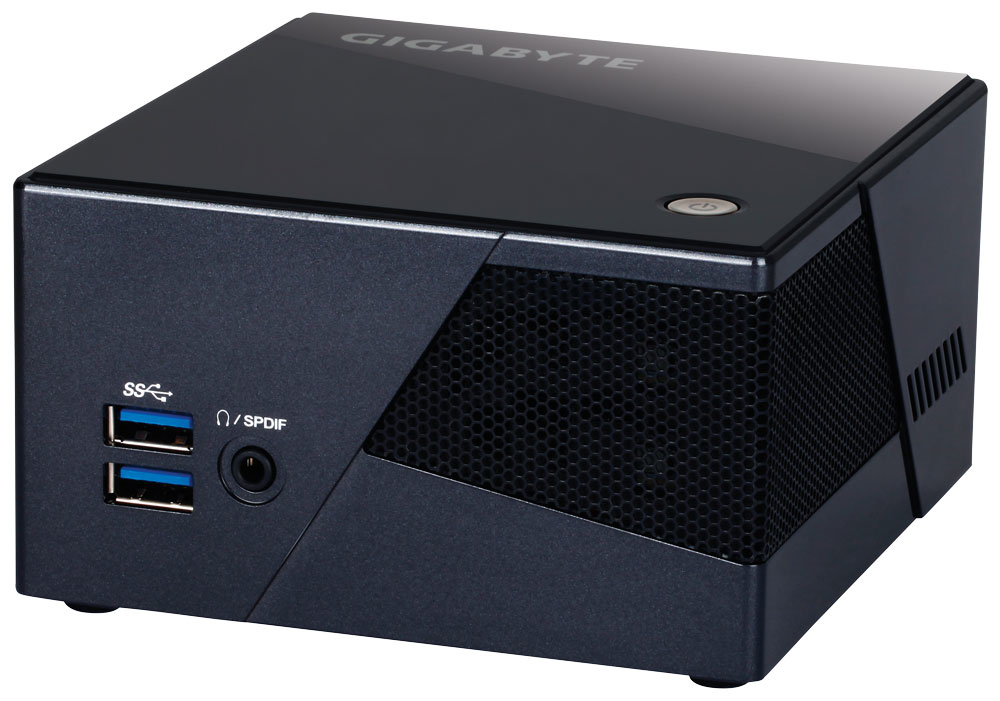

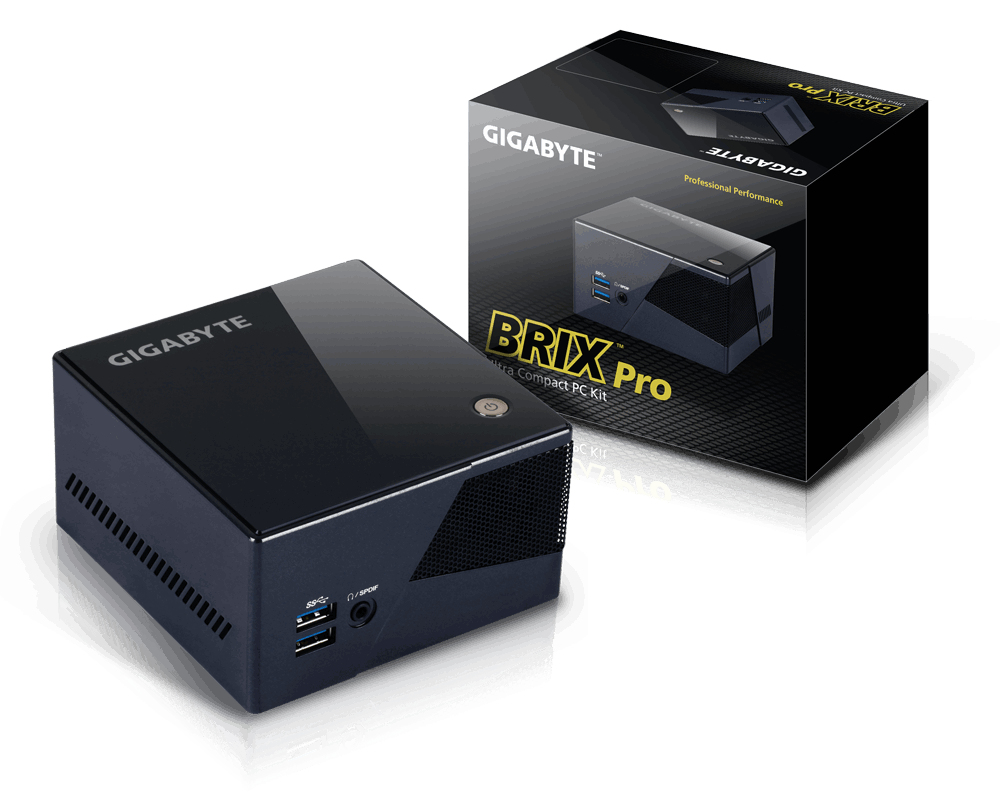

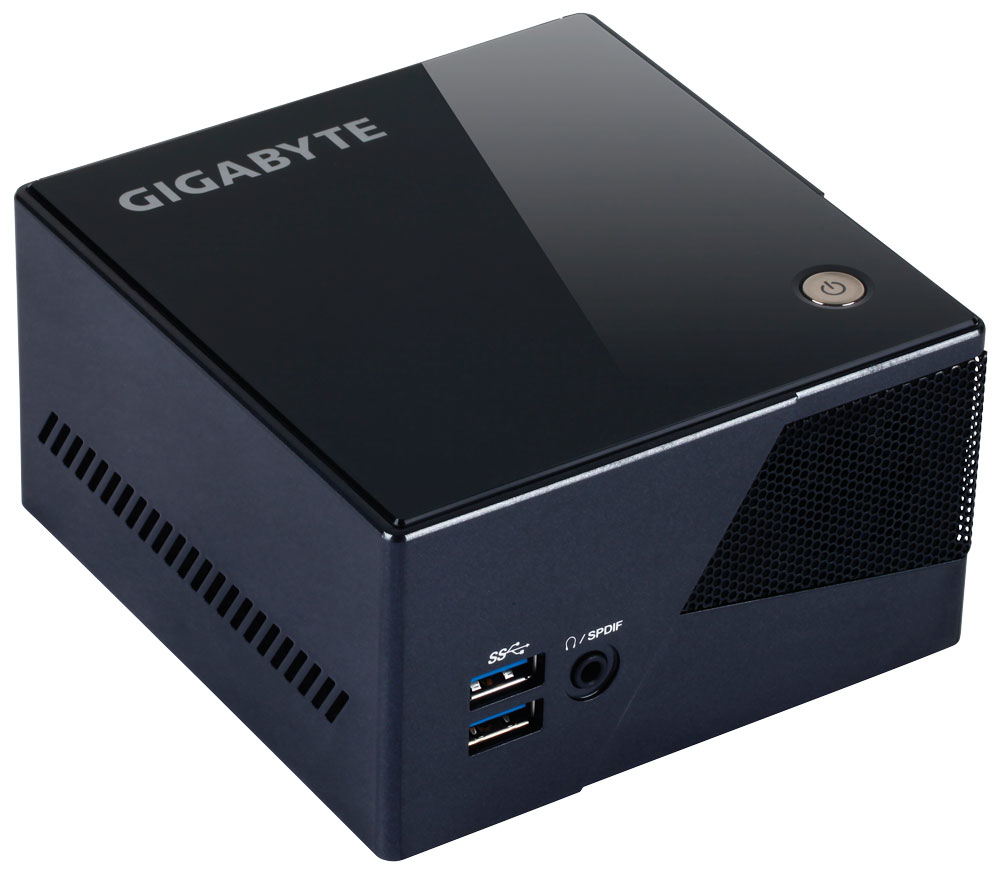

GIGABYTE GB-BXI5-4570R-BW PC/workstation barebone
0.79L sized PC Black i5-4570R Intel® HM87 BGA 1364 2.7 GHz
Model GB-BXI5-4570R-BWEAN 889523003954
89 specifications
- ProcessorIntel® Core™ i5
- TypeMini PC barebone
- ColourBlack
- Built-in processorYes
- Memory slots typeSO-DIMM
- Supported storage drive typesHDD & SSD
Overview
- Processor
- Intel® Core™ i5
- Type
- Mini PC barebone
- Colour
- Black
- Built-in processor
- Yes
- Memory slots type
- SO-DIMM
- Supported storage drive types
- HDD & SSD
- Brand
- GIGABYTE
- Category
- PC/Workstation Barebones
- Model
- GB-BXI5-4570R-BW
- Part number
- GB-BXI5-4570R-BW
- EAN / UPC
- 889523003954
- Also known as
- GIGABYTE GB-BXI5-4570R-BW PC/workstation barebone 0.79L sized PC Black i5-4570R Intel® HM87 BGA 1364 2.7 GHz
Specifications
89 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 4th gen Intel® Core™ i5 |
| Processor model | i5-4570R |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.2 GHz |
| Processor frequency | 2.7 GHz |
| Processor lithography | 22 nm |
| Thermal Design Power (TDP) | 65 W |
| CPU configuration (max) | 1 |
| Processor codename | Crystal Well |
Memory
| Specification | Value |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 16 GB |
| Memory voltage | 1.35 V |
| Supported memory clock speeds | 1333,1600,1866 MHz |
| Supported memory types | DDR3L-SDRAM |
Storage
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5" |
| Storage drive interface | Serial ATA III, mSATA |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel® Iris™ Pro Graphics 5200 |
Performance
| Specification | Value |
|---|---|
| Motherboard chipset | Intel® HM87 |
| Processor socket | BGA 1364 |
| Number of processors supported | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| LAN controller | Realtek RTL8111H |

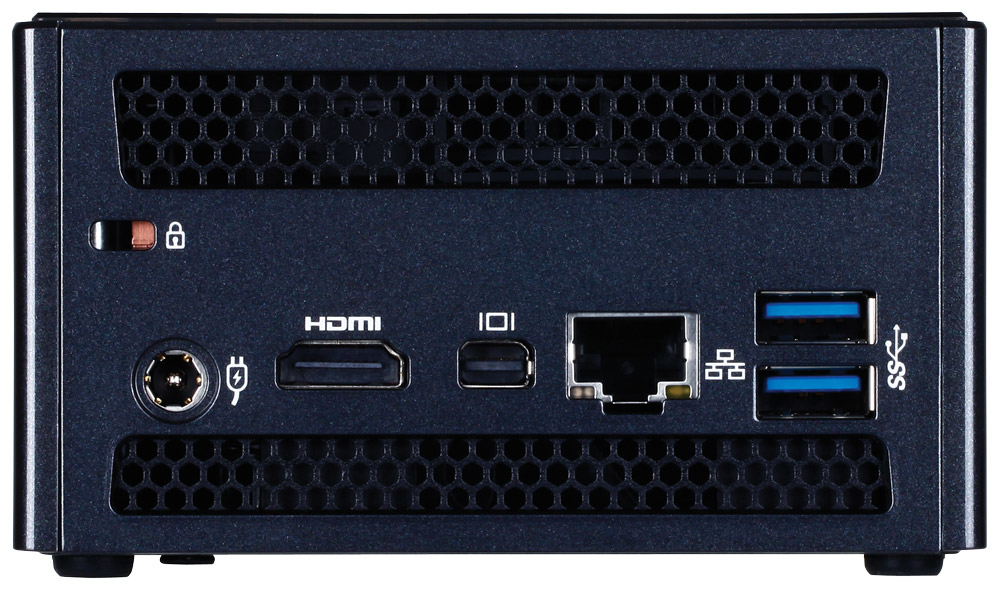

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 0 |
| Mini DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express slots version | 3.0 |
| PCI Express configurations | 1x16, 2x8, 1x8+2x4 |
Design
| Specification | Value |
|---|---|
| Chassis type | 0.79L sized PC |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Product type | Mini PC barebone |
Processor special features
| Specification | Value |
|---|---|
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel FDI Technology | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® InTru™ 3D Technology | Yes |
| Intel® Insider™ | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® OS Guard | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Secure Key | Yes |
| Intel® Smart Cache | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Wireless Display (Intel® WiDi) | Yes |
| Thermal Monitoring Technologies | Yes |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
Power
| Specification | Value |
|---|---|
| Power supply type | External AC adapter |
| AC adapter output current | 7.1 A |
| AC adapter output voltage | 19 V |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 111.4 mm |
| Depth | 114.4 mm |
| Height | 62 mm |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
What people say
Reviews & ratings
GIGABYTE GB-BXI5-4570R-BW PC/workstation barebone
No reviews yet
Be the first to tell others how GIGABYTE GB-BXI5-4570R-BW PC/workstation barebone works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare GIGABYTE GB-BXI5-4570R-BW PC/workstation barebone

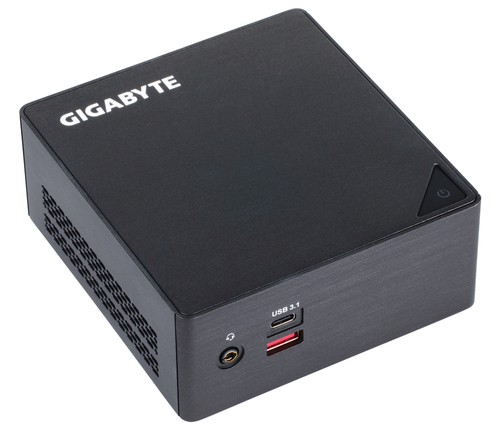

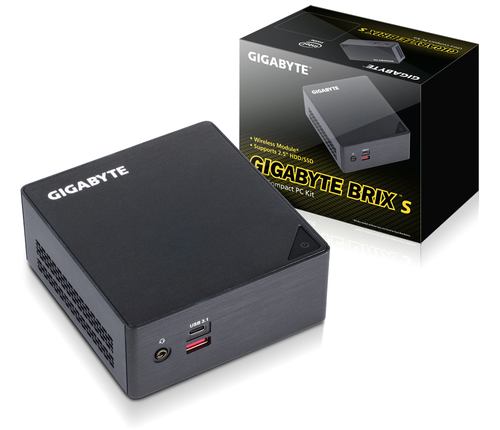

All pc/workstation barebones comparisons- GIGABYTE GB-BXI5-4570R-BW PC/workstation barebone vsGIGABYTE GB-BSi3HAL-6100 Black i3-6100U BGA 1356Compare specs
